8141C67.03A005

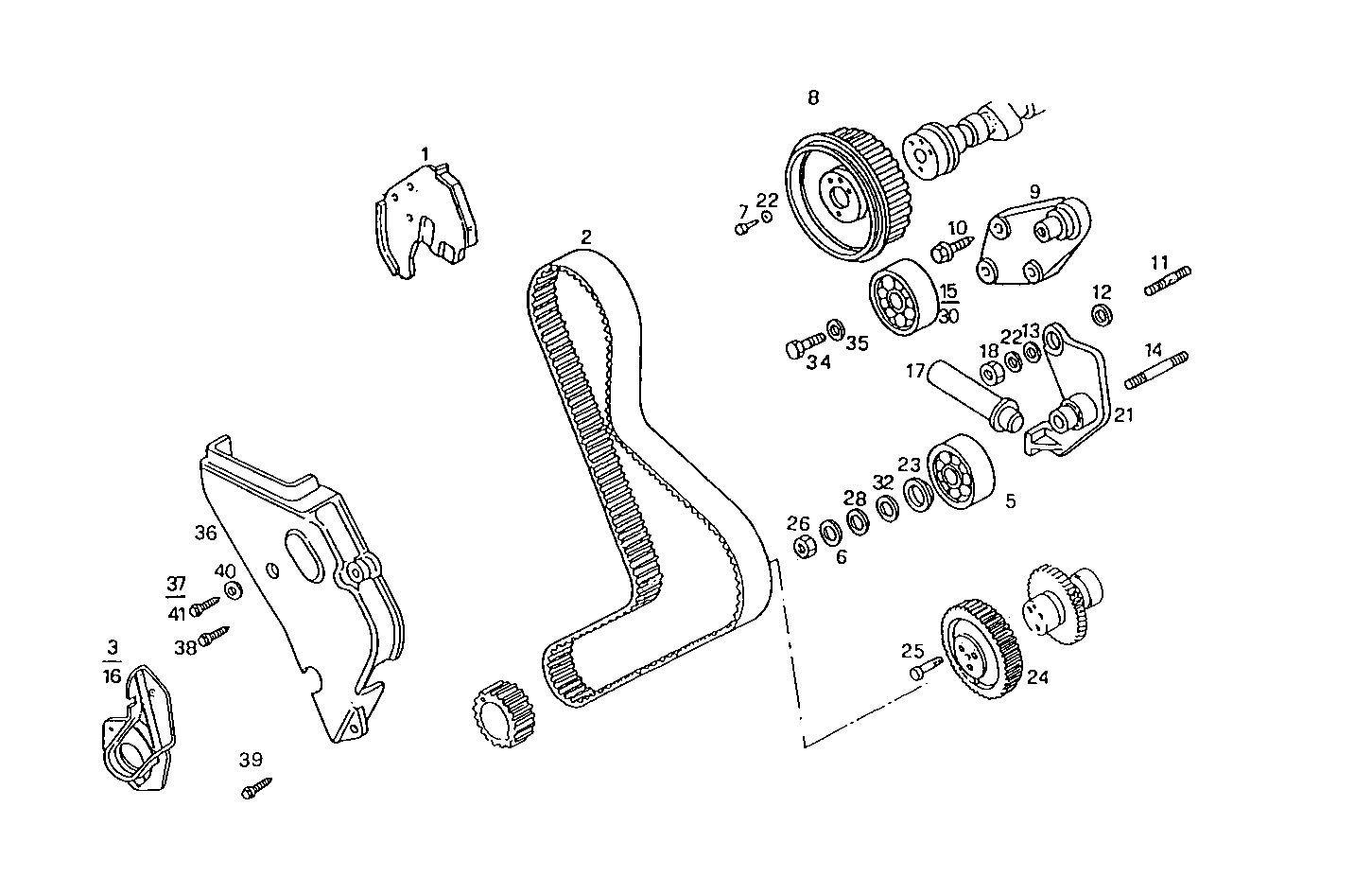

1000.080 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 98475847 PROTECTION [from 1815310]
2 98419390 TIMING BELT
3 98474997 COVER BOTTOM [up to 2263443]
5 2992485 ENGINE BEARINGS Ø25X67 MM SP=34 MM
6 17798374 SPRING WASHER Ø10,2X18,1 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 99454876 CAMSHAFT PINION MIBA
9 98490152 SUPPORT [from 1815310]
10 16586524 HEXAGON BOLT M8X30 MM
11 13517021 STUD M8X25 MM
12 4719078 SPACER RIV-SKF [up to 1173277]
13 12646721 WASHER Ø8X20 MM
14 7301674 STUD
15 99432547 ENGINE BEARINGS
16 99455320 COVER BOTTOM [from 2263444]
17 4279745 BELT TENSIONER
18 17037931 HEXAGON NUT M8X1,25
21 4849127 SUPPORT [from 1173278]
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 7300035 SPACER RIV-SKF
24 98415211 INJ.PUMP DRIV.GEA MIBA
25 14337521 LOCKING SCREW M12X1,25X30 MM
26 17038221 HEXAGON NUT M10
28 17095104 WASHER Ø10X21X2 MM
30 99461357 ENGINE BEARINGS Ø25X67 MM SP=34 MM
32 98479895 SPACING BAR [from 1832166]
34 16288424 HEXAGON BOLT M10X1,25X25 MM
35 99447327 SPACER SP=5 MM [from 1832166]
36 99445161 COVER [from 1815310]
37 99485223 HEXAGON BOLT M6X70 MM
38 16585924 HEXAGON BOLT M6X25 MM
39 16597224 HEXAGON BOLT M6X18 MM
40 12647724 WASHER Ø6X21 MM SP=1 MM
41 99476777 HEXAGON BOLT M6X40 MM [up to 2290030]
