8141C67.03A005

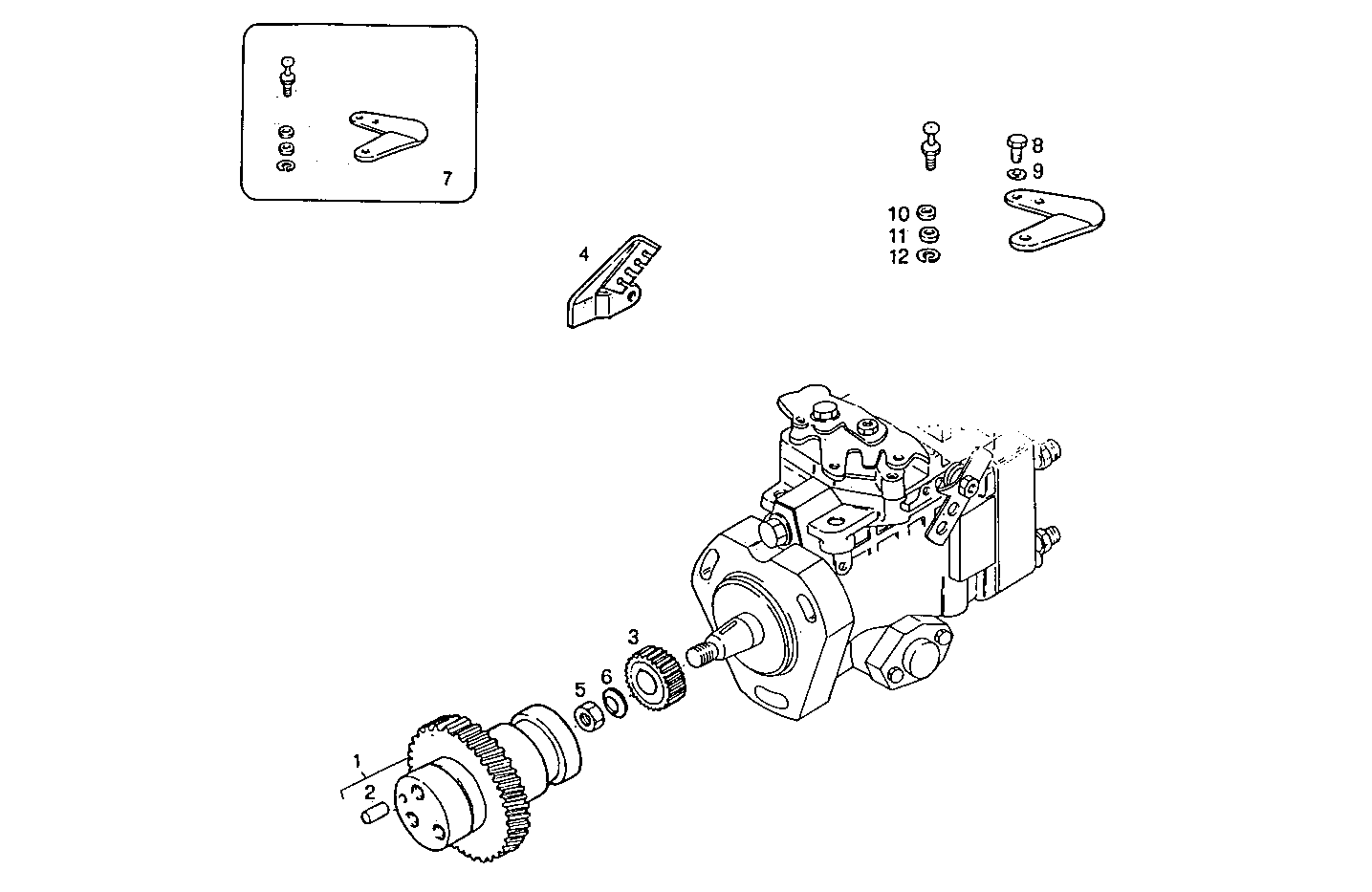

1410.085 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99483335 | INJECT.PUMP SPIND ASSY |
| 2 | 10335910 | PARALLEL PIN |
| 3 | 4715877 | GEAR |
| 4 | 98425990 | RETAINER [from 1394976] |
| 5 | 7300343 | NUT |
| 6 | 759275 | WASHER Ø12,2X17,9 SP=3,2 |
| 7 | 98425989 | LEVER ASSY [from 1394976] |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 10 | 12544271 | SPRING WASHER Ø6X11 MM |
| 11 | 14488601 | WASHER Ø6 MM |
| 12 | 17087174 | SPRING LOCKWASHER Ø5 MM |
