8141C67.03A005

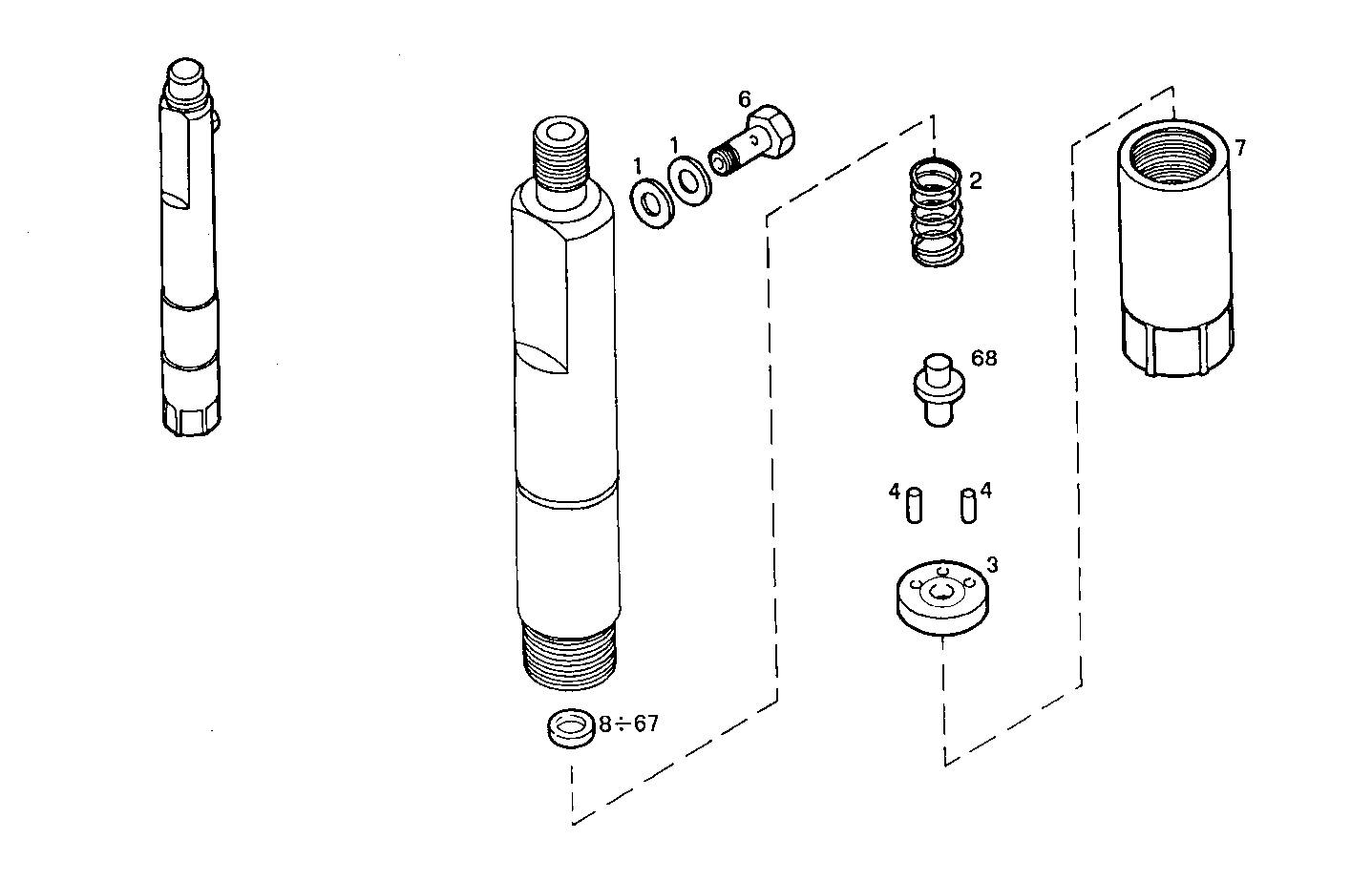

1430.054 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
1118641 |
WASHER Ø6X10 MM |
|
2 |
42530495 |
SPRING |
|
3 |
42530496 |
CENTERING RING |
|
4 |
9982960 |
PARALLEL PIN |
|
6 |
93190600 |
SCREW CONNECTOR M6 |
|
7 |
9982963 |
FASTENING RING |
|
8 |
93191720 |
SHIM SP=0,80 MM |
|
9 |
93191722 |
SHIM SP=0,82 MM |
|
10 |
93191724 |
SHIM SP=0,84 MM |
|
11 |
93191726 |
SHIM SP=0,86 MM |
|
12 |
93191728 |
SHIM SP=0,88 MM |
|
13 |
93191730 |
SHIM SP=0,9 MM |
|
14 |
93191732 |
SHIM SP=0,92 MM |
|
15 |
93191734 |
SHIM SP=0,94 MM |
|
16 |
93191736 |
SHIM SP=0,96 MM |
|
17 |
93191738 |
SHIM SP=0,98 MM |
|
18 |
93191740 |
SHIM SP=1 MM |
|
19 |
93191742 |
SHIM SP=1,02 MM |
|
20 |
93191744 |
SHIM SP=1,04 MM |
|
21 |
93191746 |
SHIM SP=1,06 MM |
|
22 |
93191748 |
SHIM SP=1,08 MM |
|
23 |
93191750 |
SHIM SP=1,1 MM |
|
24 |
93191752 |
SHIM SP=1,12 MM |
|
25 |
93191754 |
SHIM SP=1,14 MM |
|
26 |
93191756 |
SHIM SP=1,16 MM |
|
27 |
93191758 |
SHIM SP=1,18 MM |
|
28 |
93191760 |
SHIM SP=1,2 MM |
|
29 |
93191762 |
SHIM SP=1,22 MM |
|
30 |
93191764 |
SHIM SP=1,24 MM |
|
31 |
93191766 |
SHIM SP=1,26 MM |
|
32 |
93191768 |
SHIM SP=1,28 MM |
|
33 |
93191770 |
SHIM SP=1,3 MM |
|
34 |
93191772 |
SHIM SP=1,32 MM |
|
35 |
93191774 |
SHIM SP=1,34 MM |
|
36 |
93191776 |
SHIM SP=1,36 MM |
|
37 |
93191778 |
SHIM SP=1,38 MM |
|
38 |
93191780 |
SHIM SP=1,4 MM |
|
39 |
93191782 |
SHIM SP=1,42 MM |
|
40 |
93191784 |
SHIM SP=1,44 MM |
|
41 |
93191786 |
SHIM SP=1,46 MM |
|
42 |
93191788 |
SHIM SP=1,48 MM |
|
43 |
93191790 |
SHIM SP=1,5 MM |
|
44 |
93191792 |
SHIM SP=1,52 MM |
|
45 |
93191794 |
SHIM SP=1,54 MM |
|
46 |
93191796 |
SHIM SP=1,56 MM |
|
47 |
93191798 |
SHIM SP=1,58 MM |
|
48 |
93191800 |
SHIM SP=1,6 MM |
|
49 |
93191802 |
SHIM SP=1,62 MM |
|
50 |
93191804 |
SHIM SP=1,64 MM |
|
51 |
93191806 |
SHIM SP=1,66 MM |
|
52 |
93191808 |
SHIM SP=1,68 MM |
|
53 |
93191810 |
SHIM SP=1,7 MM |
|
54 |
93191812 |
SHIM SP=1,72 MM |
|
55 |
93191814 |
SHIM SP=1,74 MM |
|
56 |
93191816 |
SHIM SP=1,76 MM |
|
57 |
93191818 |
SHIM SP=1,78 MM |
|
58 |
93191820 |
SHIM SP=1,8 MM |
|
59 |
93191822 |
SHIM SP=1,82 MM |
|
60 |
93191824 |
SHIM SP=1,84 MM |
|
61 |
93191826 |
SHIM SP=1,86 MM |
|
62 |
93191828 |
SHIM SP=1,88 MM |
|
63 |
93191830 |
SHIM SP=1,9 MM |
|
64 |
93191832 |
SHIM SP=1,92 MM |
|
65 |
93191834 |
SHIM SP=1,94 MM |
|
66 |
93191836 |
SHIM SP=1,96 MM |
|
67 |
93191838 |
SHIM SP=1,98 MM |
|
68 |
93160083 |
WASHER/PLATE |
