8141E00.00

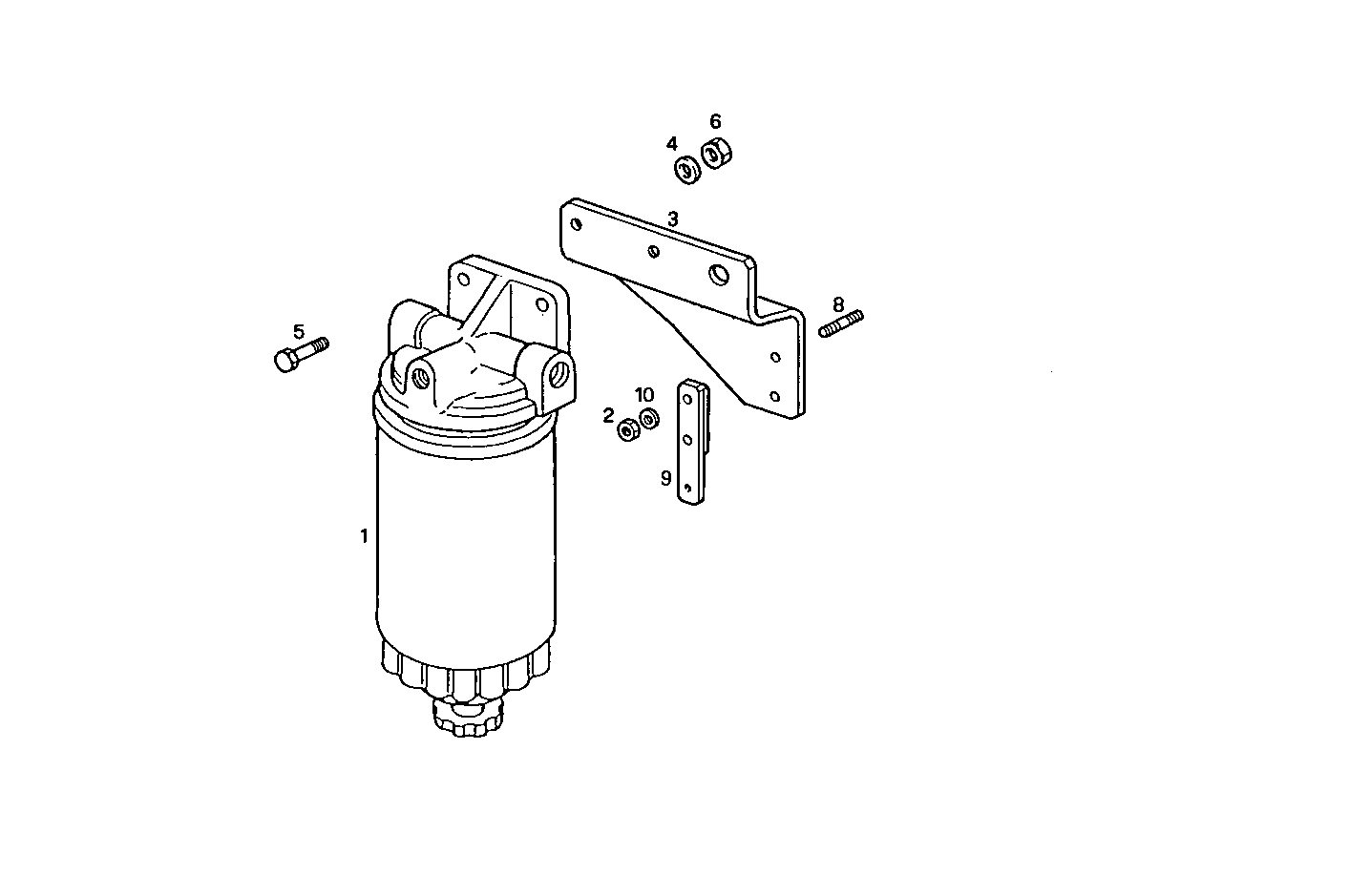

2000.087 FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8105881 | FUEL FILTER ASSY |
| 2 | 17037931 | HEXAGON NUT M8X1,25 |
| 3 | 8011759 | SUPPORT [from 11-91] |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 6 | 17038121 | HEXAGON NUT M10 |
| 8 | 16746924 | STUD M8X35 MM |
| 9 | 8020780 | RETAINER |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
