8141i07.00

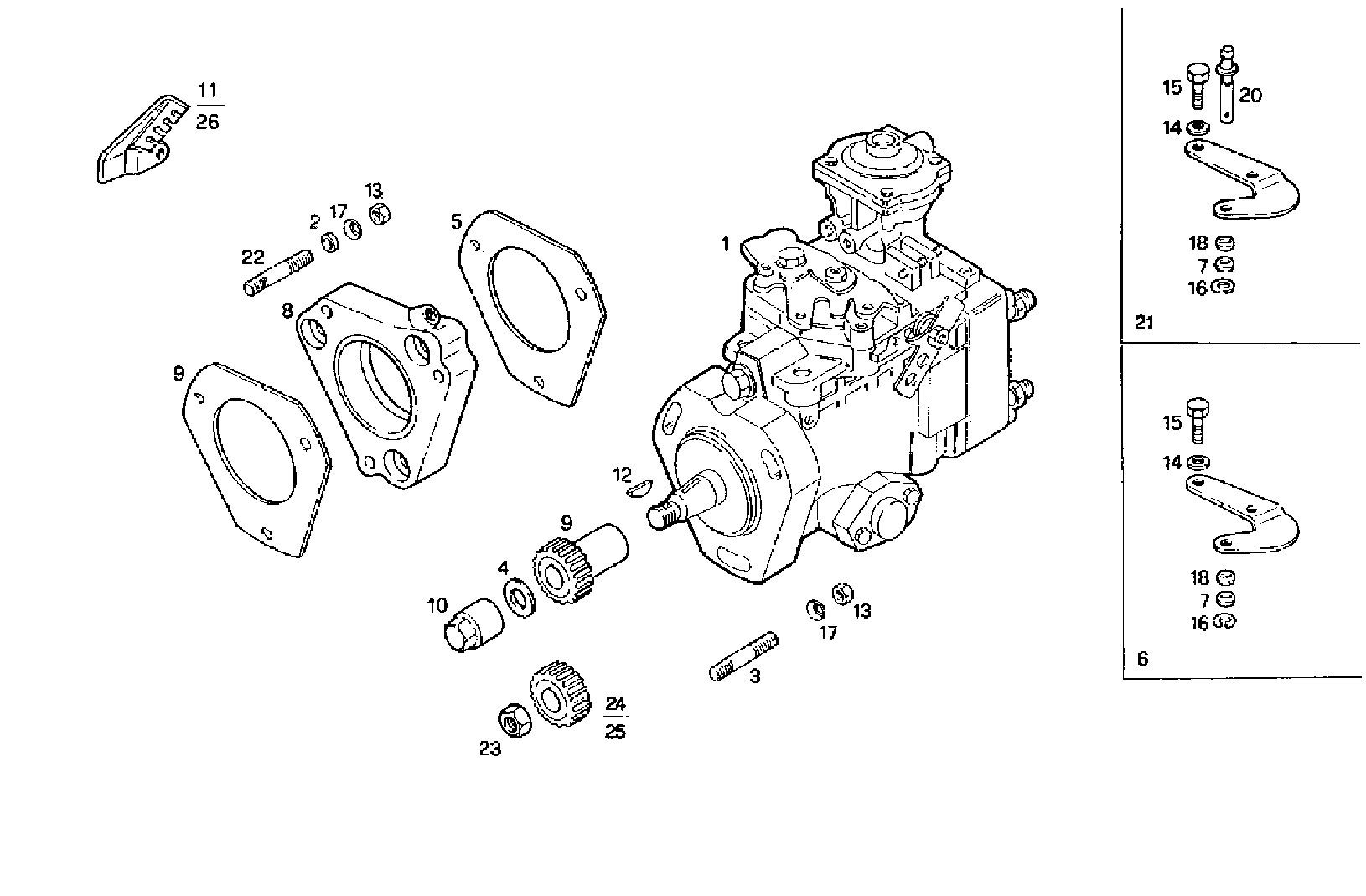

1400.053 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 4812995 DISTRIB.INJ.PUMP ASSY BOSCH
2 4564844 SUPPORT RING
3 4600631 STUD
4 773416 CIRCLIP [up to 1992414]
5 4852642 GASKET
6 98425989 LEVER ASSY [from 1394976]
7 14488601 WASHER Ø6 MM
8 7302045 SUPPORT [up to 1992414]
9 7303344 INJECT.PUMP BUSH [up to 1992414]
10 7303345 NUT [up to 1992414]
11 98425990 RETAINER [from 1394976]
12 10205820 KEY 4X6,5 MM
13 17037931 HEXAGON NUT M8X1,25
14 10571574 SPRING WASHER Ø6 MM
15 10902021 HEXAGON BOLT M6X12 MM
16 11087776 CIRCLIP Ø5 MM
17 17094914 WASHER 8x16
18 12544271 SPRING WASHER Ø6X11 MM
20 93806866 BALL-END PIN
21 8590976 LEVER ASSY [up to 1394975]
22 13543821 STUD M8X16X40
23 17043231 NUT M14X1,5
24 4772022 INJECT.PUMP BUSH 197° 30' [from 1992415]
25 4797226 INJECT.PUMP BUSH 200° 30' [from 1992415]
26 98415798 RETAINER M6X20 MM [up to 1394975]
