8141i07.00

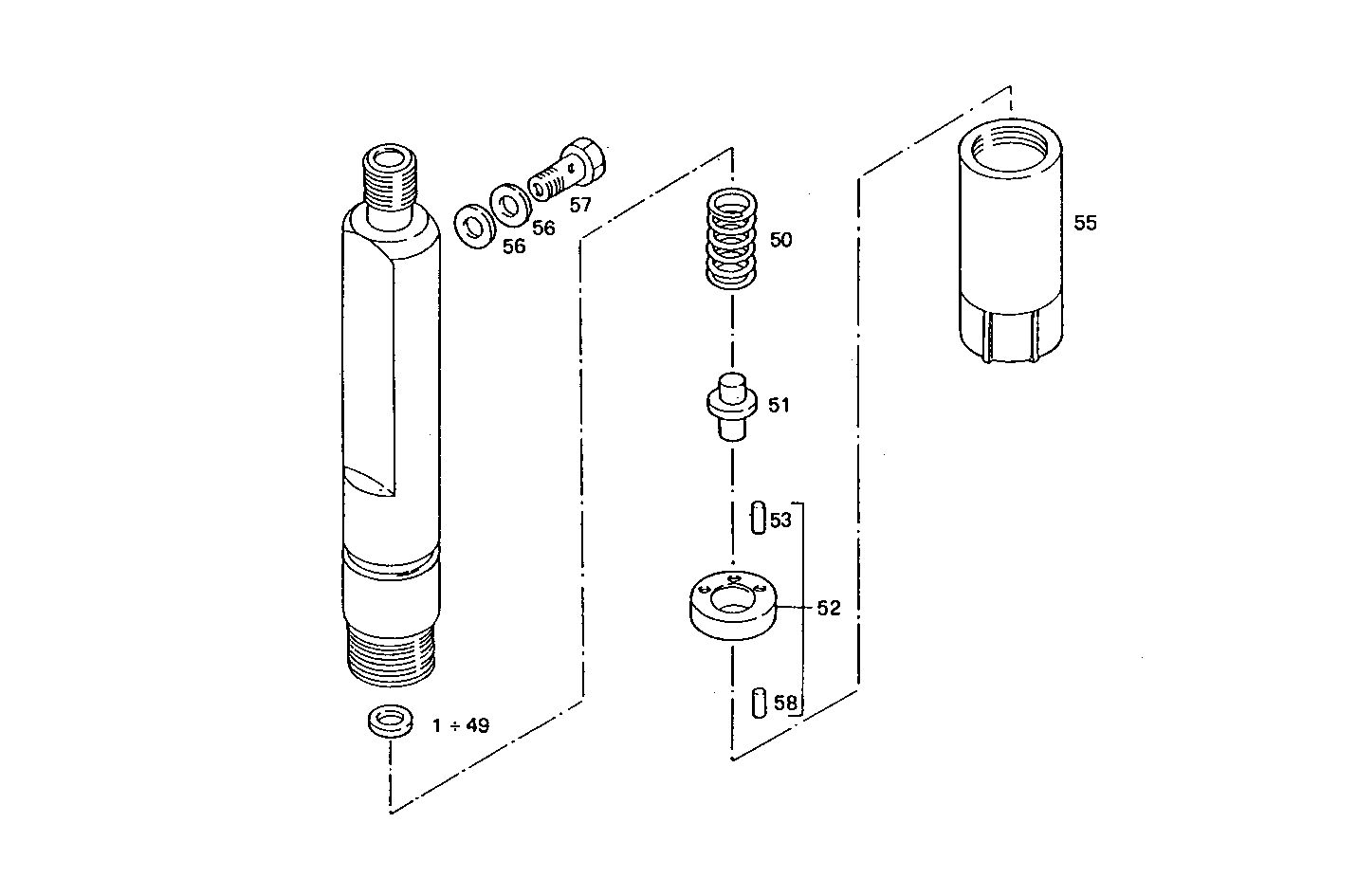

1430.017 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
93194117 |
SHIM SP=1 MM |
|
2 |
79067807 |
SHIM 1,02 MM |
|
3 |
93194703 |
SHIM SP=1,04 MM |
|
4 |
79067809 |
SHIM 1,06 MM |
|
5 |
93194044 |
SHIM SP=1,08 MM |
|
6 |
93194418 |
SHIM SP=1,1 MM |
|
7 |
93194704 |
SHIM SP=1,12 MM |
|
8 |
93194705 |
SHIM SP=1,14 MM |
|
9 |
79067814 |
SHIM 1,16 MM |
|
10 |
93194423 |
SHIM SP=1,18 MM |
|
11 |
93194706 |
SHIM SP=1,2 MM |
|
12 |
79067817 |
SHIM SP=1,22 MM |
|
13 |
93194707 |
SHIM SP=1,24 MM |
|
14 |
93194708 |
SHIM SP=1,26 MM |
|
15 |
93194709 |
SHIM SP=1,28 MM |
|
16 |
93194710 |
SHIM SP=1,3 MM |
|
17 |
79067822 |
SHIM 1,32 MM |
|
18 |
93194594 |
SHIM SP=1,34 MM |
|
19 |
93194595 |
SHIM SP=1,36 MM |
|
20 |
79067825 |
SHIM 1,38 MM |
|
21 |
93194419 |
SHIM SP=1,4 MM |
|
22 |
79067827 |
SHIM SP=1,42 MM |
|
23 |
93194711 |
SHIM SP=1,44 MM |
|
24 |
93194608 |
SHIM SP=1,46 MM |
|
25 |
93194596 |
SHIM SP=1,48 MM |
|
26 |
79067831 |
SHIM SP=1,5 MM |
|
27 |
79067833 |
SHIM SP=1,54 MM |
|
28 |
93194609 |
SHIM SP=1,56 MM |
|
29 |
93194424 |
SHIM SP=1,58 MM |
|
30 |
93194712 |
SHIM SP=1,6 MM |
|
31 |
79067837 |
SHIM 1,62 MM |
|
32 |
79067838 |
SHIM 1,64 MM |
|
33 |
79067839 |
SHIM 1,66 MM |
|
34 |
79067840 |
SHIM 1,68 MM |
|
35 |
93194420 |
SHIM SP=1,7 MM |
|
36 |
79067842 |
SHIM 1,72 MM |
|
37 |
93194425 |
SHIM SP=1,74 MM |
|
38 |
79067844 |
SHIM 1,76 MM |
|
39 |
93194421 |
SHIM SP=1,78 MM |
|
40 |
93194426 |
SHIM SP=1,8 MM |
|
41 |
79067847 |
SHIM 1,82 MM |
|
42 |
79067848 |
SHIM 1,84 MM |
|
43 |
79067849 |
SHIM 1,86 MM |
|
44 |
79067850 |
SHIM 1,88 MM |
|
45 |
93194422 |
SHIM SP=1,9 MM |
|
46 |
79067852 |
SHIM SP=1,92 MM |
|
47 |
79067853 |
SHIM 1,94 MM |
|
48 |
79067854 |
SHIM 1,96 MM |
|
49 |
79067855 |
SHIM 1,98 MM |
|
50 |
8199969 |
SPRING |
|
51 |
93192016 |
WASHER/PLATE |
|
52 |
9941816 |
CENTERING RING ASSY |
|
53 |
9982960 |
PARALLEL PIN |
|
55 |
7984183 |
FASTENING RING |
|
56 |
1118641 |
WASHER Ø6X10 MM |
|
57 |
93190600 |
SCREW CONNECTOR M6 |
|
58 |
42491772 |
PARALLEL PIN |
