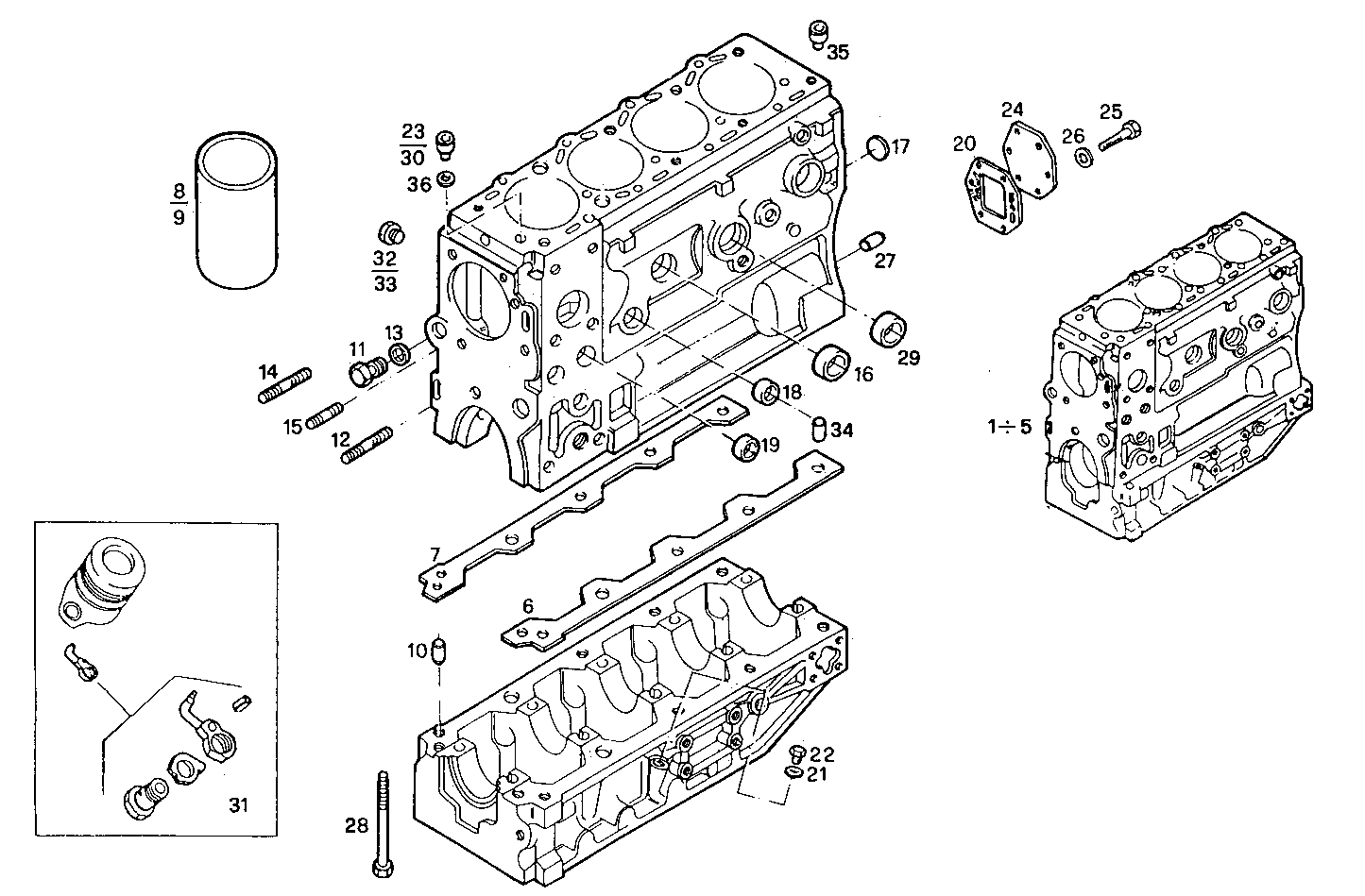

| Item |
Part number |
Description |
|
1 |
4837253 |
CRANKCASE ASSY [up to 1532080] |
|
2 |
98492053 |
CRANKCASE ASSY [up to 1608989] |
|
3 |
98492054 |
CRANKCASE ASSY [up to 1848055] |
|
4 |
99451964 |
CRANKCASE ASSY [up to 19950831] |
|
5 |
1908696 |
CRANKCASE ASSY [from 19950832] |
|
6 |
98432857 |
FLAT ENGINE GASKET LEFT |
|
7 |
98432884 |
FLAT ENGINE GASKET RIGHT |
|
8 |
4860109 |
CYLINDER LINER |
|
9 |
4860110 |
CYLINDERLINER +0.2 |
|
10 |
4279387 |
CENTERING RING |
|
11 |
7303457 |
THREADED PLUG |
|
12 |
7301674 |
STUD |
|
13 |
16508360 |
WASHER 18x22x1,5 |
|
14 |
13450020 |
STUD M10X15X45 MM |
|
15 |
13517021 |
STUD M8X25 MM |
|
16 |
14282870 |
LOCK PLUG �40 MM |
|
17 |
7301976 |
PLUG �16 MM |
|
18 |
14328901 |
LOCK PLUG �25 MM |
|
19 |
14329001 |
LOCK PLUG �28 MM |
|
20 |
98421274 |
FLAT ENGINE GASKET SP=0,8 MM |
|
21 |
10260160 |
SEAL GASKET �10X14 MM SP=1 MM |
|
22 |
11903211 |
LOCK PLUG M12X1,25 |
|
23 |
98418753 |
DOWEL PIN [from 1533081] |
|
24 |
4718627 |
COVER |
|
25 |
16043324 |
HEXAGON BOLT M8X18 MM |
|
26 |
11193871 |
WASHER �8X16X1,4 MM |
|
27 |
7300019 |
DOWEL PIN |
|
28 |
4792169 |
SCREW |
|
29 |
14329401 |
LOCK PLUG �45 MM |
|
30 |
4827687 |
DOWEL PIN [up to 1532080] |
|
31 |
4856607 |
OIL NOZZLE ASSY |
|
32 |
10269601 |
THREADED PLUG M16X1,5 |
|
33 |
10275501 |
LOCK PLUG M12X1,25 |
|
34 |
4724790 |
DOWEL PIN |
|
35 |
98418754 |
DOWEL PIN |
|
36 |
14452981 |
O-RING �9,25 MM SP=1,78 MM |
