8141i07.01

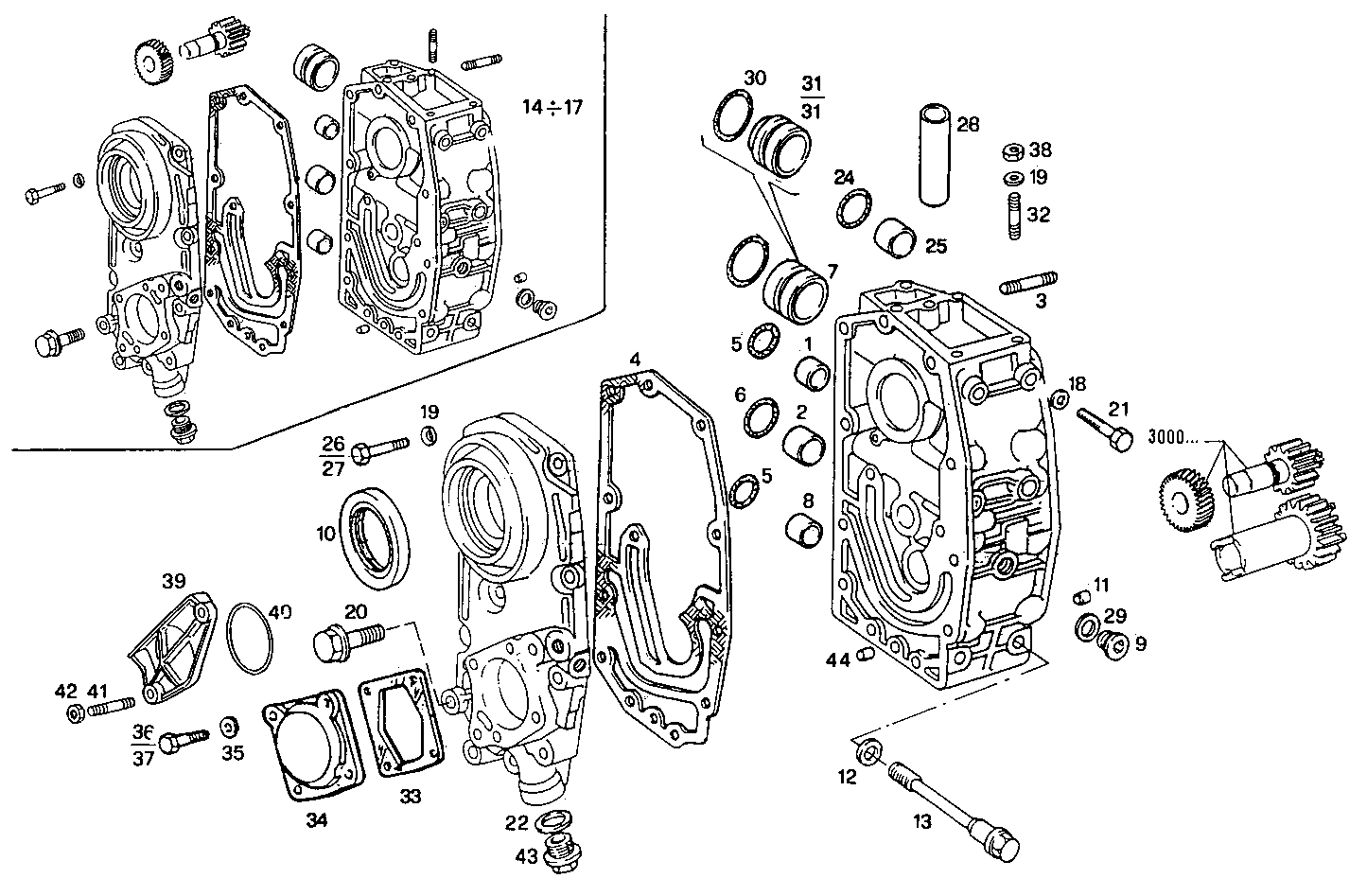

0430.024/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4279407 BUSH Ø18X18 MM
2 4279406 BUSH Ø22,3X12 MM
3 4600631 STUD
4 98421263 FLAT ENGINE GASKET SP=0,5 MM
5 4755221 O-RING Ø17,86 MM SP=2,62 MM
6 4755220 O-RING Ø22,22 MM SP=2,62 MM
7 4720702 BUSH Ø35X49 MM [up to 1608989]
8 4710945 BUSH Ø18X30 MM
9 4731591 THREADED PLUG
10 40100324 SHAFT SEAL Ø50X70 MM SP=10 MM
11 4732685 DOWEL PIN Ø10 MM
12 13550521 WASHER Ø12X24 MM
13 7302294 SCREW
14 7301936 FRONT C.CASE COVER ASSY [up to 1518479]
15 98492155 SUPPORT ASSY [up to 1608989]
16 98491256 SUPPORT ASSY [up to 1931535]
17 99446913 BEARING HOUSING ASSY [from 1931536]
18 10519621 WASHER Ø8,45 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 7300084 SCREW
21 98468138 HEXAGON BOLT M8X1,25X150 MM
22 10263360 SEAL GASKET 20x26x1
23 17283581 O-RING Ø44,12 MM SP=2,62 MM
24 98461178 O-RING Ø46,04 MM SP=3,53 MM
25 98461177 BUSH Ø40X46,2 MM [from 1608990]
26 16606024 SCREW M8X45 MM
27 16605624 HEXAGON BOLT M8X25 MM (8.8)
28 4710958 GUIDE BUSH
29 16508160 WASHER Ø14X18 MM
30 14458881 O-RING SP=2,62 MM
31 98497911 BUSH [from 1608990]
32 13544121 STUD M8X16X55 MM
33 98421305 FLAT ENGINE GASKET [up to 1653272]
34 4782499 COVER FRONT [up to 1653272]
35 17088474 WASHER Ø6X12 MM
36 10903221 HEXAGON BOLT M6X1X40 MM
37 10902421 HEXAGON BOLT M6X20 MM
38 16100815 HEXAGON NUT M8
39 98460651 PTO COVER [up to 1653273]
40 17283880 O-RING Ø48,9 MM SP=2,62 MM
41 13449521 STUD M10X15X25
42 14059411 HEXAGON NUT M10X1,25
43 10305071 LOCK PLUG M20X1,5 [up to ...]
44 98465476 DOWEL PIN Ø8 MM
