8141i07.01

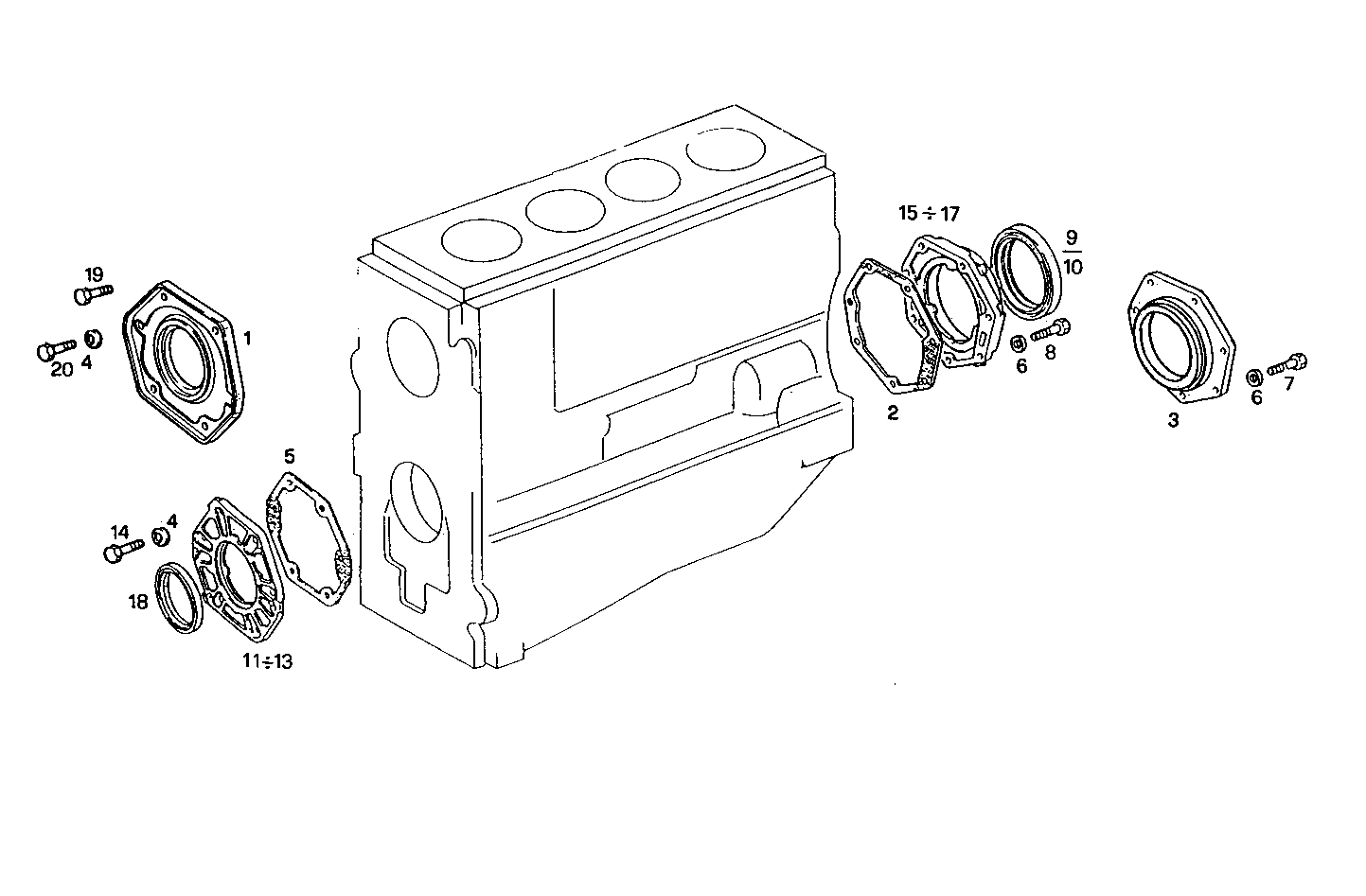

0430.024/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 99442473 COVER WITH SEAL [from 1614118]
2 98421265 FLAT ENGINE GASKET SP=0,8 MM
3 500301734 REAR C.CASE COVER WITH SEAL [from 1784196]
4 17088474 WASHER Ø6X12 MM
5 98421275 FLAT ENGINE GASKET SP=0,8 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16607034 SCREW
8 16043421 HEXAGON BOLT M8X20 MM
9 40100344 SHAFT SEAL Ø100X118 MM SP=12
10 40100314 SHAFT SEAL Ø90X115 MM SP=13 MM
11 4733844 COVER [up to 1307400]
12 98453818 COVER [up to 1614117]
13 98419202 COVER FRONT [up to 1614116]
14 16603824 SCREW M6X25
15 4704465 REAR C.CASE COVER [up to 1307400]
16 7302604 REAR C.CASE COVER [up to 1614116]
17 98453821 COVER [up to 1884195]
18 98454051 SHAFT SEAL [up to 1614116]
19 16585924 HEXAGON BOLT M6X25 MM
20 16689134 SOCKET-HEAD SCREW M6X16 MM
