8141i07.01

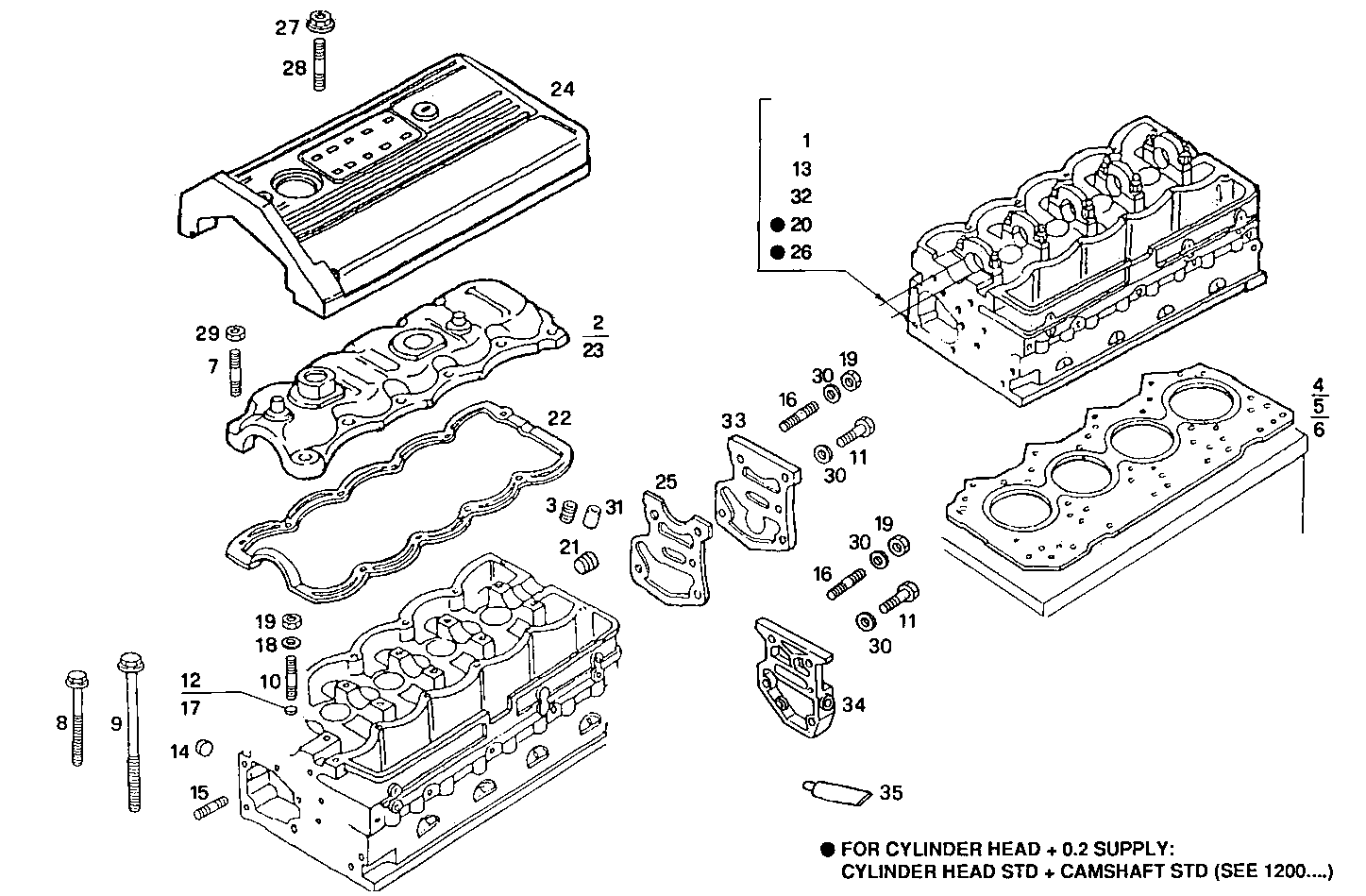

0600.029/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4837125 CYLINDER HEAD ASSY [up to 1359374]
2 7302299 CYL. HEAD COVER BOTTOM [up to 1651849]
3 4279430 THREADED BUSH M14X1,5X20 MM
4 98410475 CYL.HEAD GASKET SP=1,2 MM
5 98410476 CYL.HEAD GASKET SP=1,35 MM
6 98448817 CYL.HEAD GASKET +1,50 MM
7 17364824 STUD M6X30 MM
8 4828150 CYL.HEAD STUD M12X1,25X119 MM
9 4854648 CYL.HEAD STUD M12X1,25X163 MM
10 13543921 STUD M8X16X45 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 4711101 DOWEL PIN [up to 1671413]
13 98445975 CYLINDER HEAD ASSY [up to 1815309]
14 14281970 LOCK PLUG Ø12 MM
15 13541324 STUD
16 16729424 STUD M8X1,25X25
17 98466492 DOWEL PIN [from 1671414]
18 4727119 WASHER
19 17037931 HEXAGON NUT M8X1,25
20 98466533 CYLINDER HEAD +0.2MM - ASSY [up to 1815309]
21 14326050 LOCK PLUG M10X1,25
22 7302293 HEAD COVER GASKET
23 98469077 CYL. HEAD COVER BOTTOM [from 1651850]
24 7302302 CYL. HEAD COVER TOP
25 98425766 FLAT ENGINE GASKET SP=0,8 MM
26 500302573 CYLINDER HEAD ASSY +0,2 MM [from 1815310]
27 7301609 NUT
28 11500221 STUD M6X9X16 MM
29 12574211 HEXAGON NUT M6
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 4279663 DOWEL PIN
32 500302572 CYLINDER HEAD ASSY [from 1815310]
33 7302492 COVER REAR [up to 1834784]
34 500302236 COVER REAR CYLINDER HEAD [from 1834785]
35 1905685 ADHESIVE/STICKER LOCTITE
