8141i07.01

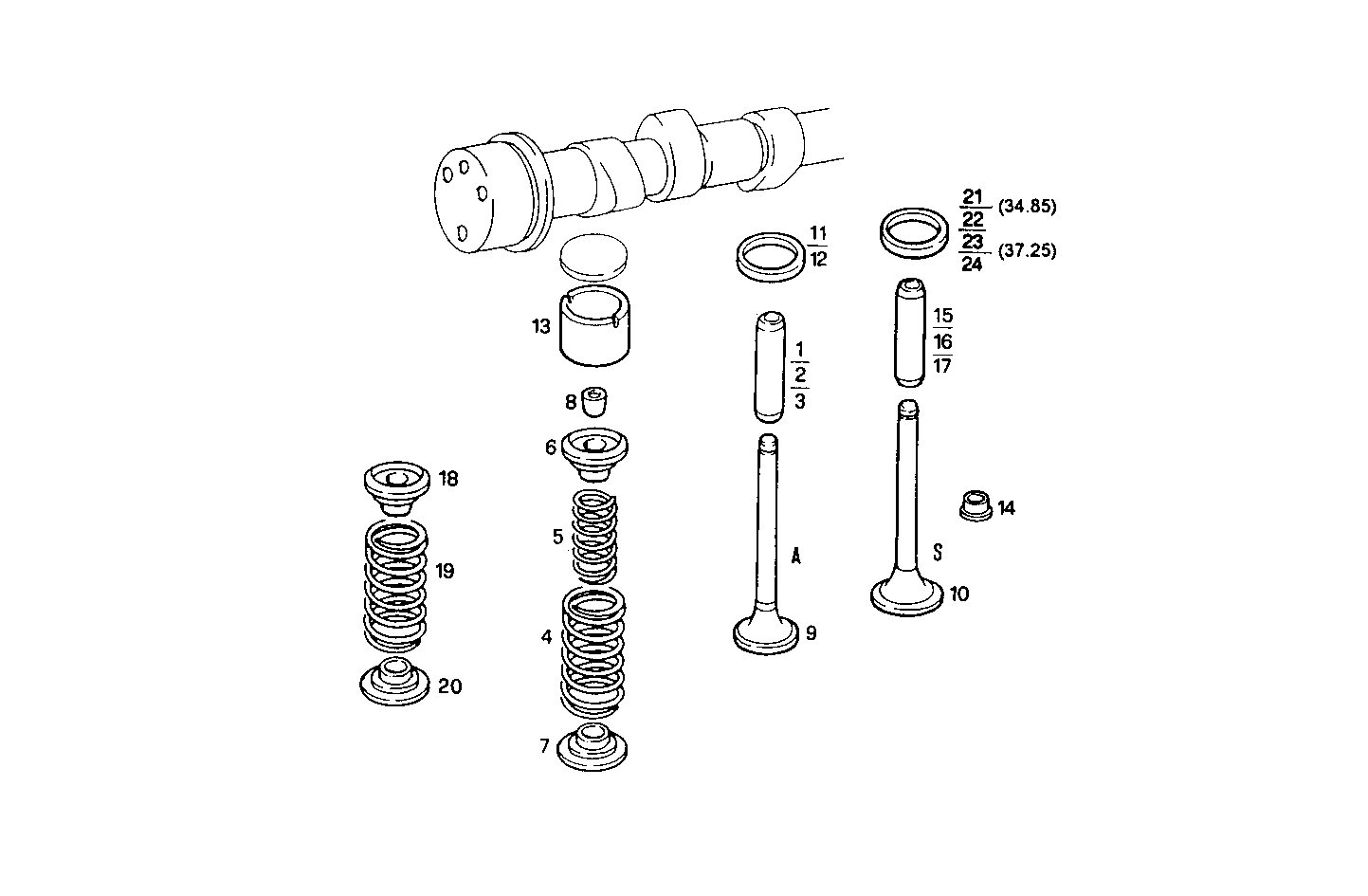

0600.029/02 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
4749397 |
VALVE GUIDE |
|
2 |
4749398 |
VALVE GUIDE +0.10 |
|
3 |
4749399 |
VALVE GUIDE +0,2 |
|
4 |
4734533 |
ENGINE VALV.SPRING OUTER |
|
5 |
4723186 |
ENGINE VALV.SPRING INNER |
|
6 |
4734531 |
SPRING CAP TOP |
|
7 |
4749396 |
SPRING CAP BOTTOM |
|
8 |
4733465 |
VALVE CONE |
|
9 |
4813760 |
INLET VALVE |
|
10 |
7303309 |
EXHAUST VALVE |
|
11 |
4837179 |
VALVE SEAT STD. BRICO |
|
12 |
4837178 |
VALVE SEAT STD. PLUECO |
|
13 |
4733350 |
VALVE TAPPET |
|
14 |
4830224 |
CAP |
|
15 |
4733258 |
VALVE GUIDE |
|
16 |
4733259 |
VALVE GUIDE +0.10 |
|
17 |
4733260 |
VALVE GUIDE +0.25 |
|
18 |
4733069 |
CAP TOP |
|
19 |
4833068 |
ENGINE VALV.SPRING |
|
20 |
4833070 |
SPRING CAP BOTTOM |
|
21 |
4837338 |
VALVE SEAT STD. BRICO |
|
22 |
98450735 |
VALVE SEAT STD. PLEUCO |
|
23 |
98466488 |
VALVE SEAT STD. BRICO |
|
24 |
98466490 |
VALVE SEAT STD. PLEUCO |
