8141i07.01

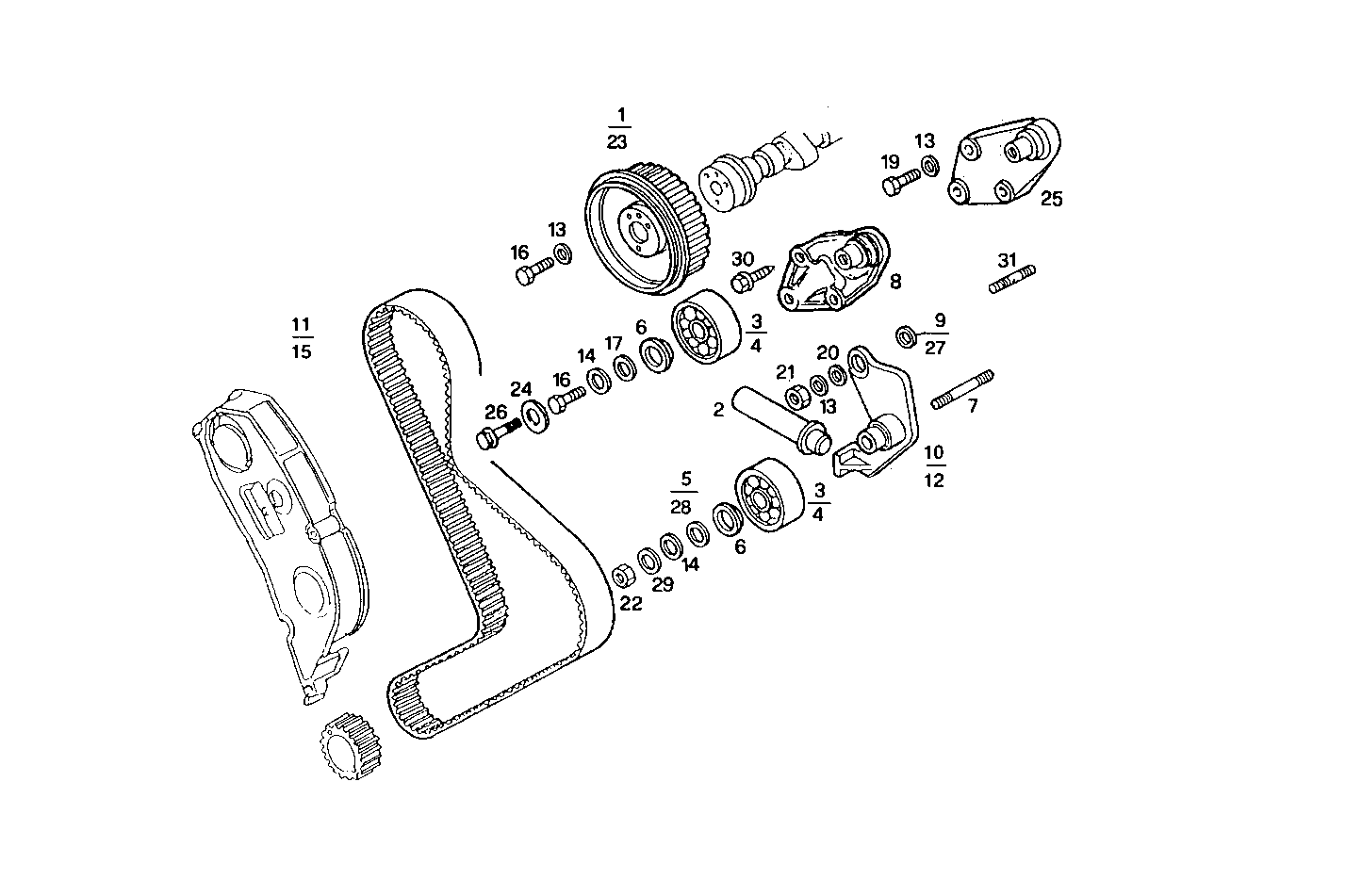

1000.012/01 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 4787645 TIMING INTERM.GEA [up to 1307400]
2 4279745 BELT TENSIONER
3 99432547 ENGINE BEARINGS
4 99461357 ENGINE BEARINGS Ø25X67 MM SP=34 MM
5 4782498 WASHER RIV-SKF [up to 1832165]
6 7300035 SPACER RIV-SKF
7 7301674 STUD
8 4758355 SUPPORT [up to 1815309]
9 4719078 SPACER RIV-SKF [up to 1173277]
10 7301684 SUPPORT RIV-SKF [up to 1173277]
11 7303415 TIMING BELT [up to 1307400]
12 4849127 SUPPORT [from 1173278]
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 17090574 WASHER Ø10X27 MM SP=2,8
15 98415921 TIMING BELT [from 1307401]
16 11306921 SCREW M10X1,25X30
18 16043421 HEXAGON BOLT M8X20 MM
19 16605734 HEXAGON BOLT M8X30 MM
20 12646721 WASHER Ø8X20 MM
21 17037931 HEXAGON NUT M8X1,25
22 17038221 HEXAGON NUT M10
23 98415206 TIMING INTERM.GEA MIBA
24 99447327 SPACER SP=5 MM [from 1832166]
25 98490152 SUPPORT [from 1815310]
26 16288424 HEXAGON BOLT M10X1,25X25 MM
27 4861928 SPACER [from 1173278]
28 98479895 SPACING BAR [from 1832166]
29 17798384 WASHER
30 16586524 HEXAGON BOLT M8X30 MM
31 13517021 STUD M8X25 MM
