8141i07.01

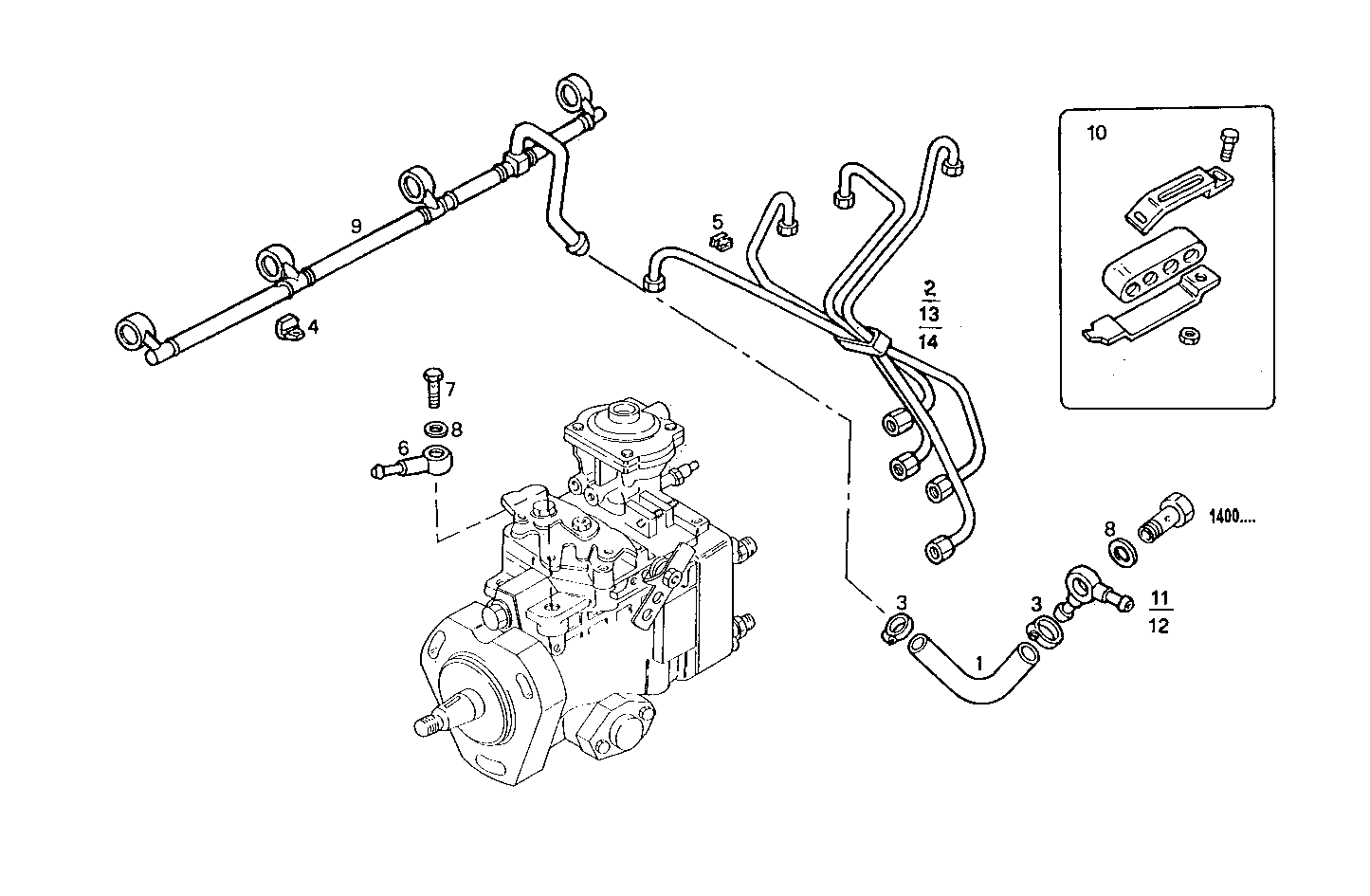

2020.024 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 17724584 FUEL LINE
2 4809414 INJECTION LINE SET [up to 1992414]
3 17764292 HOSE CLIP Ø10/16 MM
4 4734007 RETAINER FRONT
5 4734008 RETAINER REAR
6 4722869 SWIVEL COUPLING
7 4864082 BANJO BOLT M12X1,5X25 MM
8 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
9 7303520 FUEL LINE ASSY
10 4806613 RETAINER
11 98433829 BANJO COUPLING [up to 1555507]
12 98462861 BANJO COUPLING [from 1555508]
13 7302460 INJECTION LINE SET ASSY [up to 1735014]
14 98482813 INJECTION LINE SET ASSY [from 1735015]
