8141i07.01

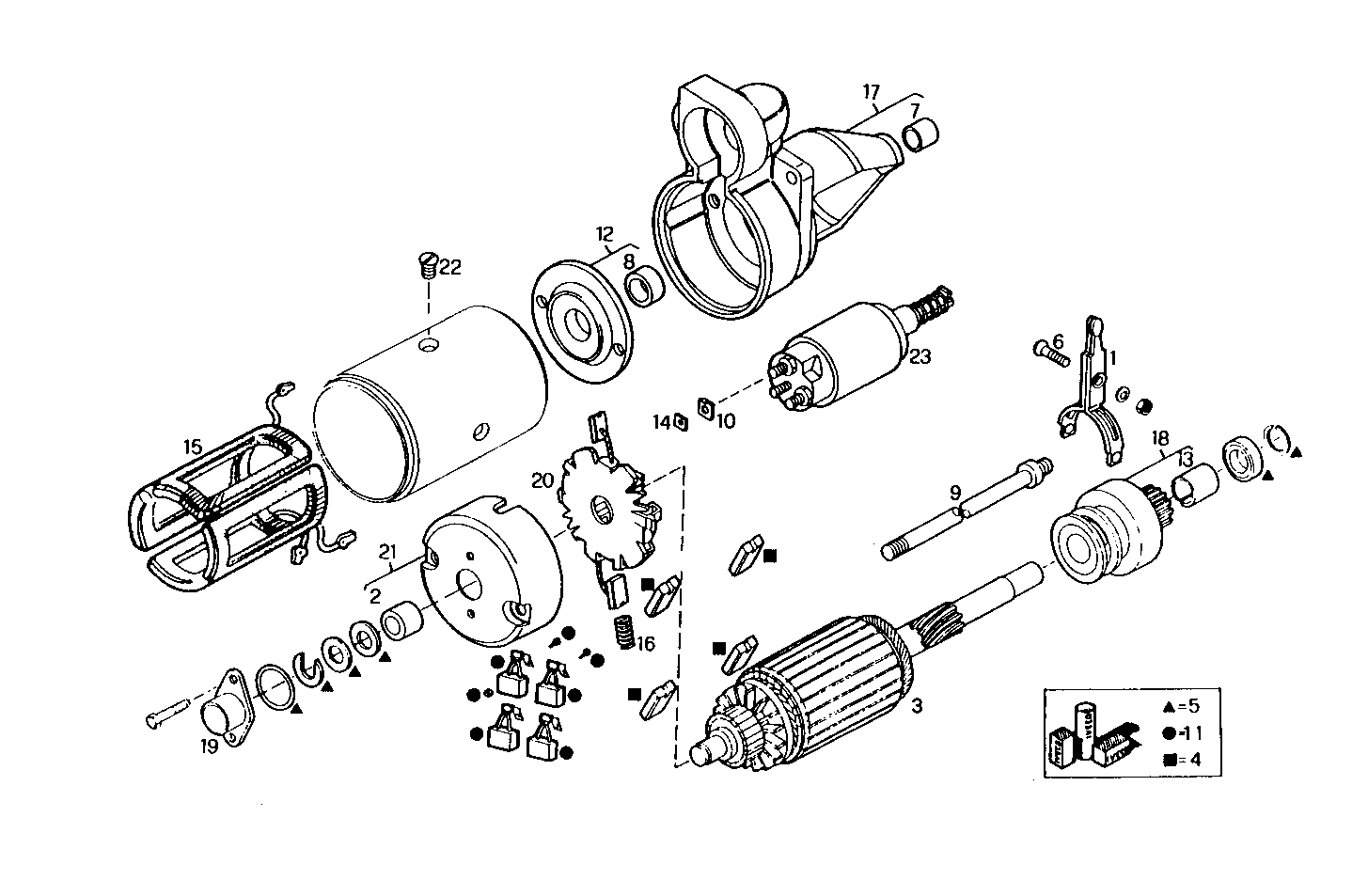

3630.012 STARTER MOTOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
8190144 |
START.COUPL.LEVER |
|
2 |
79026097 |
BUSH ASSY |
|
3 |
9983622 |
STARTER ARMATURE |
|
4 |
1320253 |
KIT-STARTER |
|
5 |
79045355 |
KIT-STARTER |
|
6 |
79033669 |
SCREW |
|
7 |
2915187 |
BUSH |
|
8 |
2985189 |
BUSH |
|
9 |
2985193 |
PIN |
|
10 |
8121732 |
LOCKING PLATE |
|
11 |
79050437 |
KIT-STARTER |
|
12 |
1308810 |
STARTER SUPPORT ASSY |
|
13 |
8997797 |
BUSH |
|
14 |
2985062 |
STOP PLATE |
|
15 |
79026094 |
STARTER WINDING |
|
16 |
79026100 |
SPRING |
|
17 |
9983626 |
STARTER SUPPORT ASSY |
|
18 |
79026090 |
STARTER PINION ASSY |
|
19 |
79026098 |
COVER |
|
20 |
79026095 |
BRUSH HOLDER ASSY |
|
21 |
79075905 |
COVER ASSY |
|
22 |
79033663 |
SCREW |
|
23 |
79033956 |
STARTER SOLENOID ASSY |
