8141i07.01

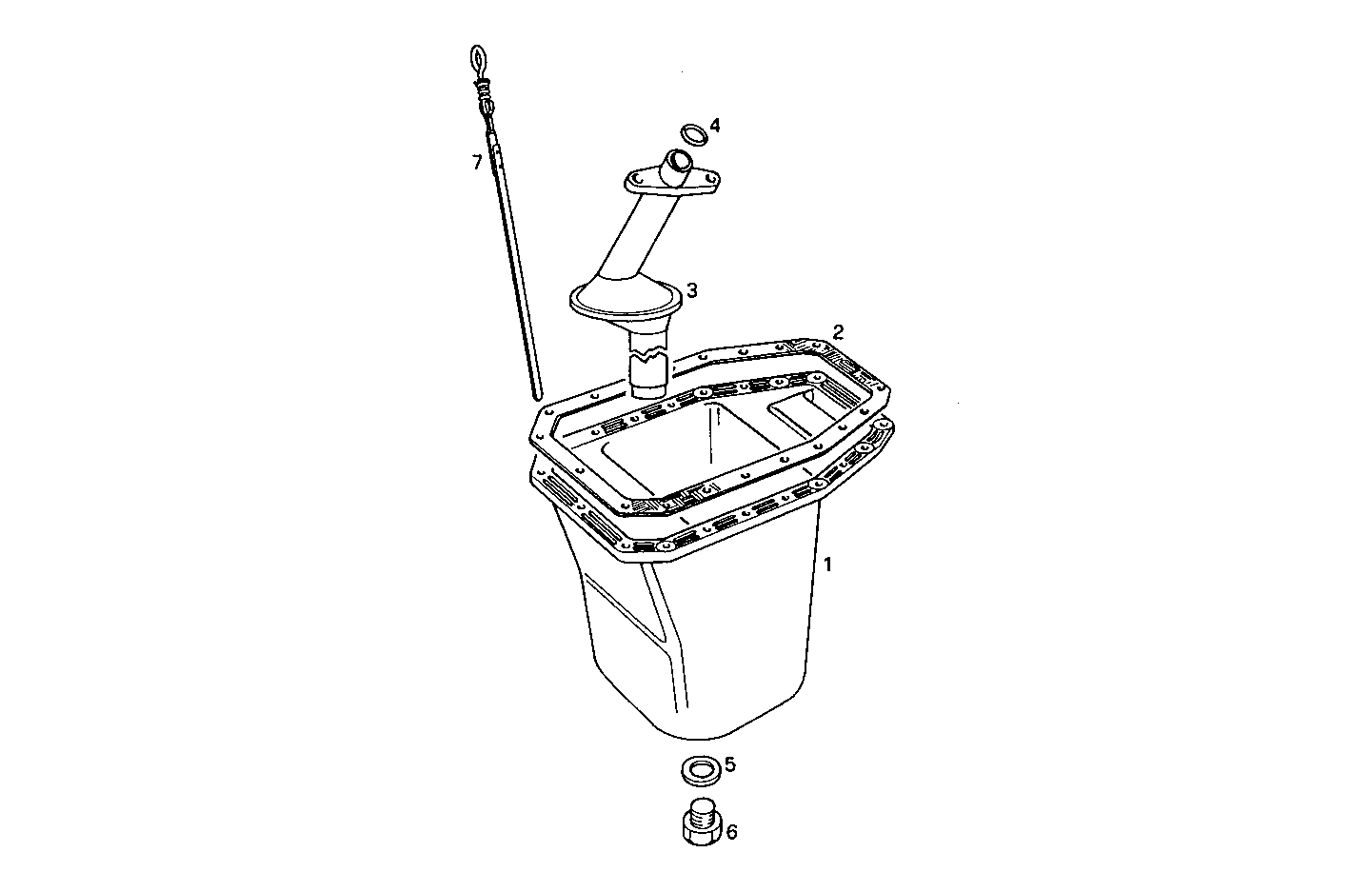

A01050008 OIL SUMP - max 45° with front weel
| Item | Part number | Description |
|---|---|---|
| 1 | 8104165 | OIL SUMP ASSY |
| 2 | 98427939 | OIL SUMP GASKET |
| 3 | 8104166 | SUCTION STRAINER |
| 4 | 14457781 | O-RING SP=2,62 MM |
| 5 | 10263460 | WASHER Ø22X28X1,5 MM |
| 6 | 10305171 | PLUG M22X1,5 |
| 7 | 8008546 | OIL DIPSTICK ASSY |
| 8 | 8103207 | RETAINER |
| 9 | 11193871 | WASHER Ø8X16X1,4 MM |
| 10 | 16043421 | HEXAGON BOLT M8X20 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 7300553 | RETAINER |
| 13 | 16044221 | HEXAGON BOLT M8X50 MM |
