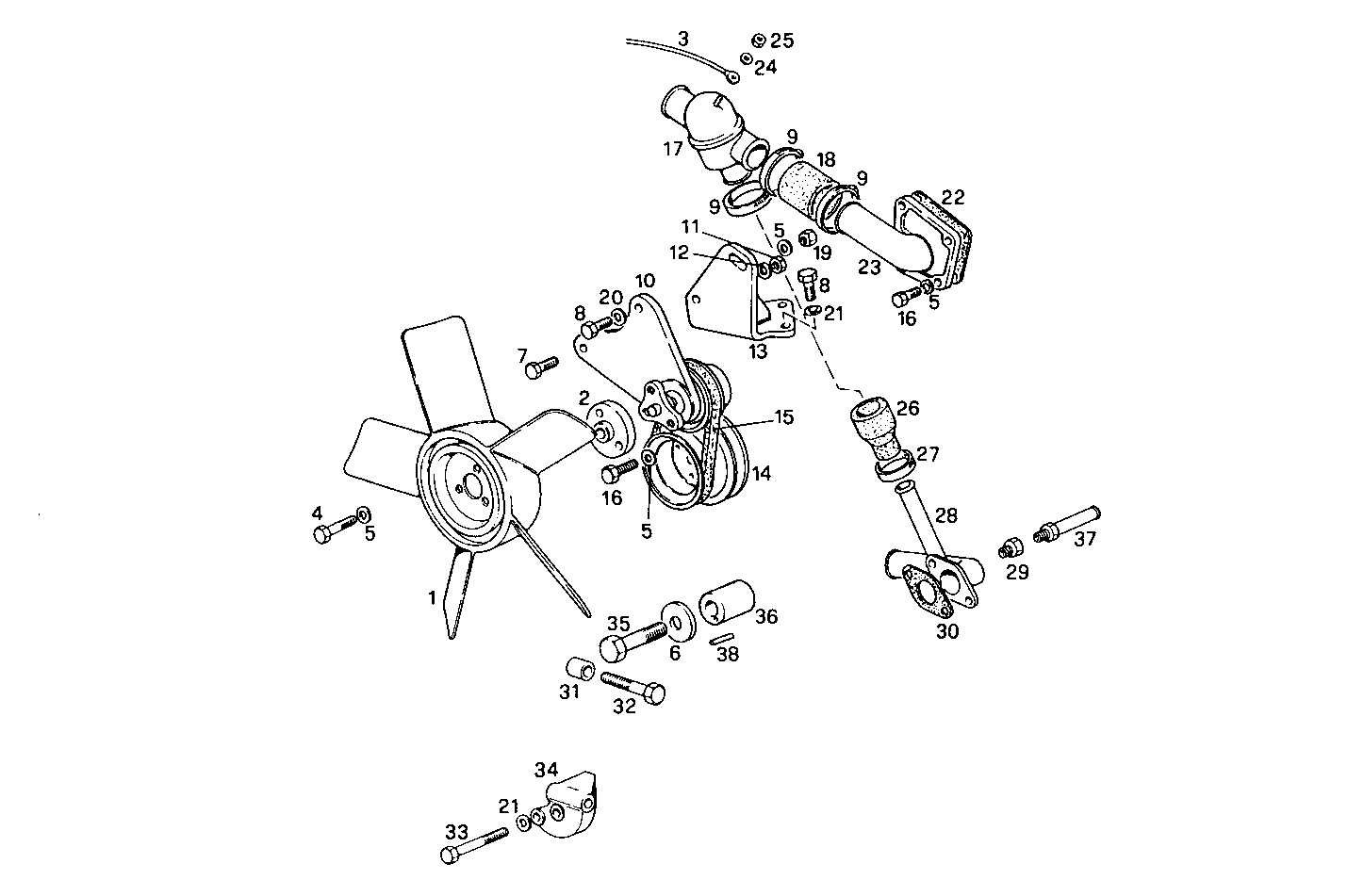

| Item |
Part number |
Description |
|
1 |
4935425 |
FAN Ø400 MM |
|
2 |
8100515 |
SPACING BAR |
|
3 |
8961599 |
WIRE/CABLE |
|
4 |
16043821 |
HEXAGON BOLT M8X30 MM |
|
5 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
6 |
4279447 |
WASHER |
|
7 |
15540521 |
SCREW M12X1,25X35 |
|
8 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
9 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
10 |
7301971 |
BELT TENSIONER ASSY |
|
11 |
16101511 |
HEXAGON NUT M12X1,25 |
|
12 |
11198679 |
SPRING WASHER Ø13 MM |
|
13 |
7301966 |
SUPPORT |
|
14 |
8008079 |
PULLEY |
|
15 |
7301965 |
V-BELT |
|
16 |
16043421 |
HEXAGON BOLT M8X20 MM |
|
17 |
8819129 |
THERMOSTAT |
|
18 |
98433748 |
WATER HOSE |
|
19 |
12164711 |
HEXAGON NUT M10X1,25 |
|
20 |
13550421 |
WASHER |
|
21 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
22 |
98421297 |
FLAT ENGINE GASKET SP=0,8 MM |
|
23 |
8007827 |
WATER PIPE |
|
24 |
10519301 |
WASHER |
|
25 |
15896411 |
HEXAGON NUT M5 |
|
26 |
4751401 |
RUBBER SLEEVE |
|
27 |
17764692 |
CLIP Ø25/40 MM |
|
28 |
7301957 |
WATER PIPE |
|
29 |
8020963 |
PIPE SOCKET |
|
30 |
98430478 |
FLAT ENGINE GASKET SP=1,6 MM |
|
31 |
7300626 |
SPACING BAR |
|
32 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
33 |
15971321 |
HEXAGON BOLT M10X1,25X75 MM |
|
34 |
7301272 |
SUPPORT |
|
35 |
98432123 |
SCREW |
|
36 |
8009591 |
SPACING BAR |
|
37 |
4618675 |
THREADED UNION |
|
38 |
10332010 |
PARALLEL PIN |
