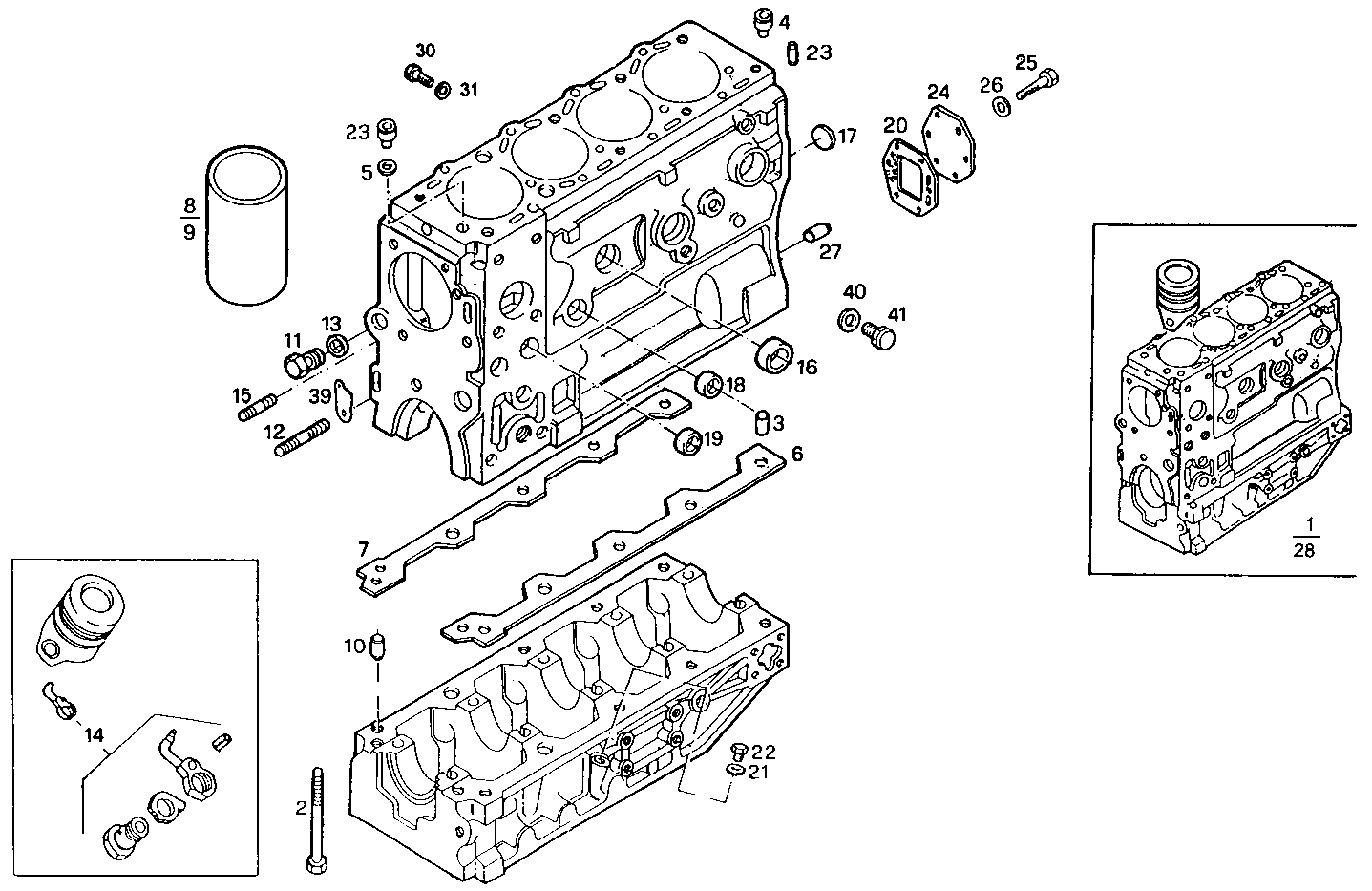

| Item |
Part number |
Description |
|
1 |
98494297 |
CRANKCASE ASSY [up to 1848055] |
|
2 |
4712523 |
SCREW |
|
3 |
4724790 |
DOWEL PIN |
|
4 |
98418754 |
DOWEL PIN |
|
5 |
17277981 |
O-RING 1,78x9,25 |
|
6 |
98432857 |
FLAT ENGINE GASKET LEFT |
|
7 |
98432884 |
FLAT ENGINE GASKET RIGHT |
|
8 |
7302961 |
CYLINDER LINER |
|
9 |
7302962 |
CYLINDERLINER +0.2 |
|
10 |
4279387 |
CENTERING RING |
|
11 |
7303457 |
THREADED PLUG |
|
12 |
7301674 |
STUD |
|
13 |
16508360 |
WASHER 18x22x1,5 |
|
14 |
4856606 |
OIL NOZZLE |
|
15 |
13517021 |
STUD M8X25 MM |
|
16 |
14282870 |
LOCK PLUG Ø40 MM |
|
17 |
7301976 |
PLUG Ø16 MM |
|
18 |
14328901 |
LOCK PLUG Ø25 MM |
|
19 |
14329401 |
LOCK PLUG Ø45 MM |
|
20 |
98421274 |
FLAT ENGINE GASKET SP=0,8 MM |
|
21 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
22 |
11903211 |
LOCK PLUG M12X1,25 |
|
23 |
98418753 |
DOWEL PIN [from 1533081] |
|
24 |
4718627 |
COVER |
|
25 |
16043324 |
HEXAGON BOLT M8X18 MM |
|
26 |
11193871 |
WASHER Ø8X16X1,4 MM |
|
27 |
7300019 |
DOWEL PIN |
|
28 |
99446451 |
CRANKCASE ASSY [from 1848056] |
|
30 |
99488780 |
SCREW CONNECTOR |
|
31 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
39 |
4719077 |
COVER |
|
40 |
10282460 |
SEAL GASKET Ø14X20 MM |
|
41 |
10300611 |
LOCK PLUG M14X1,5 |
