8141i67.01

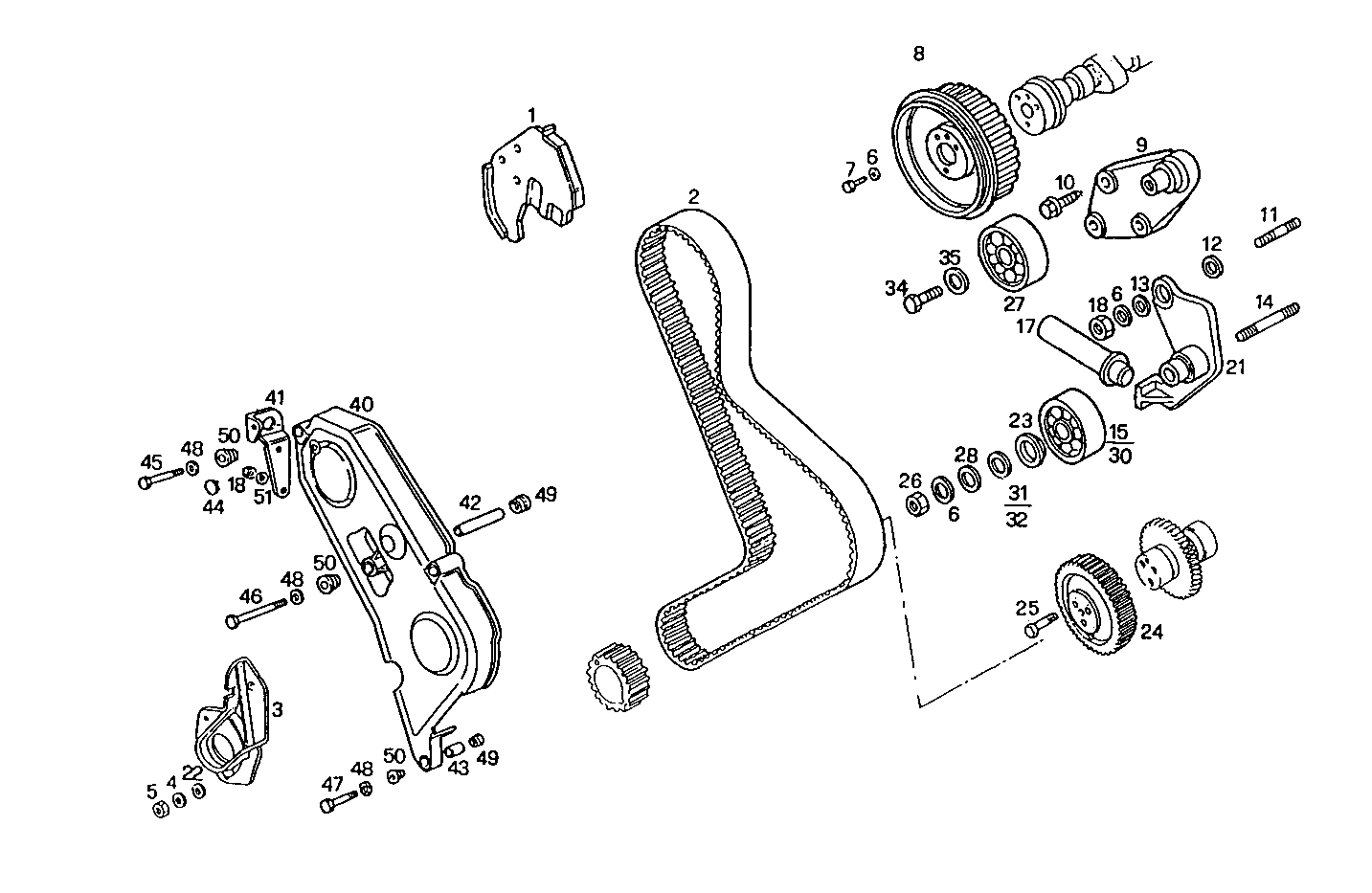

1000.025 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 98475847 PROTECTION [from 1815310]
2 98419390 TIMING BELT
3 98474997 COVER BOTTOM [up to 2263443]
4 17088671 SPRING WASHER Ø6X15 MM SP=1 MM
5 17038221 HEXAGON NUT M10
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 98415208 CAMSHAFT PINION MIBA
9 99469896 SUPPORT
10 16586524 HEXAGON BOLT M8X30 MM
11 13517021 STUD M8X25 MM
12 4719078 SPACER RIV-SKF [up to 1173277]
13 12646721 WASHER Ø8X20 MM
14 7301674 STUD
15 4740847 ENGINE BEARINGS RIV-SKF
17 4279745 BELT TENSIONER
18 17037931 HEXAGON NUT M8X1,25
21 7301684 SUPPORT RIV-SKF [up to 1173277]
22 17798374 SPRING WASHER Ø10,2X18,1 MM
23 7300035 SPACER RIV-SKF
24 98415211 INJ.PUMP DRIV.GEA MIBA
25 14337521 LOCKING SCREW M12X1,25X30 MM
27 4740846 ENGINE BEARINGS RIV-SKF
28 17090574 WASHER Ø10X27 MM SP=2,8
30 99461358 ENGINE BEARINGS Ø25X67 MM SP=34 MM
31 4782498 WASHER RIV-SKF [up to 1832165]
32 98479895 SPACING BAR [from 1832166]
40 98414754 COVER [up to 1815309]
41 4837172 HOOK
42 4717072 SPACER BUSH L=41 MM
43 7300085 SPACER BUSH
44 14407787 PLUG
45 1111079 HEXAGON BOLT M6X50 MM
46 10903721 SCREW M6X55
47 10902821 HEXAGON BOLT M6X30 MM
48 17088474 WASHER Ø6X12 MM
49 7300033 INSULATING RING
50 7300034 WASHER
51 12654421 WASHER SP=3 MM
