8141i67.01

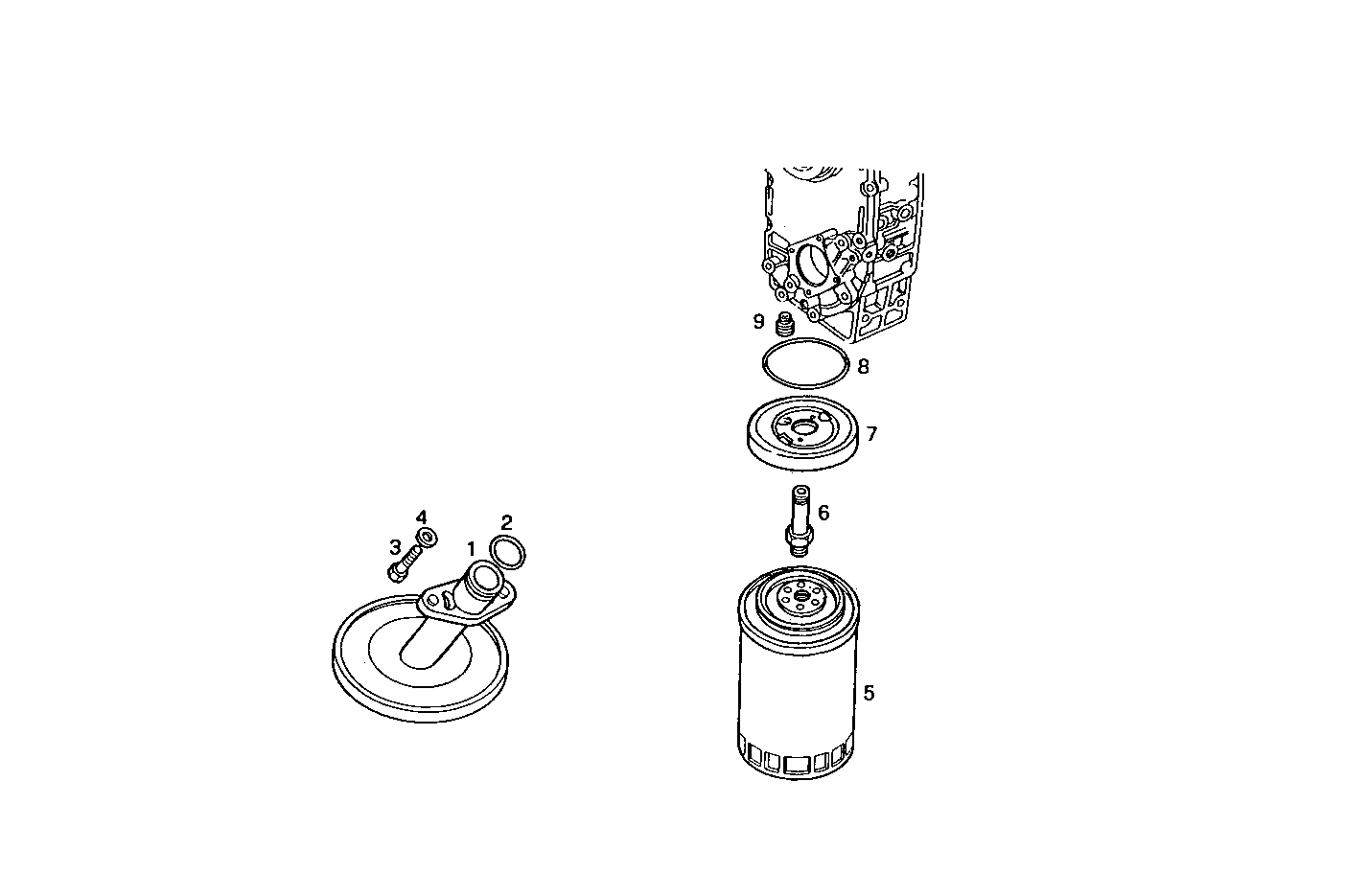

3010.120 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4713964 | SUCTION STRAINER |
| 2 | 17282281 | O-RING 2,62x23,47 |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 1903628 | OIL FILTER CARTRIDGE |
| 6 | 7301914 | THREADED UNION M20X1,5 - 3/4" |
| 7 | 7301915 | SPACER |
| 8 | 14460381 | O-RING Ø64,77 MM SP=2,62 MM |
| 9 | 4737557 | DOWEL PIN |
