8141i67.01

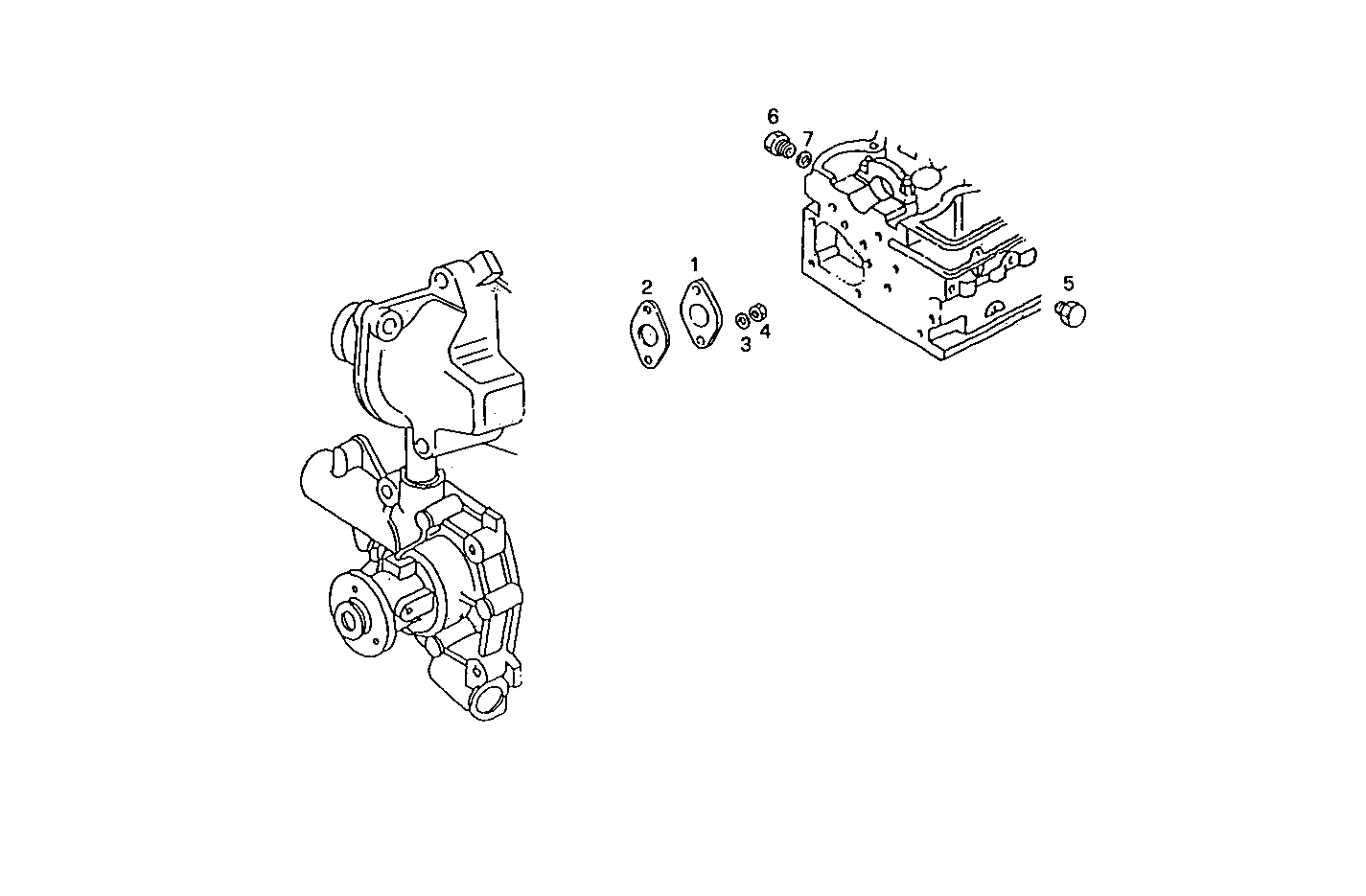

3210.122 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4934275 | COVER |
| 2 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 16997411 | THREADED PLUG M16X1,5 |
| 6 | 10300711 | LOCK PLUG M16 |
| 7 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
