8141i67.01

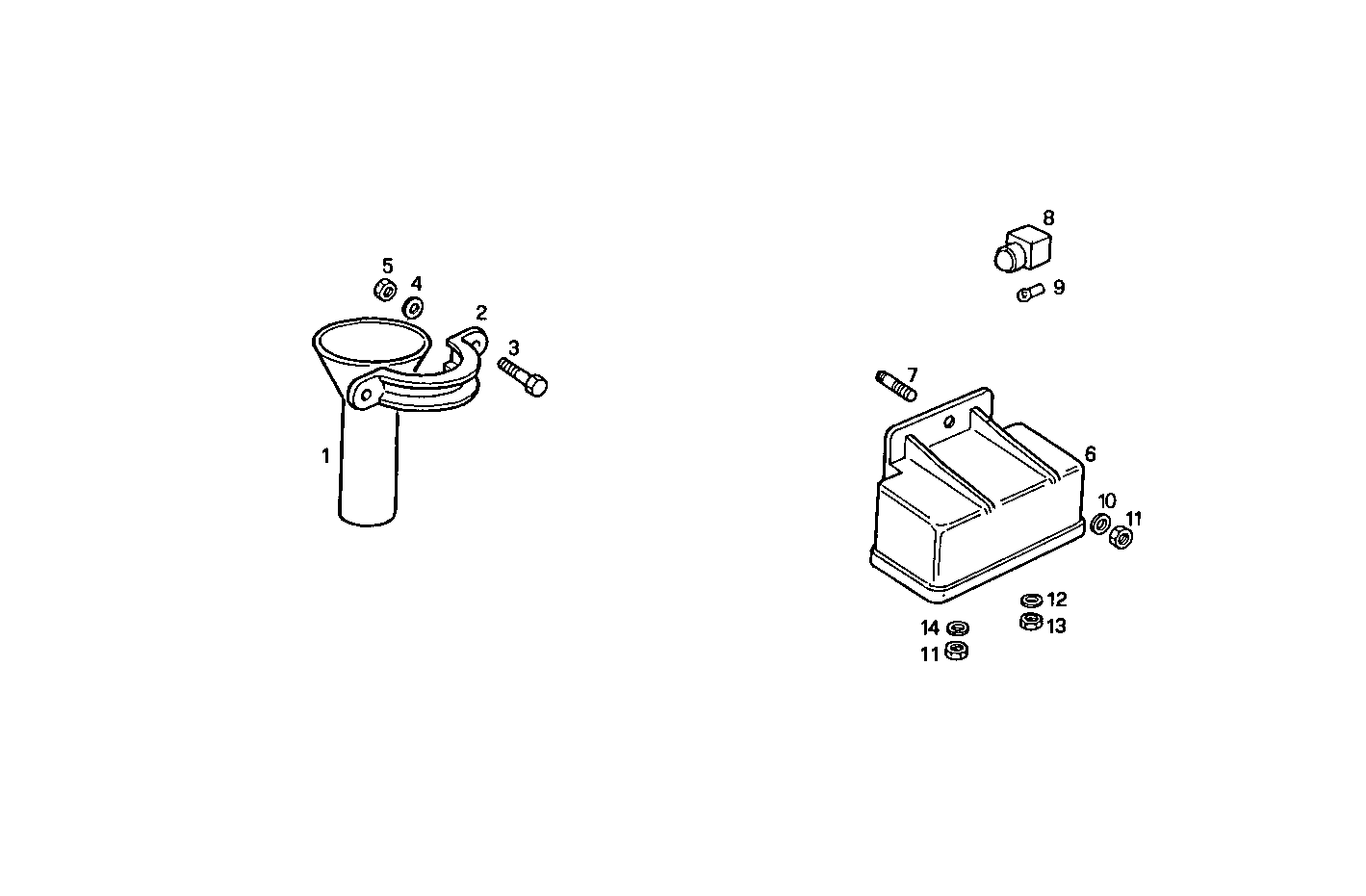

8600.038 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 4936100 | EXHAUST PIPE |
| 2 | 93801183 | RETAINER |
| 3 | 16604524 | SCREW |
| 4 | 11194071 | WASHER Ø8X16X1,9 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 5990986 | ELECTR.CONTR.UNIT BITRON |
| 7 | 8103002 | PIN |
| 8 | 8108532 | LUMINOUS INDICATOR |
| 9 | 14143990 | LAMP |
| 10 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 11 | 15896211 | HEXAGON NUT M6 |
| 12 | 10519301 | WASHER |
| 13 | 15896411 | HEXAGON NUT M5 |
| 14 | 10519401 | WASHER Ø6X12 MM |
