8141i67.01

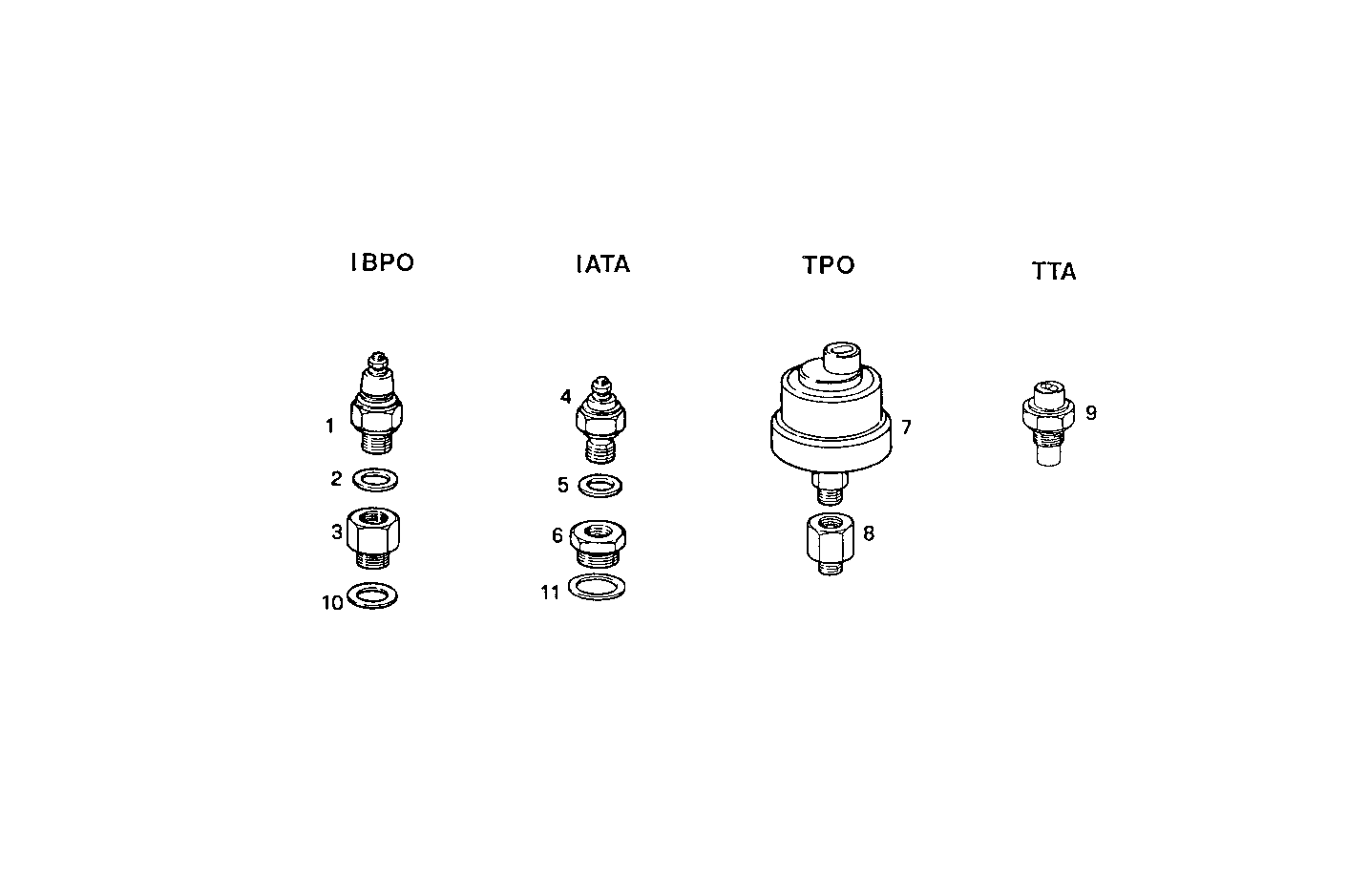

A38570010 SENDER UNITS ALARMS INSTRUMENT - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8104140 | TRANSMITTER IBPO |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 4935314 | PIPE SOCKET |
| 4 | 8104141 | TRANSMITTER IATA |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 6 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 7 | 8100563 | TRANSMITTER TPO |
| 8 | 4928113 | PIPE SOCKET |
| 9 | 4448131 | TEMP. TRANSMITTER TTA |
| 10 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
