8141i67.01

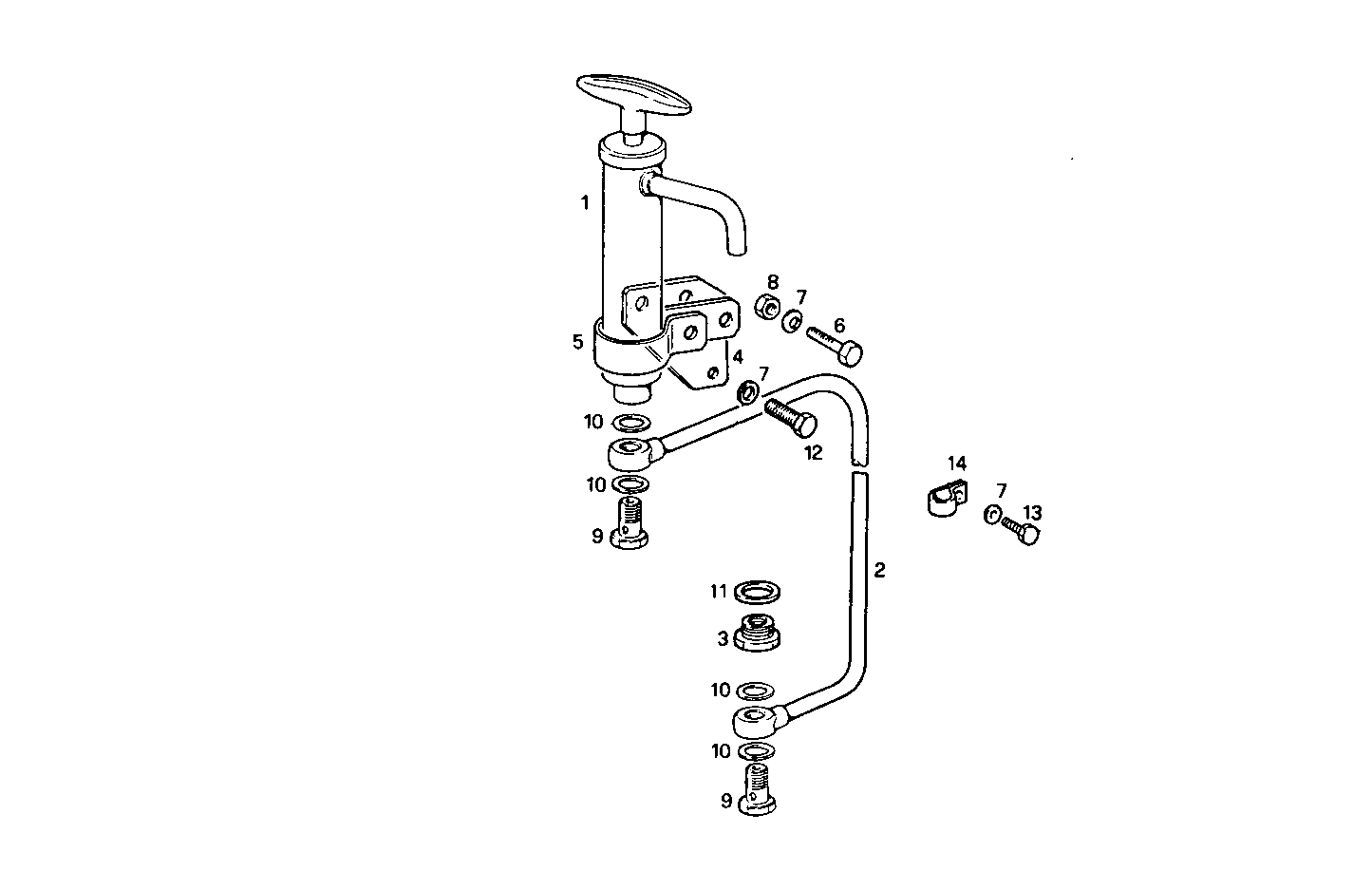

A49010001 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8014756 | OIL LINE |
| 3 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
| 4 | 8101370 | SUPPORT |
| 5 | 4928851 | CLIP |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 11198371 | SPRING WASHER Ø10X20 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 4864084 | BANJO BOLT M16X1,5 |
| 10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 11 | 10263460 | WASHER Ø22X28X1,5 MM |
| 12 | 15970321 | HEXAGON BOLT M10X16 MM |
| 14 | 8101469 | CLIP |
