8141i67.02A010

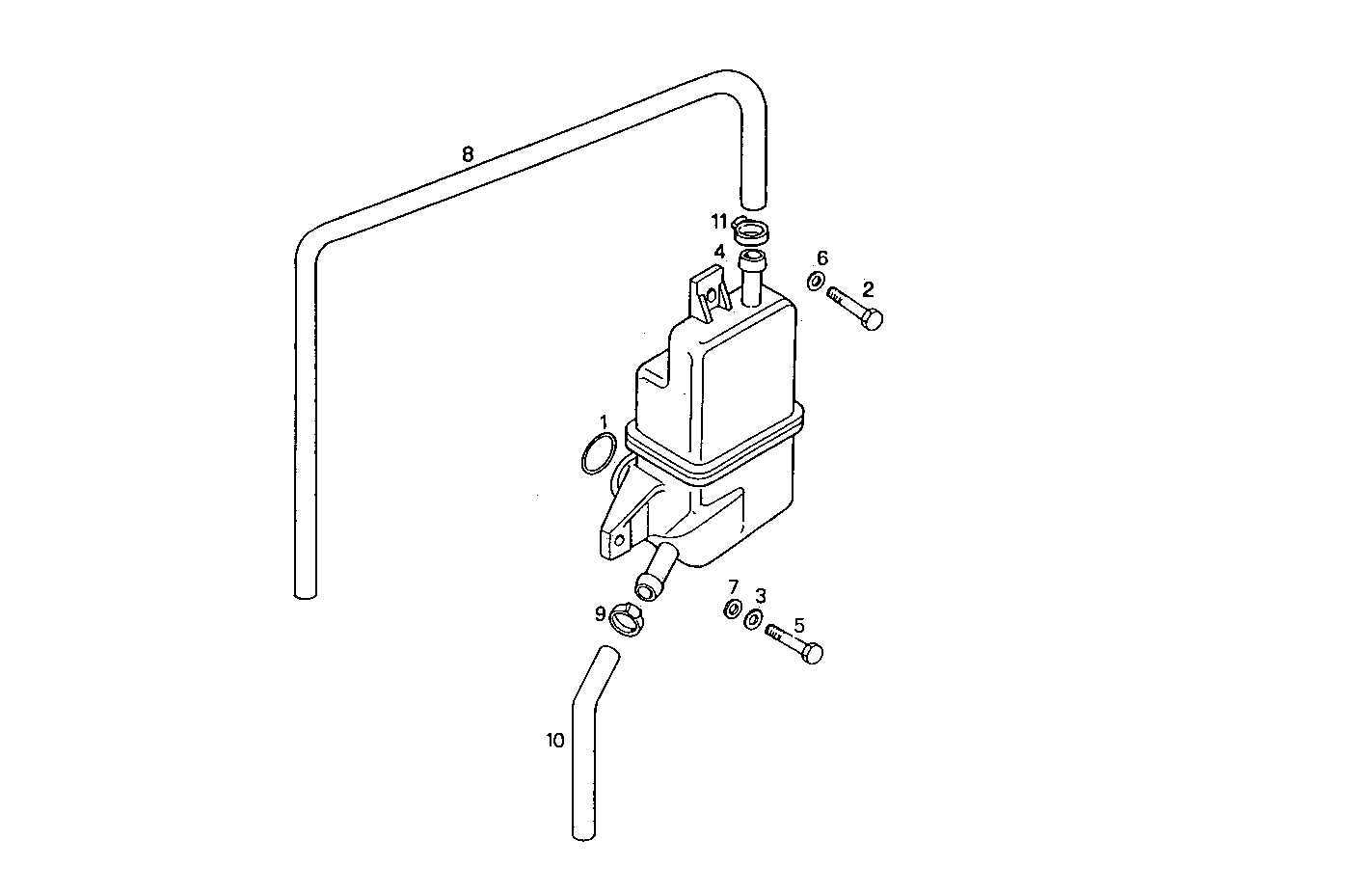

0450.094 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 17289681 O-RING Ø44 MM SP=3,53 MM
2 16690524 SCREW M8X20 MM (8.8)
3 12646724 WASHER Ø8X21X1,5 MM
4 98478412 BREATHER
5 16596924 HEXAGON BOLT M6X10 MM
6 17094714 WASHER Ø6,4X12 MM
7 17101534 SPRING WASHER Ø8 MM
8 98493792 AIR HOSE
9 17764592 CLIP Ø20/32 MM
10 98493760 RUBBER SLEEVE
11 18088292 CLIP Ø12/20 MM
