8141i67.02A010

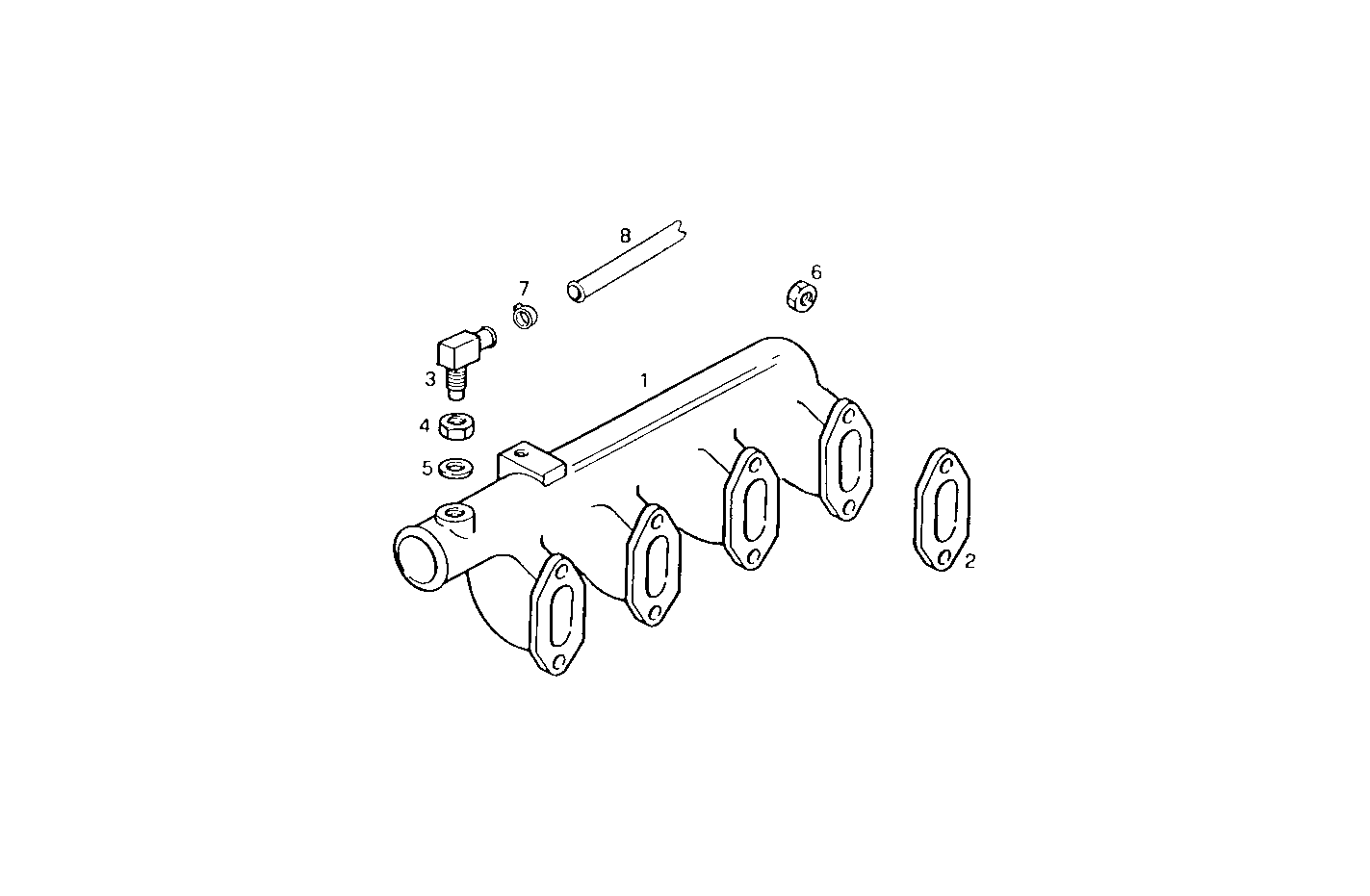

0710.107 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4934376 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 8110099 | PIPE SOCKET |
| 4 | 16102011 | HEXAGON NUT M18X1 |
| 5 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 6 | 99486343 | HEXAGON NUT M8X1,25 |
| 7 | 17764592 | CLIP Ø20/32 MM |
| 8 | 8014770 | OIL HOSE |
