8141i67.02A010

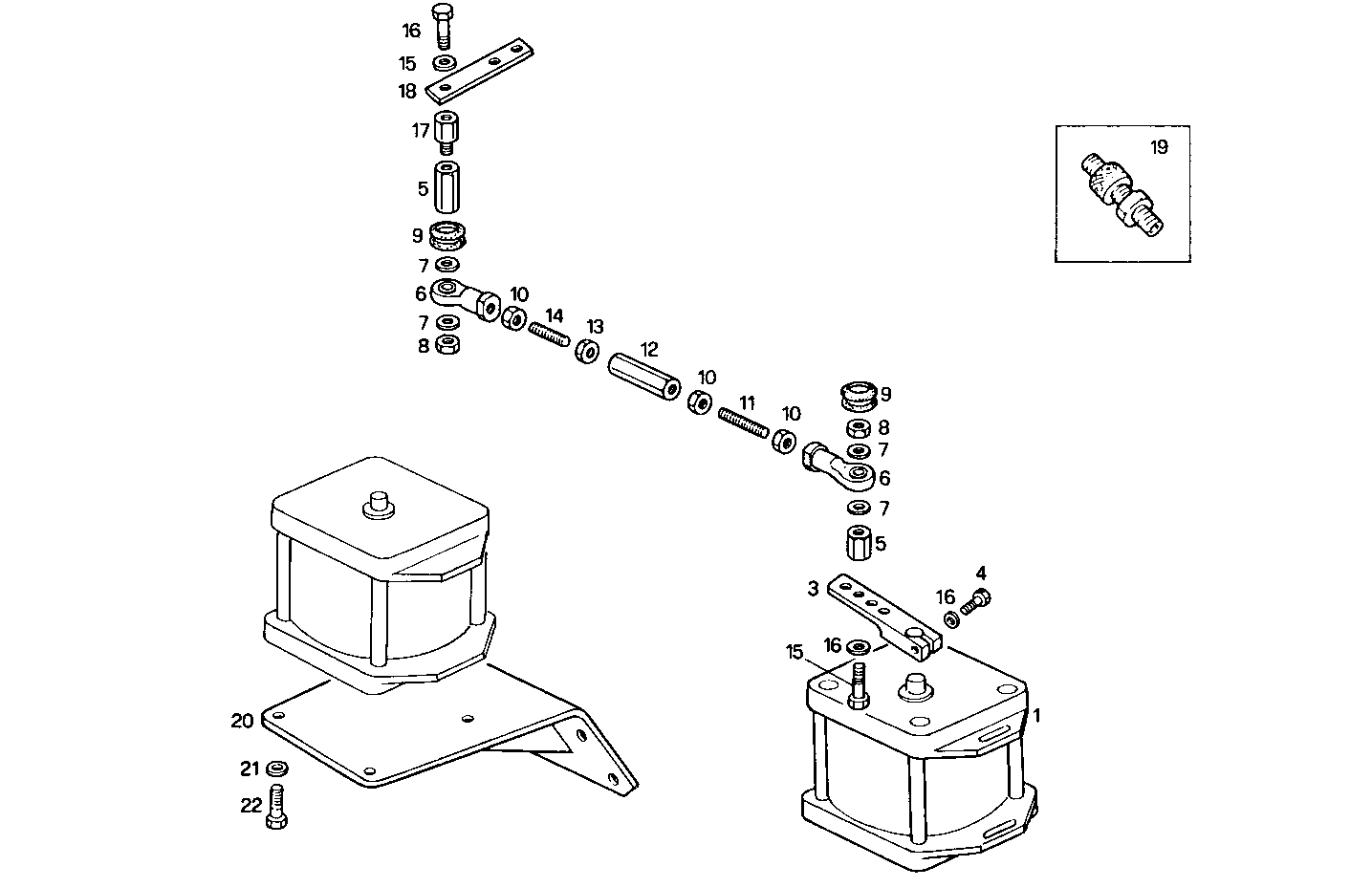

1460.049 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8107492 | INJECTION CONTROL ASSY |
| 2 | 4934404 | SCREW |
| 3 | 8008011 | LEVER |
| 4 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 5 | 8110818 | SPACING BAR |
| 6 | 4934541 | BRACE/STRUT |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17152721 | NUT M6 |
| 9 | 8015507 | PROTECTIVE HOOD |
| 10 | 17037821 | HEXAGON NUT M6X1 |
| 11 | 8821393 | TIE ROD |
| 12 | 8015508 | TIE ROD |
| 13 | 16981731 | NUT M6 |
| 14 | 4934909 | TIE ROD |
| 15 | 16603024 | SCREW |
| 16 | 17088474 | WASHER Ø6X12 MM |
| 17 | 8105581 | STUD |
| 18 | 8015506 | LEVER M5X0,8 |
| 19 | 4933865 | TRANSMITTER |
| 20 | 8015439 | RETAINER |
| 21 | 17091074 | WASHER Ø12X24X2,8 MM |
| 22 | 15540324 | SCREW M12X1,25X25 |
