8141i67.02A010

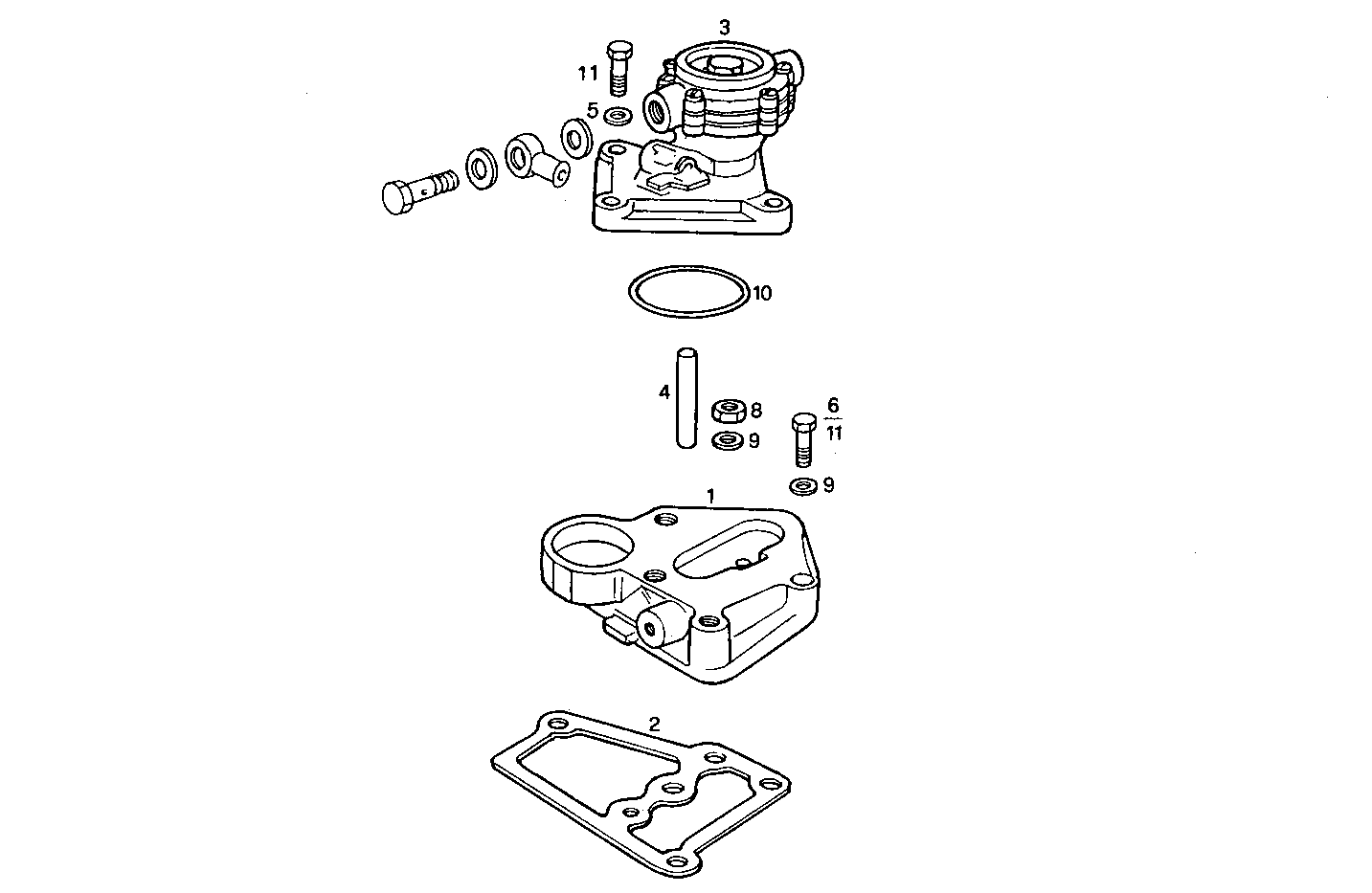

2010.010 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4837038 | SUPPORT |
| 2 | 98421276 | FLAT ENGINE GASKET SP=0,8 MM |
| 3 | 4772576 | FUEL PUMP ASSY |
| 4 | 4741478 | THRUST ROD |
| 5 | 13550301 | WASHER Ø8,15 MM |
| 6 | 16606424 | HEXAGON BOLT M8X65 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 11459780 | WASHER |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
