8141i67.02A010

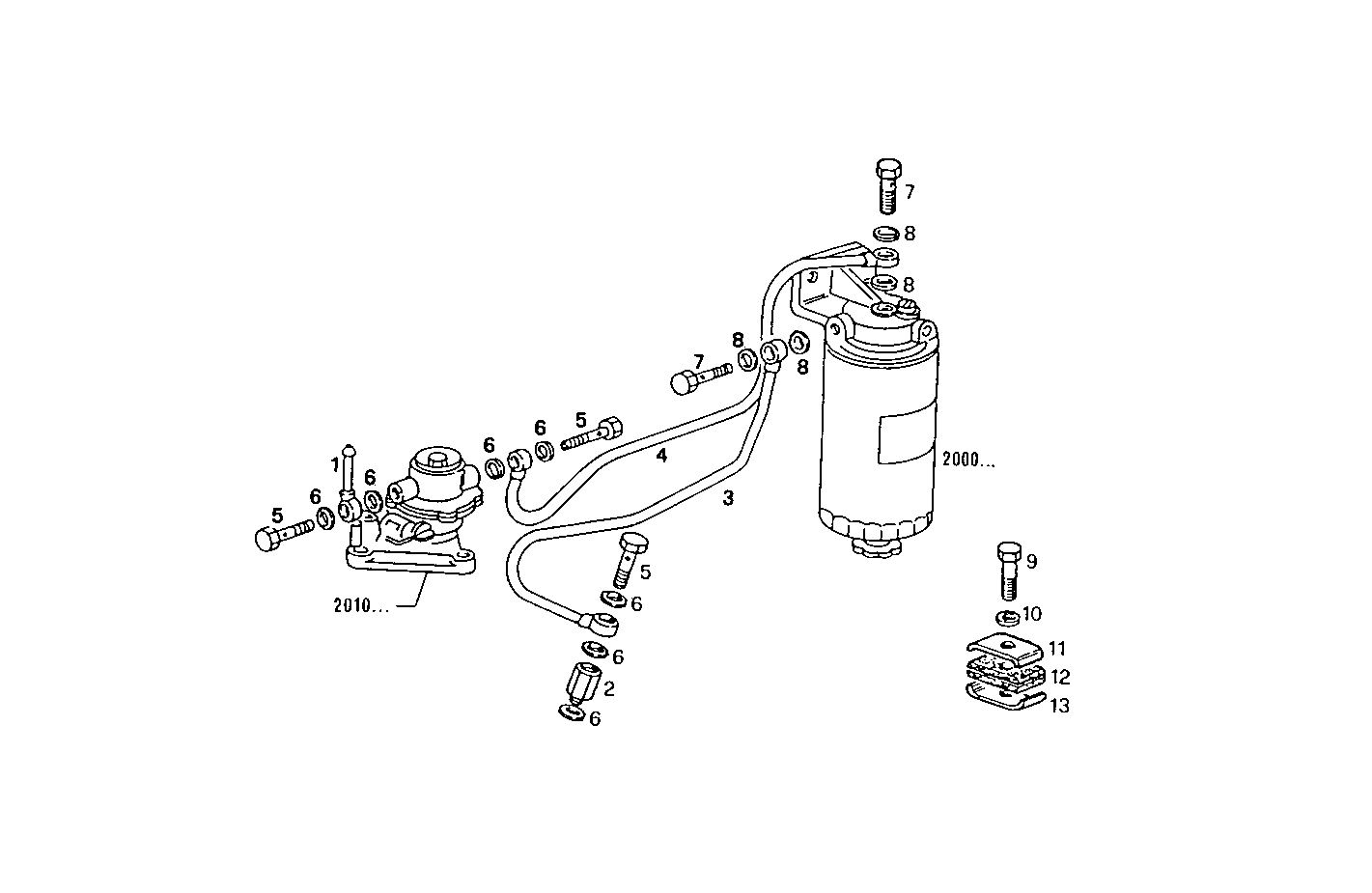

2030.129 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98417685 | PIPE |
| 2 | 4934594 | PIPE SOCKET |
| 3 | 8014735 | FUEL LINE |
| 4 | 8014734 | FUEL LINE |
| 5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 98474308 | SEAL GASKET Ø14X22 MM |
| 9 | 16602324 | HEXAGON BOLT M5X25 MM |
| 10 | 17094504 | WASHER Ø5,3X10 MM |
| 11 | 4659218 | CLIP |
| 12 | 4659217 | DOWEL |
| 13 | 4659219 | PLATE |
