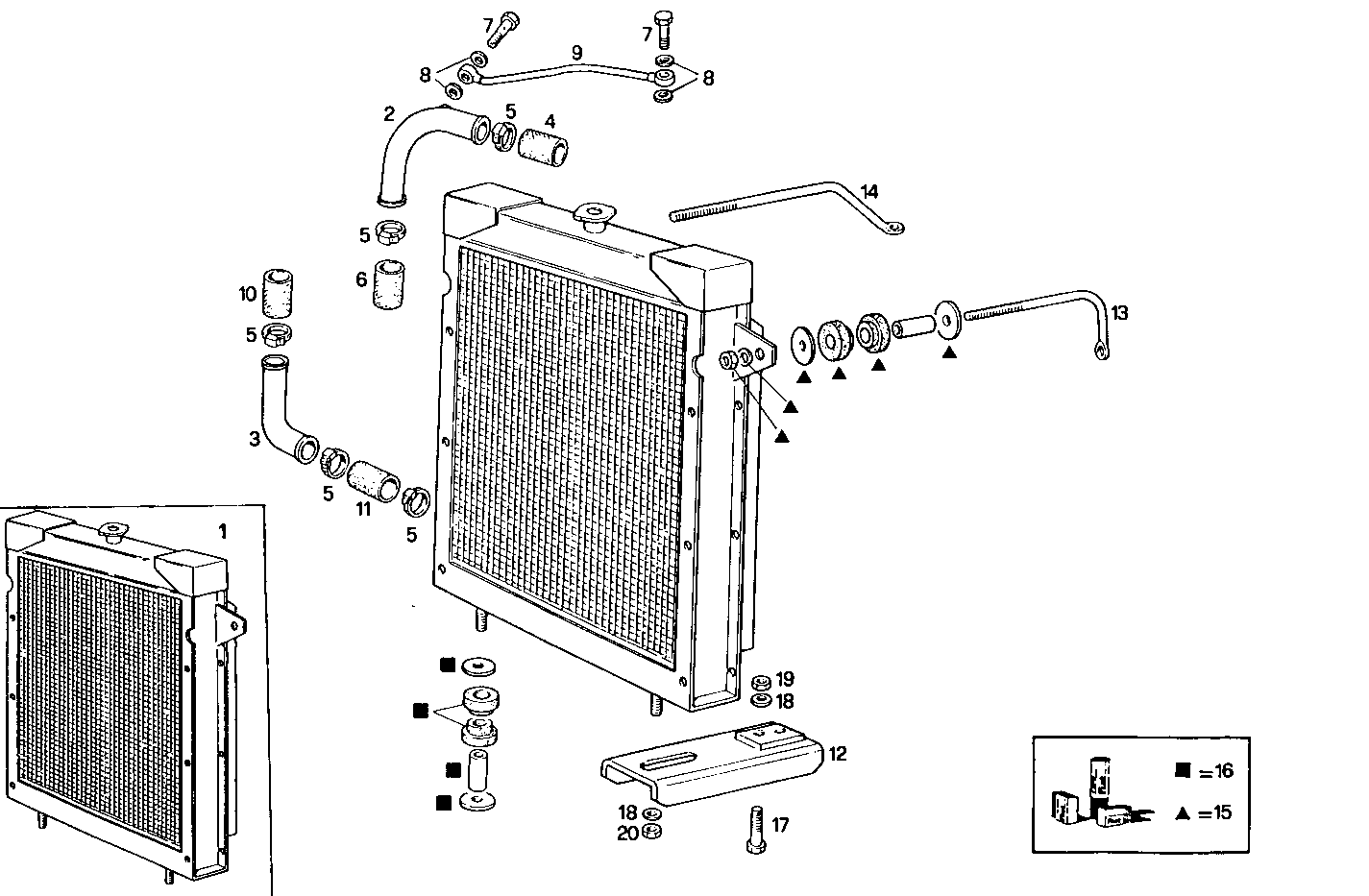

| Item |
Part number |
Description |
|
1 |
8013568 |
WATER RADIATOR |
|
2 |
8019018 |
WATER PIPE |
|
3 |
8018019 |
WATER PIPE |
|
4 |
8102099 |
RUBBER SLEEVE |
|
5 |
17764791 |
CLIP Ø32/50 MM |
|
6 |
17742887 |
RUBBER SLEEVE |
|
7 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
8 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
9 |
8019033 |
WATER PIPE |
|
10 |
8017516 |
WATER HOSE |
|
11 |
8019020 |
RUBBER SLEEVE |
|
12 |
8013934 |
SUPPORT |
|
13 |
8019016 |
TIE ROD LEFT |
|
14 |
8019017 |
TIE ROD RIGHT |
|
15 |
8090340 |
KIT-RADIATOR A.S. COMPLETE |
|
16 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
17 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
18 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
17038221 |
HEXAGON NUT M10 |
