8141i67.02A010

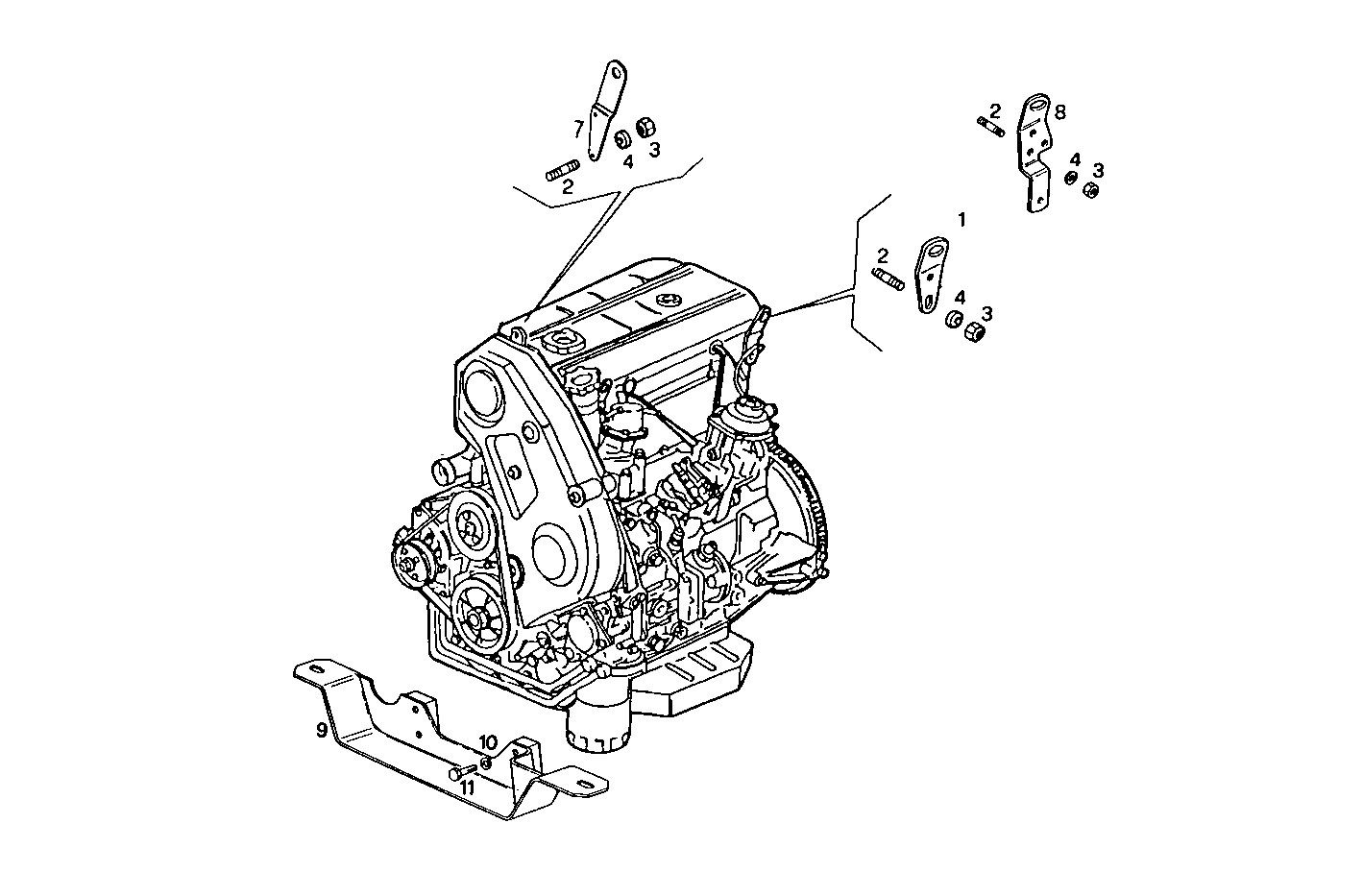

4500.098 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 7300055 TOWINGCLEVIS FRONT
2 13722110 STUD M8X16 MM
3 17037931 HEXAGON NUT M8X1,25
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 98488976 RETAINER
8 98497660 TOWINGCLEVIS FRONT
9 8018348 SUPPORT FRONT
10 17090174 SPRING WASHER Ø10X20 MM
11 11288021 HEXAGON BOLT M10X1,25X60 MM
