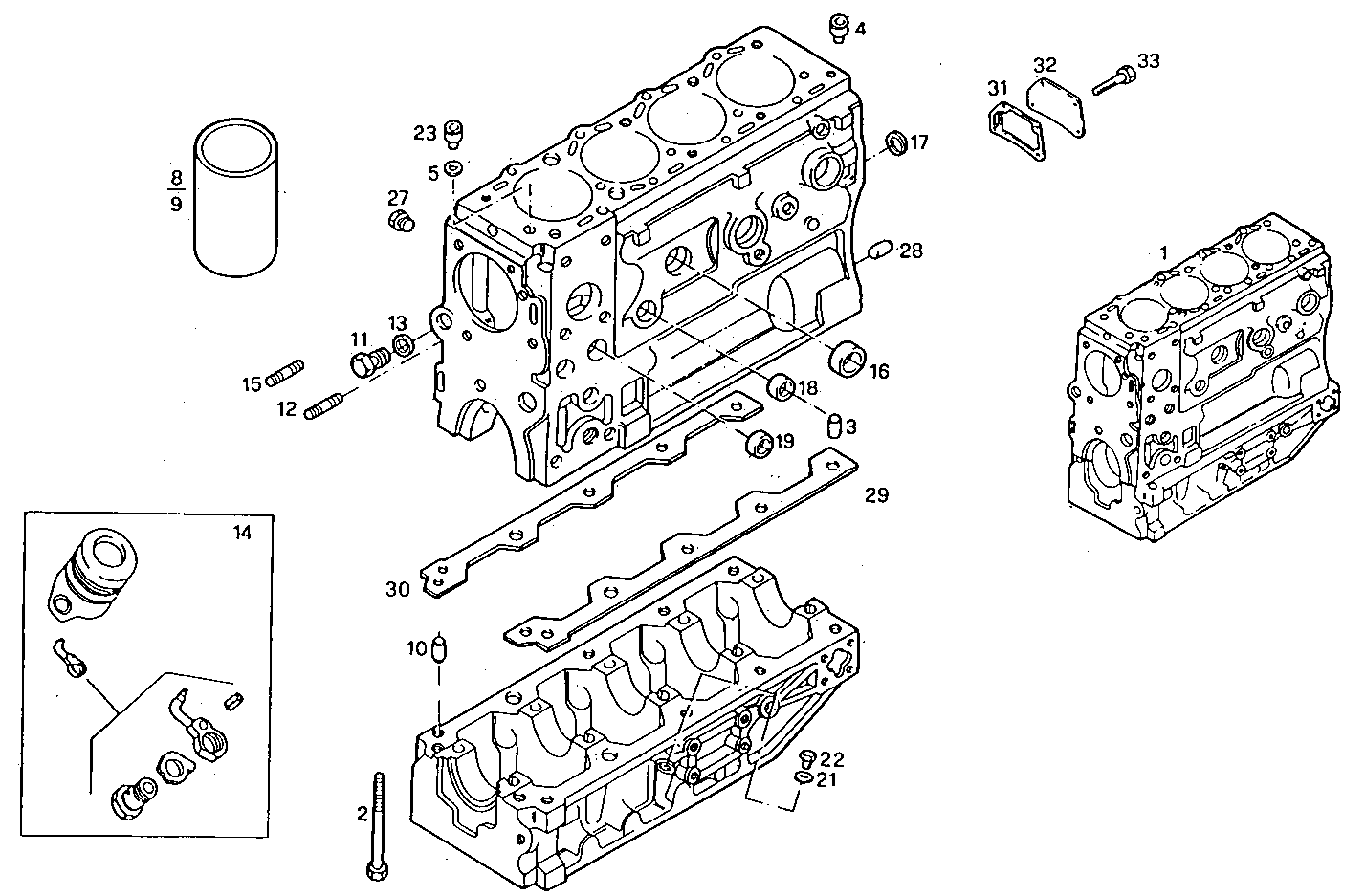

| Item |
Part number |
Description |
|
1 |
99474248 |
CRANKCASE ASSY |
|
2 |
4712523 |
SCREW |
|
3 |
4724790 |
DOWEL PIN |
|
4 |
98418754 |
DOWEL PIN |
|
5 |
17277981 |
O-RING 1,78x9,25 |
|
8 |
7302961 |
CYLINDER LINER |
|
9 |
7302962 |
CYLINDERLINER +0.2 |
|
10 |
4279387 |
CENTERING RING |
|
11 |
7303457 |
THREADED PLUG |
|
12 |
7301674 |
STUD |
|
13 |
10259960 |
WASHER Ø18,2X24 MM SP=1,5 MM |
|
14 |
98437933 |
OIL NOZZLE KIT |
|
15 |
16729324 |
STUD M8X12X20 MM |
|
16 |
14282870 |
LOCK PLUG Ø40 MM |
|
17 |
7301976 |
PLUG Ø16 MM |
|
18 |
14328901 |
LOCK PLUG Ø25 MM |
|
19 |
14329001 |
LOCK PLUG Ø28 MM |
|
21 |
10261060 |
GASKET Ø12X16 MM SP=1,5 MM |
|
22 |
11903211 |
LOCK PLUG M12X1,25 |
|
23 |
98418753 |
DOWEL PIN [from 1533081] |
|
27 |
10275510 |
PLUG |
|
28 |
730019 |
DOWEL PIN |
|
29 |
99432807 |
FLAT ENGINE GASKET LEFT [from 2122618] |
|
30 |
99432808 |
FLAT ENGINE GASKET RIGHT [from 2122618] |
|
31 |
98471333 |
FLAT ENGINE GASKET SP=0,8 MM [from 2122618] |
|
32 |
98471295 |
COVER [from 2122618] |
|
33 |
16586224 |
HEXAGON BOLT M8X1,25X16 MM |
