8141Si27.02

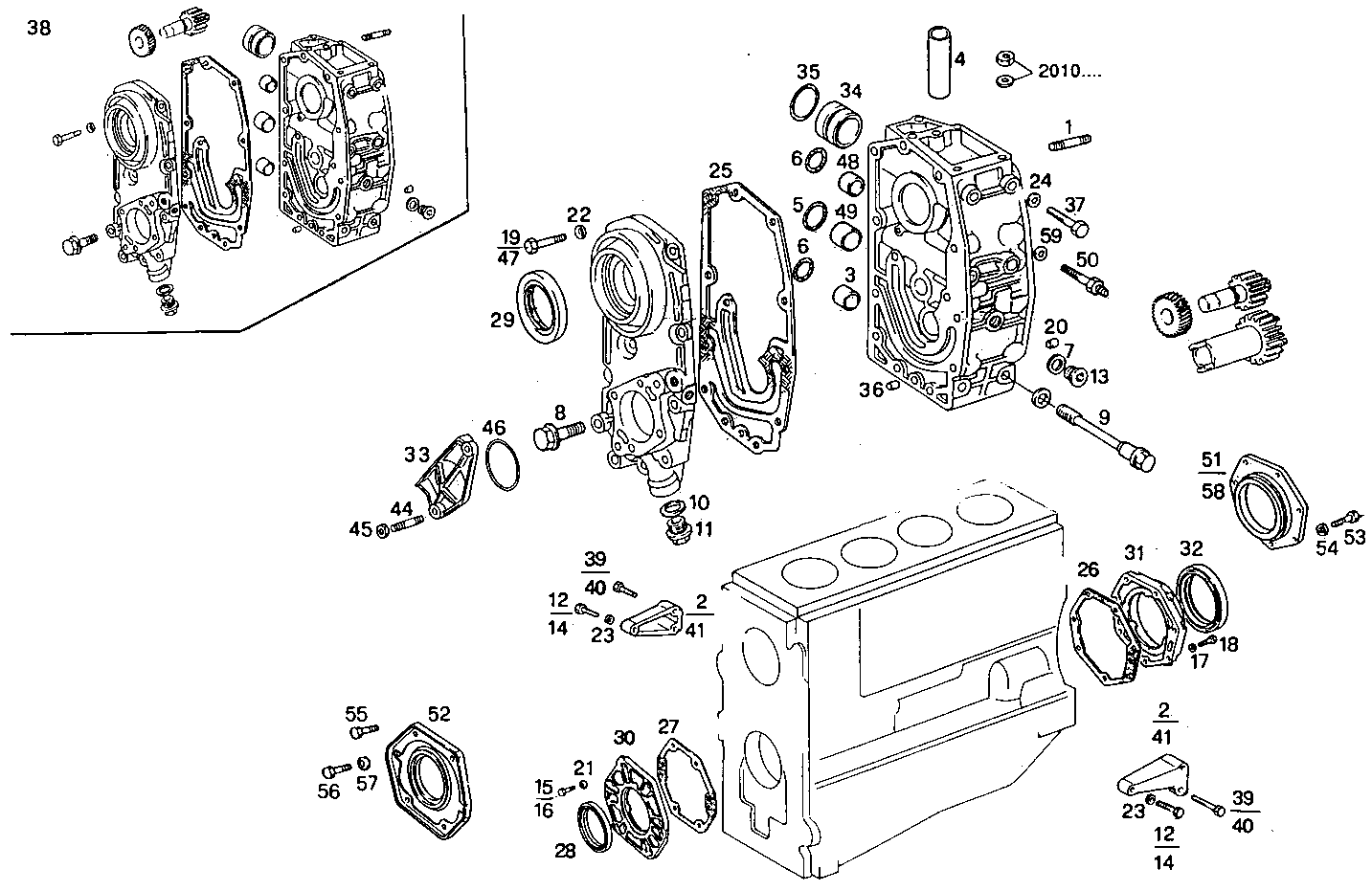

0430.109 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4600631 STUD
2 4705513 BRACKET [up to 1739716]
3 4710945 BUSH Ø18X30 MM
4 4710958 GUIDE BUSH
5 4755220 O-RING Ø22,22 MM SP=2,62 MM
6 4755221 O-RING Ø17,86 MM SP=2,62 MM
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 7300084 SCREW
9 7302294 SCREW
10 10263360 SEAL GASKET 20x26x1
11 4827588 PLUG M20
12 11288024 HEXAGON BOLT M10X1,25X60 MM
13 4731591 THREADED PLUG
14 15971821 SCREW M10X1,25X100
15 16585924 HEXAGON BOLT M6X25 MM
16 16689134 SOCKET-HEAD SCREW M6X16 MM
17 11198074 SPRING WASHER Ø8X15 MM
18 16690434 CYLIND-HEAD SCREW M8X16 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4732685 DOWEL PIN Ø10 MM
21 11197774 WASHER Ø6 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 11198374 SPRING WASHER Ø10X20 MM
24 10519621 WASHER Ø8,45 MM
25 98421263 FLAT ENGINE GASKET SP=0,5 MM
26 98421265 FLAT ENGINE GASKET SP=0,8 MM
27 98421275 FLAT ENGINE GASKET SP=0,8 MM
28 98454051 SHAFT SEAL [up to 1614116]
29 98454045 SHAFT SEAL
30 98453818 COVER [up to 1614117]
31 98453821 COVER [up to 1884195]
32 98454055 SHAFT SEAL [up to 1884195]
33 98460651 PTO COVER [up to 1653273]
34 98461177 BUSH Ø40X46,2 MM [from 1608990]
35 98461178 O-RING Ø46,04 MM SP=3,53 MM
36 98465476 DOWEL PIN Ø8 MM
37 98468138 HEXAGON BOLT M8X1,25X150 MM
38 99446913 BEARING HOUSING ASSY [from 1931536]
39 16289124 HEXAGON BOLT M10X1,25X60 MM
40 16289624 HEXAGON BOLT M10X1,25X100 MM
41 98473354 BRACKET RIGHT [from 1739717]
44 13449521 STUD M10X15X25
45 14059411 HEXAGON NUT M10X1,25
46 17283880 O-RING Ø48,9 MM SP=2,62 MM
47 16606024 SCREW M8X45 MM
48 4279407 BUSH Ø18X18 MM
49 4279406 BUSH Ø22,3X12 MM
50 4741749 SCREW
51 500301734 REAR C.CASE COVER WITH SEAL [from 1784196]
52 98461673 COVER [from 2263444]
53 16707034 CYLIND-HEAD SCREW M8X16 MM
54 17089574 WASHER Ø8X16 MM
57 17088474 WASHER Ø6X12 MM
58 99447458 COVER [from 2122563]
59 17094914 WASHER 8x16
