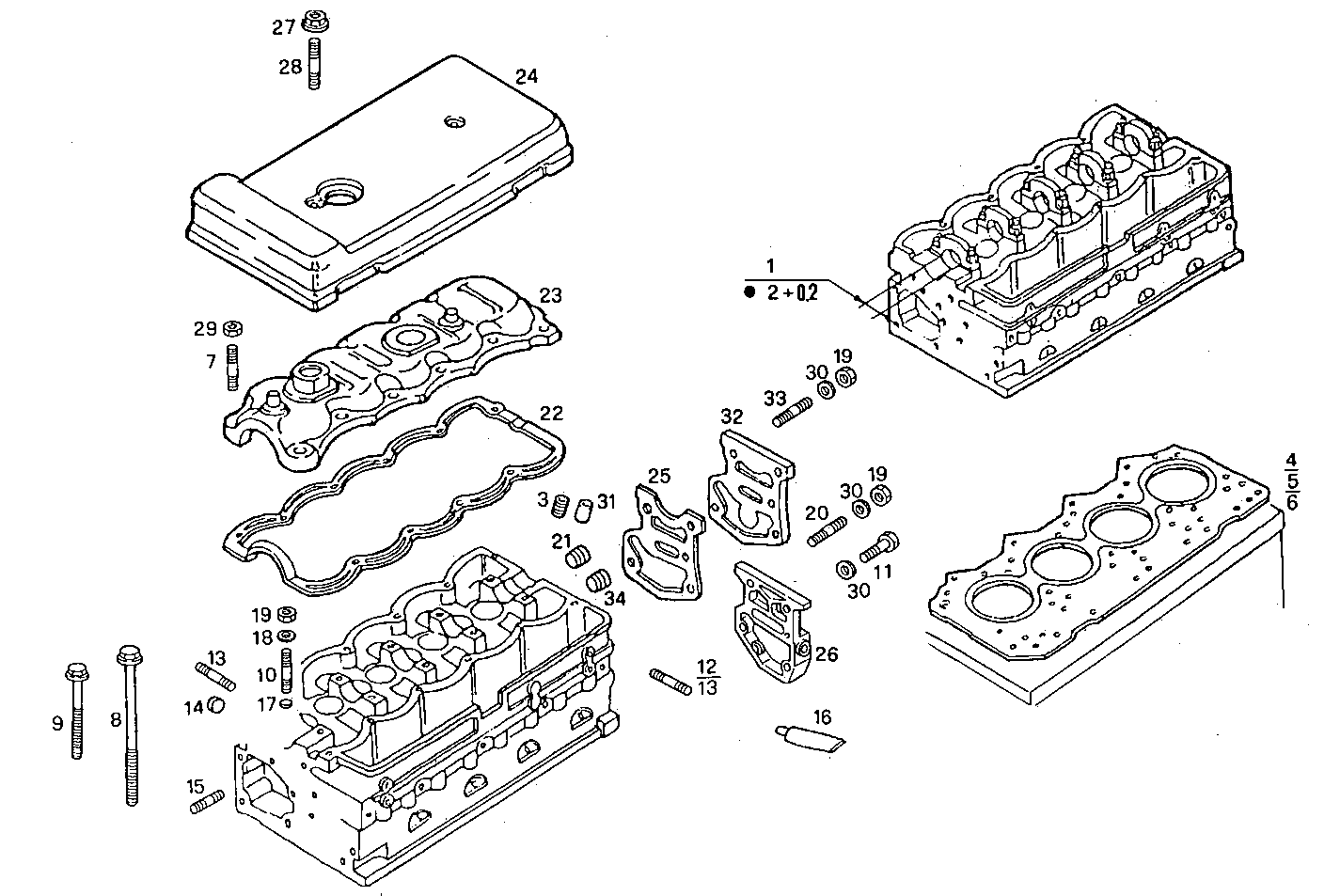

| Item |
Part number |
Description |
|
1 |
98448108 |
CYLINDER HEAD ASSY |
|
2 |
98498879 |
CYLINDER HEAD ASSY +0,2 MM |
|
3 |
4279430 |
THREADED BUSH M14X1,5X20 MM |
|
4 |
98410475 |
CYL.HEAD GASKET SP=1,2 MM |
|
5 |
98410476 |
CYL.HEAD GASKET SP=1,35 MM |
|
6 |
98448817 |
CYL.HEAD GASKET +1,50 MM |
|
7 |
17364824 |
STUD M6X30 MM |
|
8 |
4828150 |
CYL.HEAD STUD M12X1,25X119 MM |
|
9 |
4854648 |
CYL.HEAD STUD M12X1,25X163 MM |
|
10 |
13543921 |
STUD M8X16X45 MM |
|
11 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
12 |
13543224 |
STUD M8X16X18 MM |
|
13 |
16746734 |
STUD M8X25 MM |
|
14 |
14281970 |
LOCK PLUG Ø12 MM |
|
15 |
16745124 |
STUD M6X25 MM |
|
16 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
17 |
98466492 |
DOWEL PIN [from 1671414] |
|
18 |
4727119 |
WASHER |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
16729724 |
STUD M8X40 MM |
|
21 |
14326001 |
THREADED PLUG M10X1,25 |
|
22 |
98472291 |
HEAD COVER GASKET |
|
23 |
98472290 |
CYL. HEAD COVER BOTTOM |
|
24 |
98472302 |
CYL. HEAD COVER TOP |
|
25 |
98425766 |
FLAT ENGINE GASKET SP=0,8 MM |
|
26 |
500302550 |
COVER [from 1834785] |
|
27 |
98439382 |
NUT |
|
28 |
16727624 |
STUD M6X16 MM |
|
29 |
17152721 |
NUT M6 |
|
30 |
11193874 |
WASHER Ø8X16 MM |
|
31 |
4279663 |
DOWEL PIN |
|
32 |
7303254 |
COVER [up to 1834784] |
|
33 |
16729494 |
STUD |
|
34 |
16997411 |
THREADED PLUG M16X1,5 |
