8141Si27.02

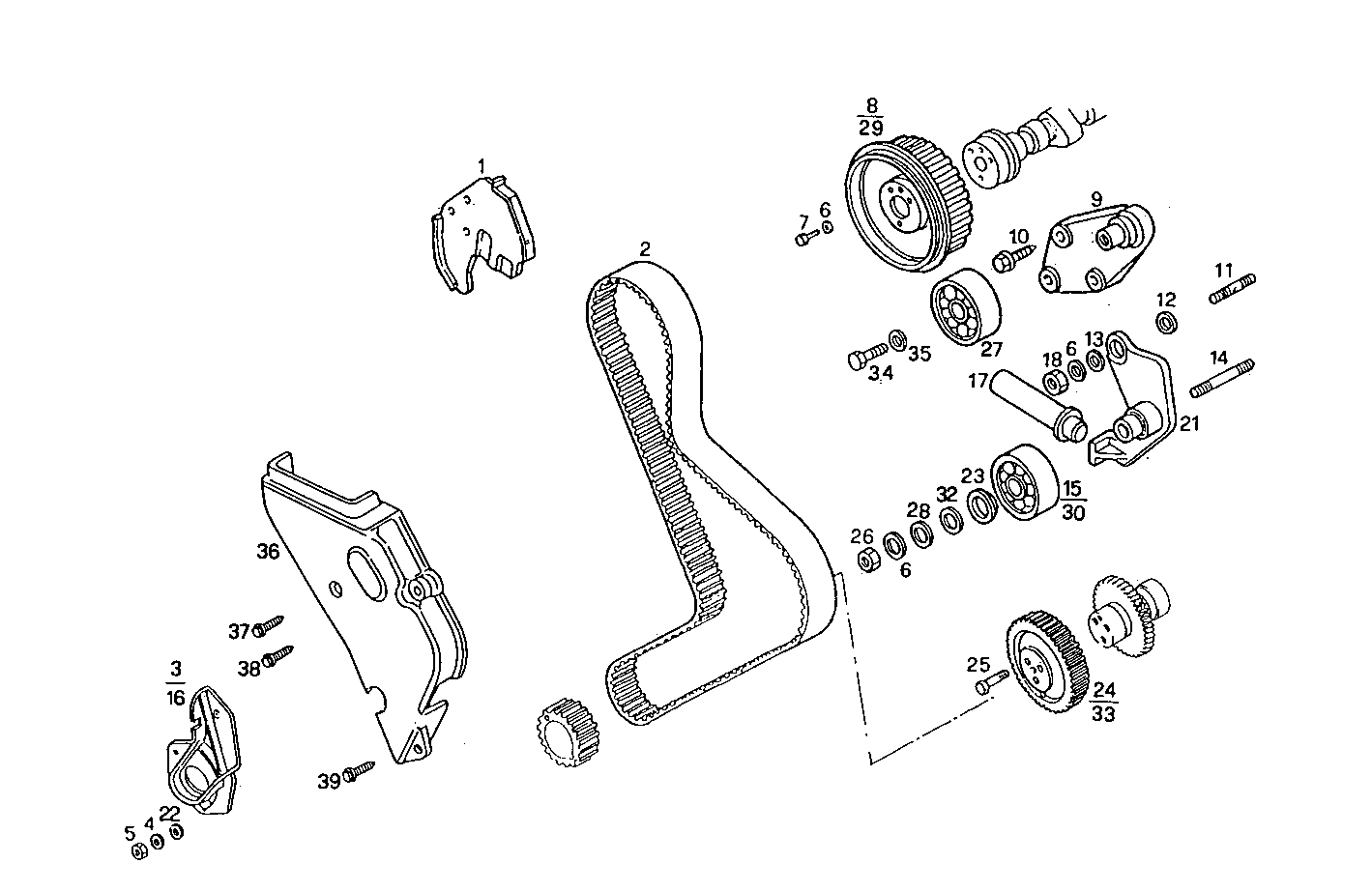

1000.033 GEAR DRIVE [D..] [D..]

Iveco/FPT GEAR DRIVE

Item Part number Description
1 98475847 PROTECTION [from 1815310]
2 98415921 TIMING BELT [from 1307401]
3 98474997 COVER BOTTOM [up to 2263443]
4 17088671 SPRING WASHER Ø6X15 MM SP=1 MM
5 17038221 HEXAGON NUT M10
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 98415206 TIMING INTERM.GEA MIBA
9 98490152 SUPPORT [from 1815310]
10 16586524 HEXAGON BOLT M8X30 MM
11 13517021 STUD M8X25 MM
12 4861928 SPACER [from 1173278]
13 12646721 WASHER Ø8X20 MM
14 7301674 STUD
15 99432547 ENGINE BEARINGS
16 99455320 COVER BOTTOM [from 2263444]
17 4279745 BELT TENSIONER
18 17037931 HEXAGON NUT M8X1,25
21 4849127 SUPPORT [from 1173278]
22 17798374 SPRING WASHER Ø10,2X18,1 MM
23 7300035 SPACER RIV-SKF
24 98415210 INJ.PUMP DRIV.GEA MIBA
25 14337521 LOCKING SCREW M12X1,25X30 MM
27 4740846 ENGINE BEARINGS RIV-SKF
28 17090574 WASHER Ø10X27 MM SP=2,8
29 99434616 TIMING INTERM.GEA SINTERTECH
30 99461357 ENGINE BEARINGS Ø25X67 MM SP=34 MM
32 98479895 SPACING BAR [from 1832166]
33 98434613 GEAR
34 16288424 HEXAGON BOLT M10X1,25X25 MM
35 99447327 SPACER SP=5 MM [from 1832166]
36 99445161 COVER [from 1815310]
37 16586124 HEXAGON BOLT M6X35 MM
38 16585924 HEXAGON BOLT M6X25 MM
39 16597224 HEXAGON BOLT M6X18 MM
