8141Si27.02

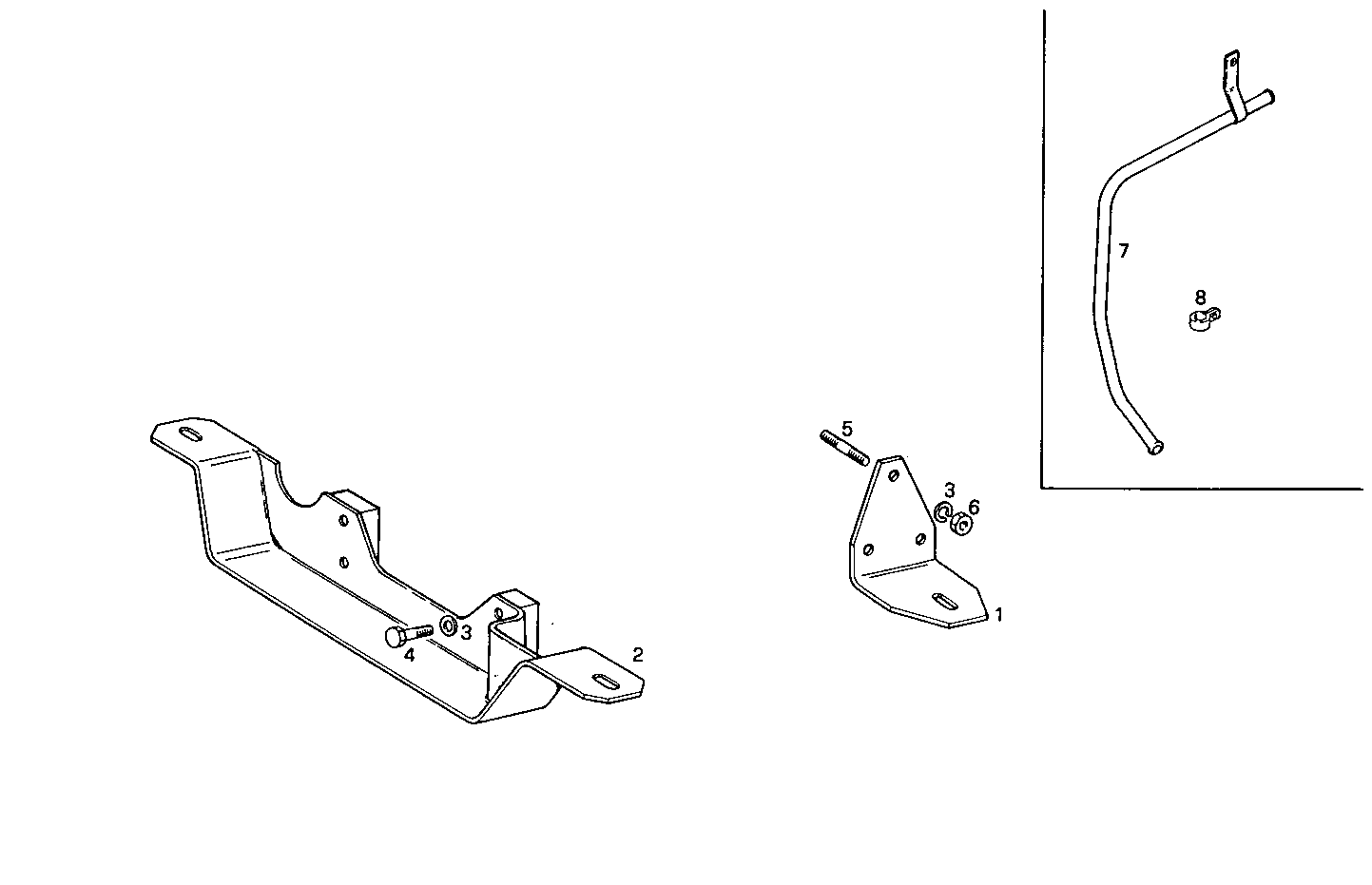

A04000036 RIGID MOUNTING
| Item | Part number | Description |
|---|---|---|
| 1 | 4919262 | SUPPORT REAR |
| 2 | 8101293 | SUPPORT FRONT |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
| 5 | 13546321 | STUD M10X25 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 8021279 | WATER PIPE |
| 8 | 17316790 | CLIP |
