8141Si27.02

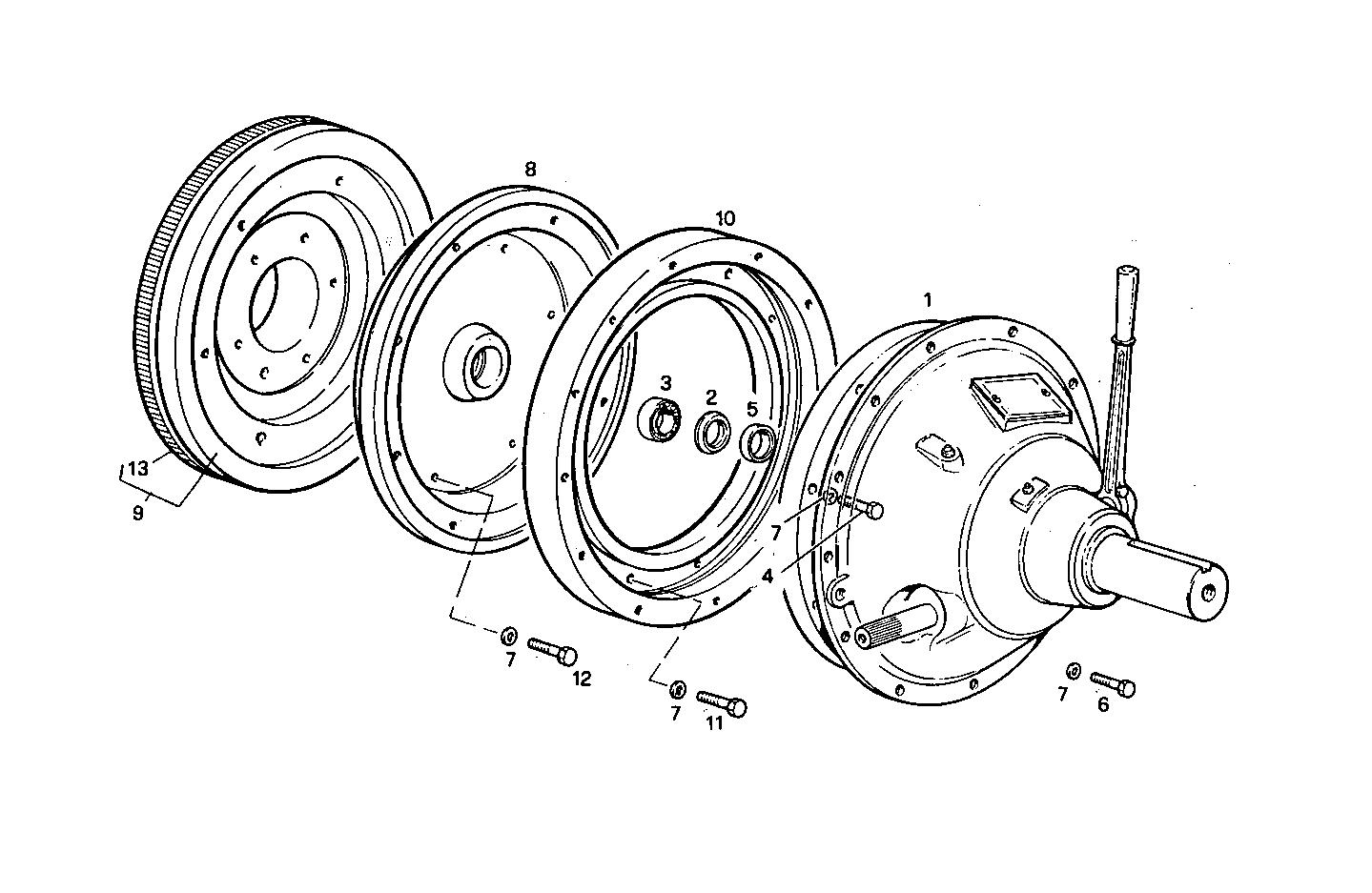

A27200006 INDUSTRIAL CLUTCH - TECHNODRIVE 10''
| Item | Part number | Description |
|---|---|---|
| 1 | 8015230 | CLUTCH BD 130/50 |
| 2 | 4931870 | SPACING BAR [up to 11-92] |
| 3 | 28102110 | DRIVE BEARING |
| 4 | 16608224 | SCREW M10X1,5X55 MM |
| 5 | 4934469 | STOP WASHER [up to 11-92] |
| 6 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8024306 | FLANGE |
| 9 | 8024307 | FLYWHEEL ASSY |
| 10 | 8017146 | FLANGE SAE 4 - SAE 3 |
| 11 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 12 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 13 | 4279804 | RING GEAR |
