8141SRC20.00

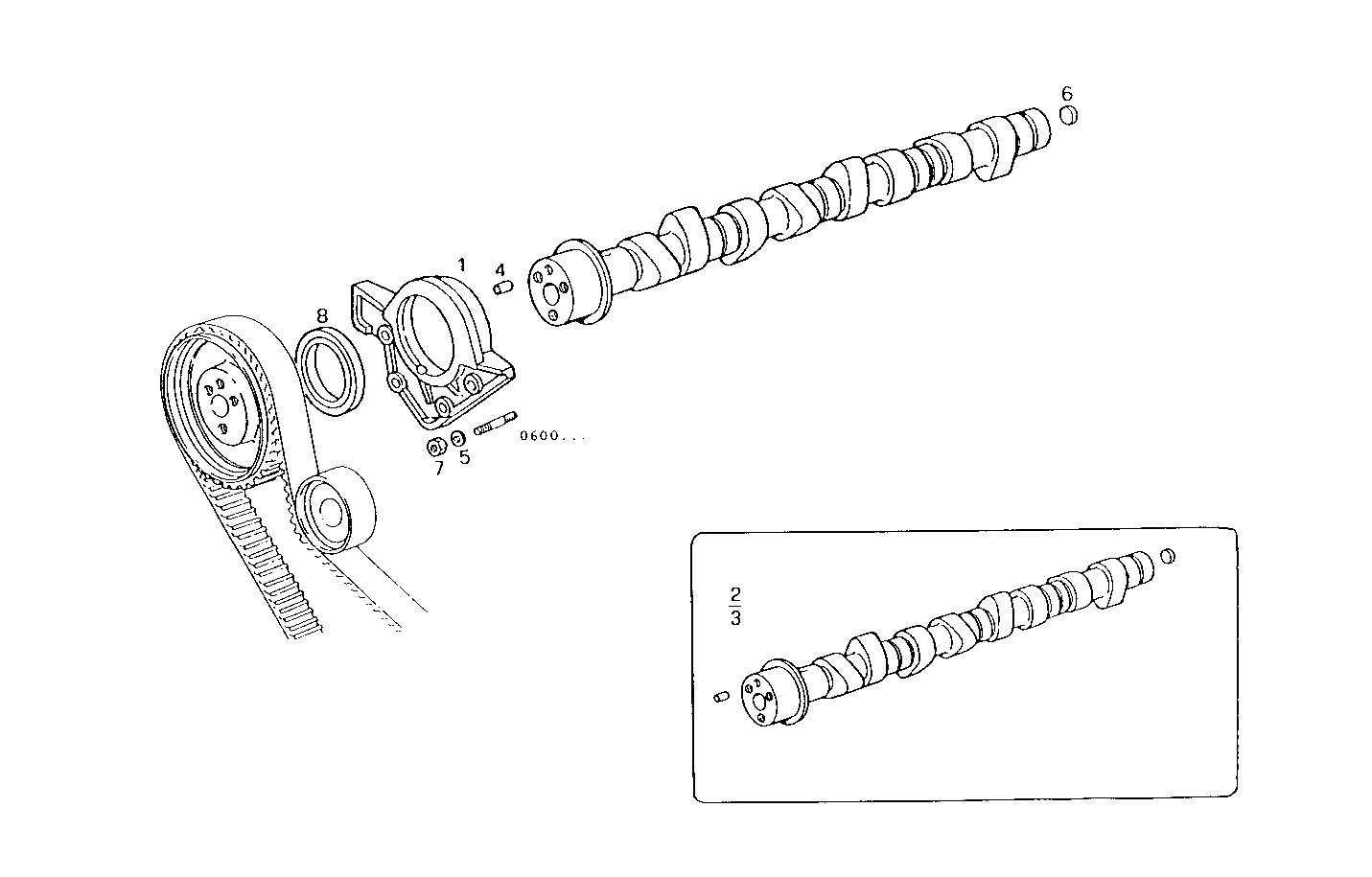

1250.063/01 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 98472303 COVER [from 1815310]
2 98466480 CAMSHAFT ASSY +0,2 MM
3 98427674 CAMSHAFT ASSY
4 10839610 DOWEL PIN Ø8 MM
5 11197779 SPRING WASHER Ø6X12 MM
6 14328301 LOCK PLUG Ø12 MM
7 17037821 HEXAGON NUT M6X1
8 98454041 OIL RETAINER
