8141SRC20.00

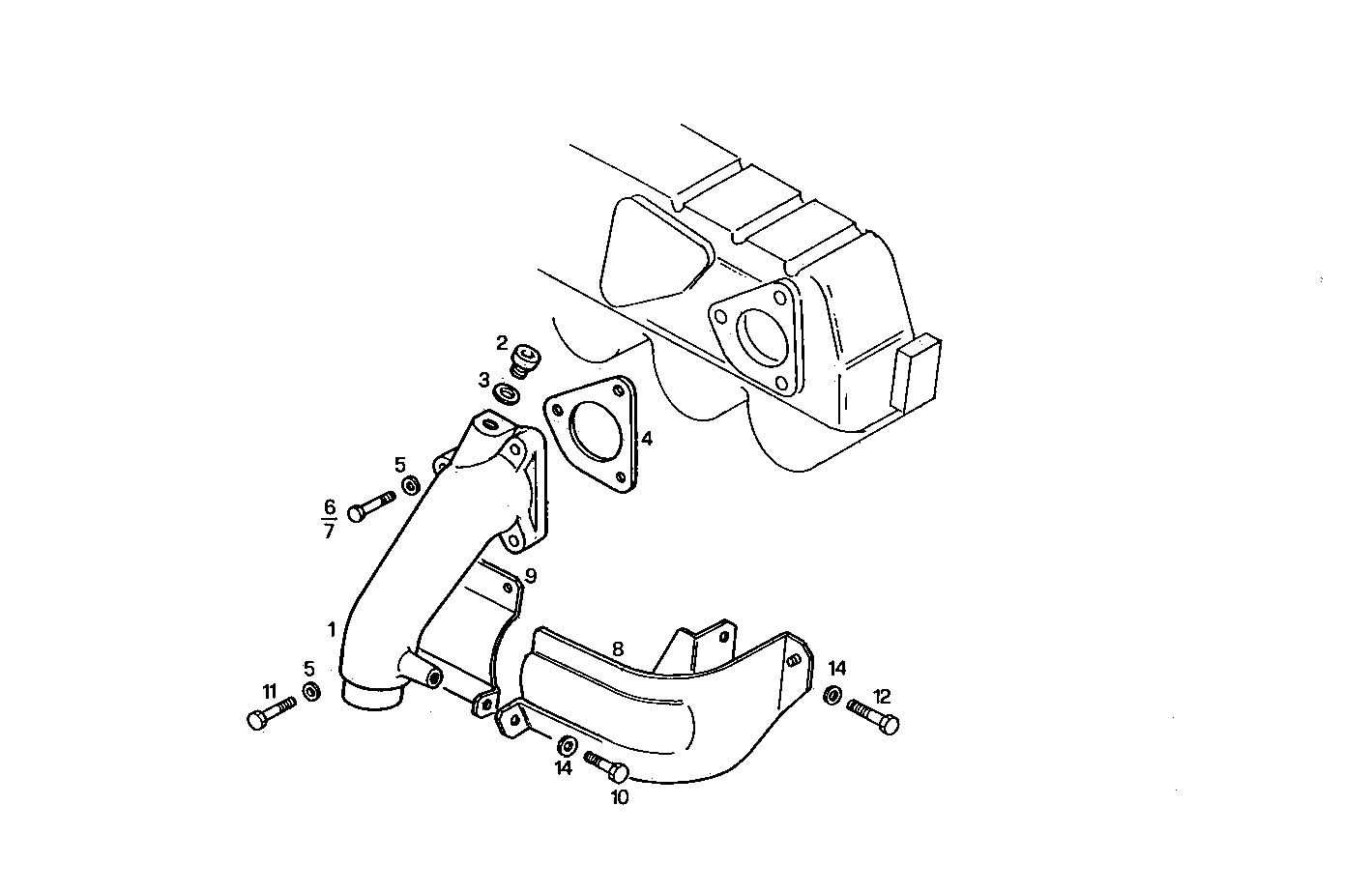

2420.145 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8026810 | SUCTION LINE |
| 2 | 4827588 | PLUG M20 |
| 3 | 10263360 | SEAL GASKET 20x26x1 |
| 4 | 98421281 | GASKET |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16606021 | HEXAGON BOLT M8X45 MM |
| 7 | 16605721 | HEXAGON BOLT M8X30 MM |
| 8 | 7303232 | PROTECTION |
| 9 | 7302056 | PROTECTION |
| 10 | 16043021 | HEXAGON BOLT M8X12 MM |
| 11 | 16603524 | SCREW M6X12 MM (8.8) |
| 12 | 16043124 | SCREW M8X14 MM |
| 14 | 11197774 | WASHER Ø6 MM |
