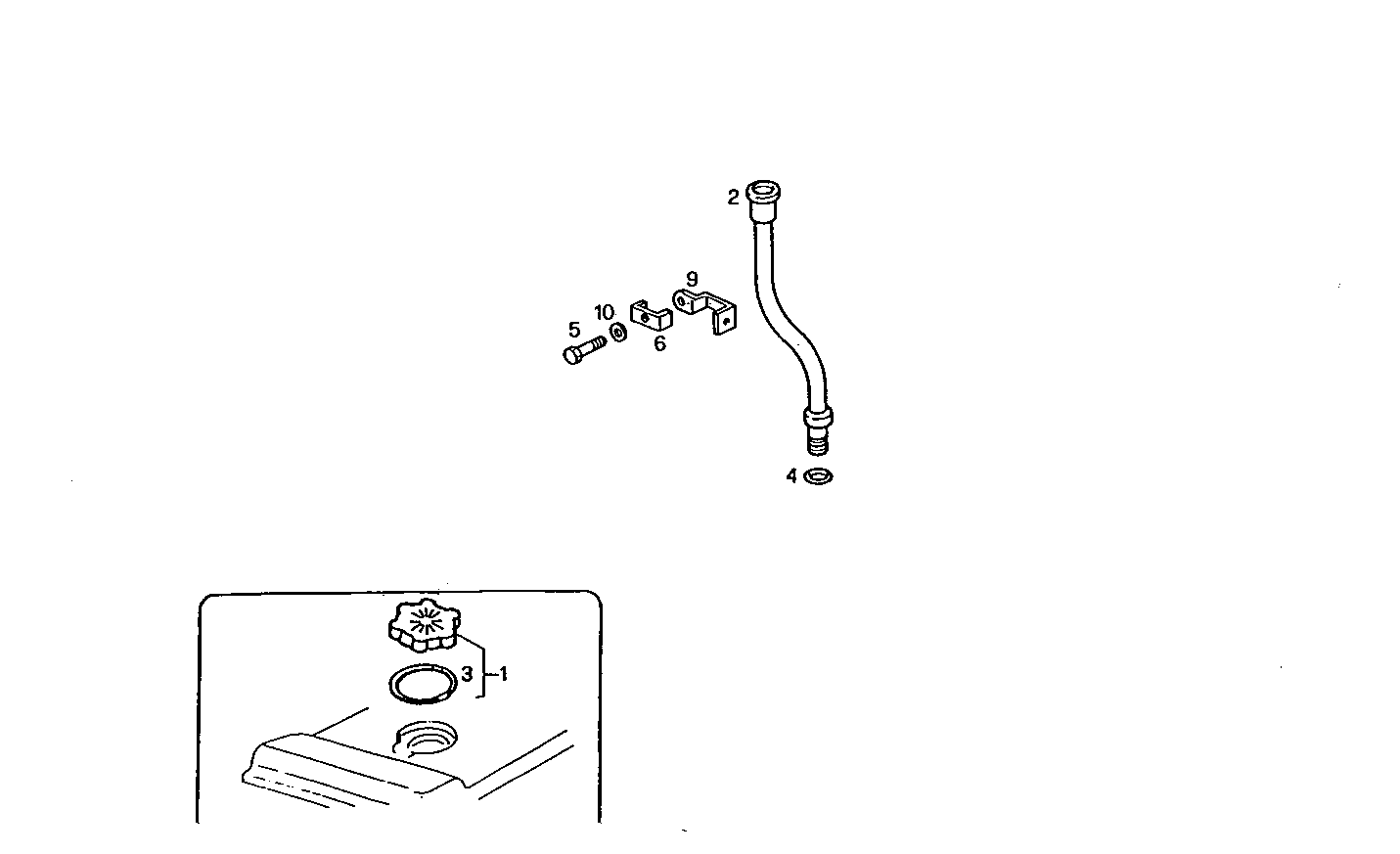

2710.087 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98442027 | OIL FILLER PLUG ASSY |
| 2 | 500318006 | ROD GUIDE |
| 3 | 98412146 | GASKET |
| 4 | 14452981 | O-RING Ø9,25 MM SP=1,78 MM |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 4716870 | RETAINER |
| 9 | 7303600 | RETAINER |
| 10 | 11193874 | WASHER Ø8X16 MM |
