8141SRC20.00

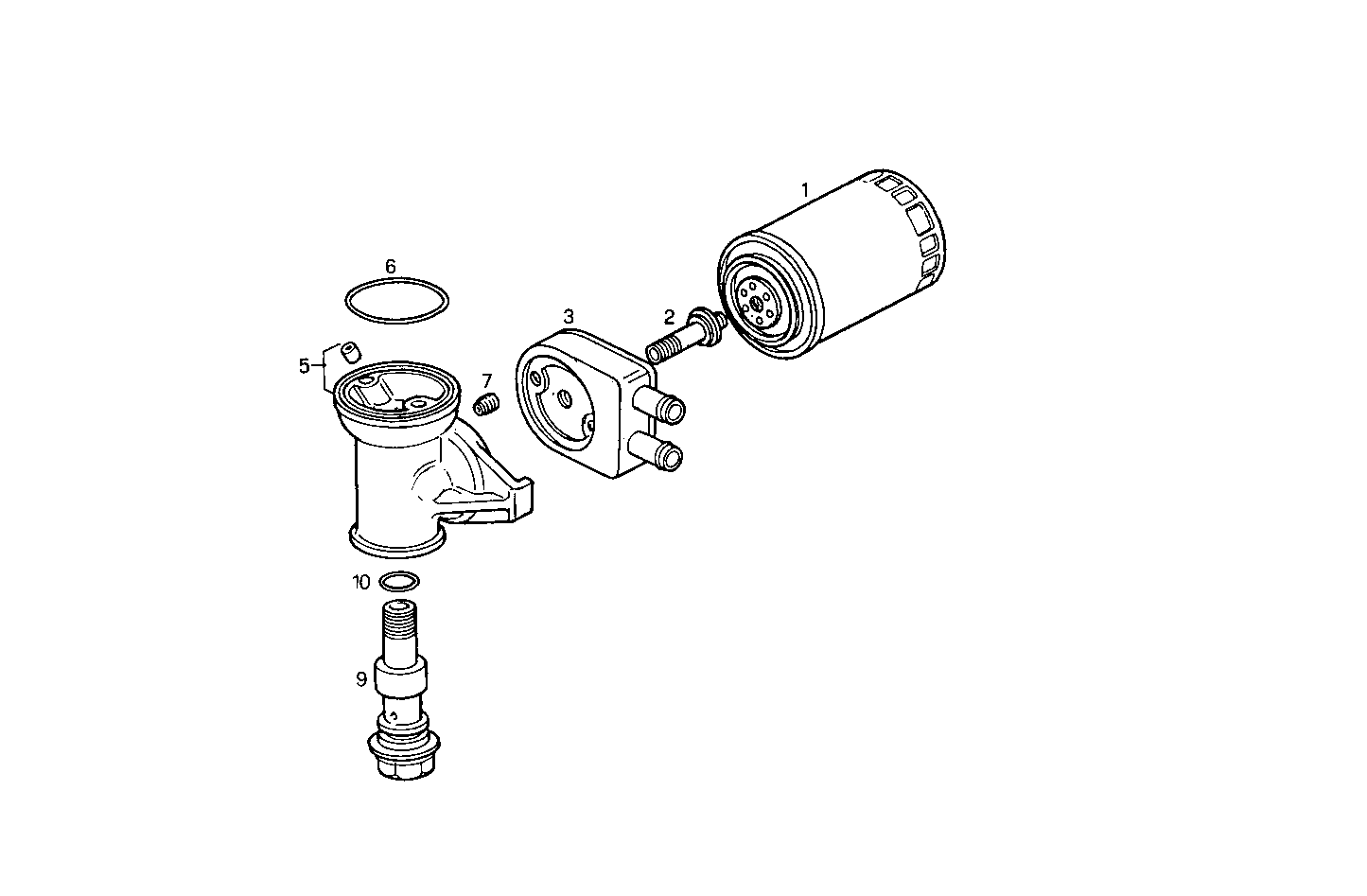

3100.068 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 1903628 | OIL FILTER CARTRIDGE |
| 2 | 500338176 | PIPE SOCKET [UP TO # 3981326] |
| 3 | 4833000 | HEAT EXCHANGER |
| 5 | 98484239 | SUPPORT ASSY |
| 6 | 14464881 | WASHER |
| 7 | 4855259 | DOWEL PIN M8X1,25 |
| 9 | 98460705 | SCREW |
| 10 | 14462981 | O-RING Ø20,2 MM SP=3,5 MM |
| 11 | 504032243 | FLAT ENGINE GASKET [FROM # 3985542] |
| 12 | 504085301 | OIL FILTER SUPPORT ASSY [UP TO # 3981326] |
| 13 | 504102368 | OIL FILTER SUPPORT [FROM # 3981327] |
| 14 | 2994057 | OIL FILTER CARTRIDGE |
| 15 | 504102369 | PIPE SOCKET [FROM # 3981327] |
| 16 | 4737557 | DOWEL PIN |
