8141SRC20.00

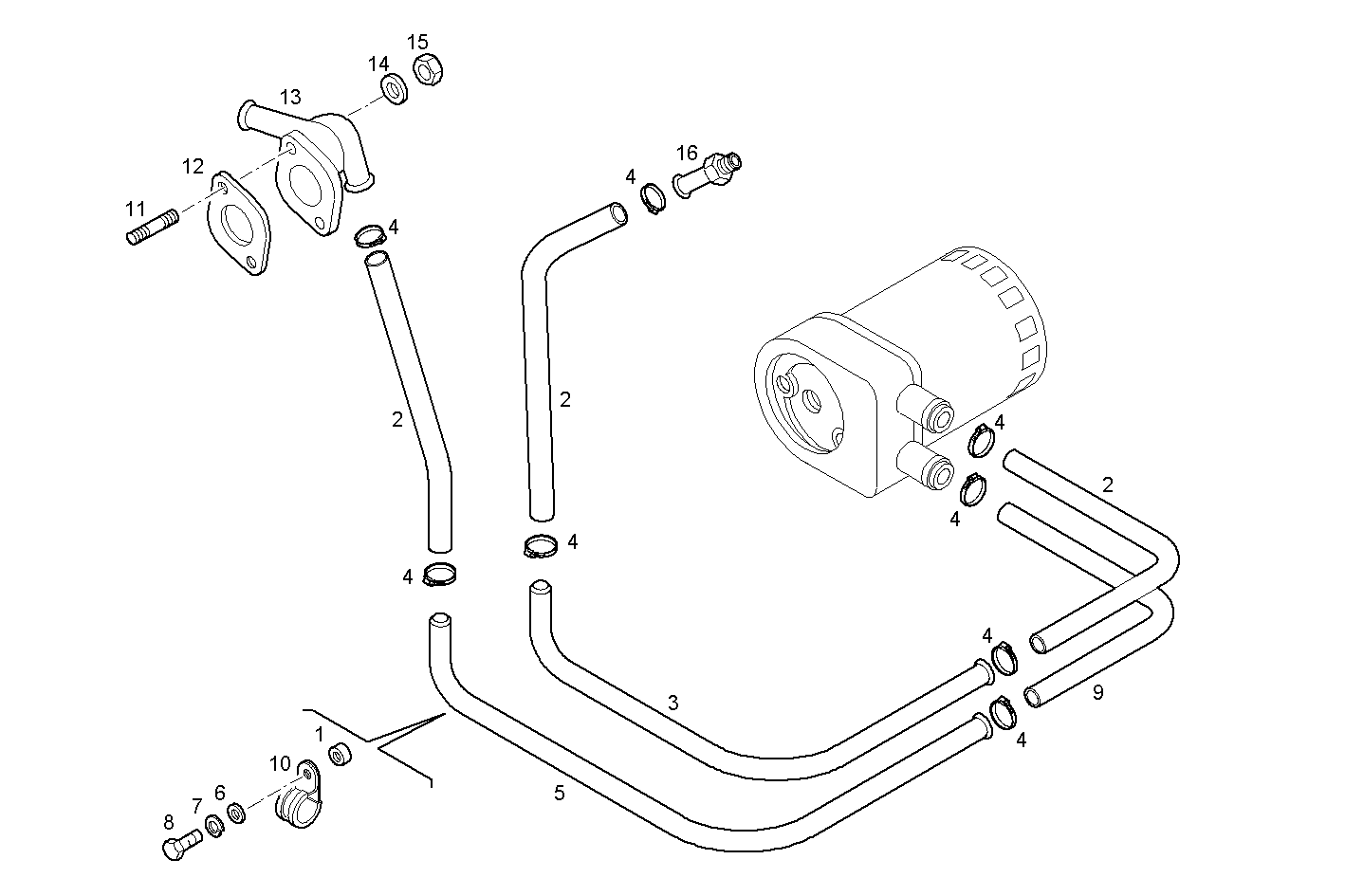

3210.167 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 7303601 | SPACING BAR SP=10,00 MM |
| 2 | 99443116 | RUBBER SLEEVE |
| 3 | 500335654 | WATER PIPE |
| 4 | 98463347 | CLIP Ø18,5-25 MM |
| 5 | 99456322 | WATER PIPE |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 11198374 | SPRING WASHER Ø10X20 MM |
| 8 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 9 | 98470606 | WATER HOSE |
| 10 | 17315190 | FASTENING BRACKET ENGINE |
| 11 | 13543524 | STUD M8X16X25 |
| 12 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
| 13 | 98433830 | WATER PIPE |
| 14 | 11193874 | WASHER Ø8X16 MM |
| 15 | 17037925 | HEXAGON NUT M8X1,25 |
| 16 | 99447076 | CONNECTION PIPE |
