8141SRC20.00

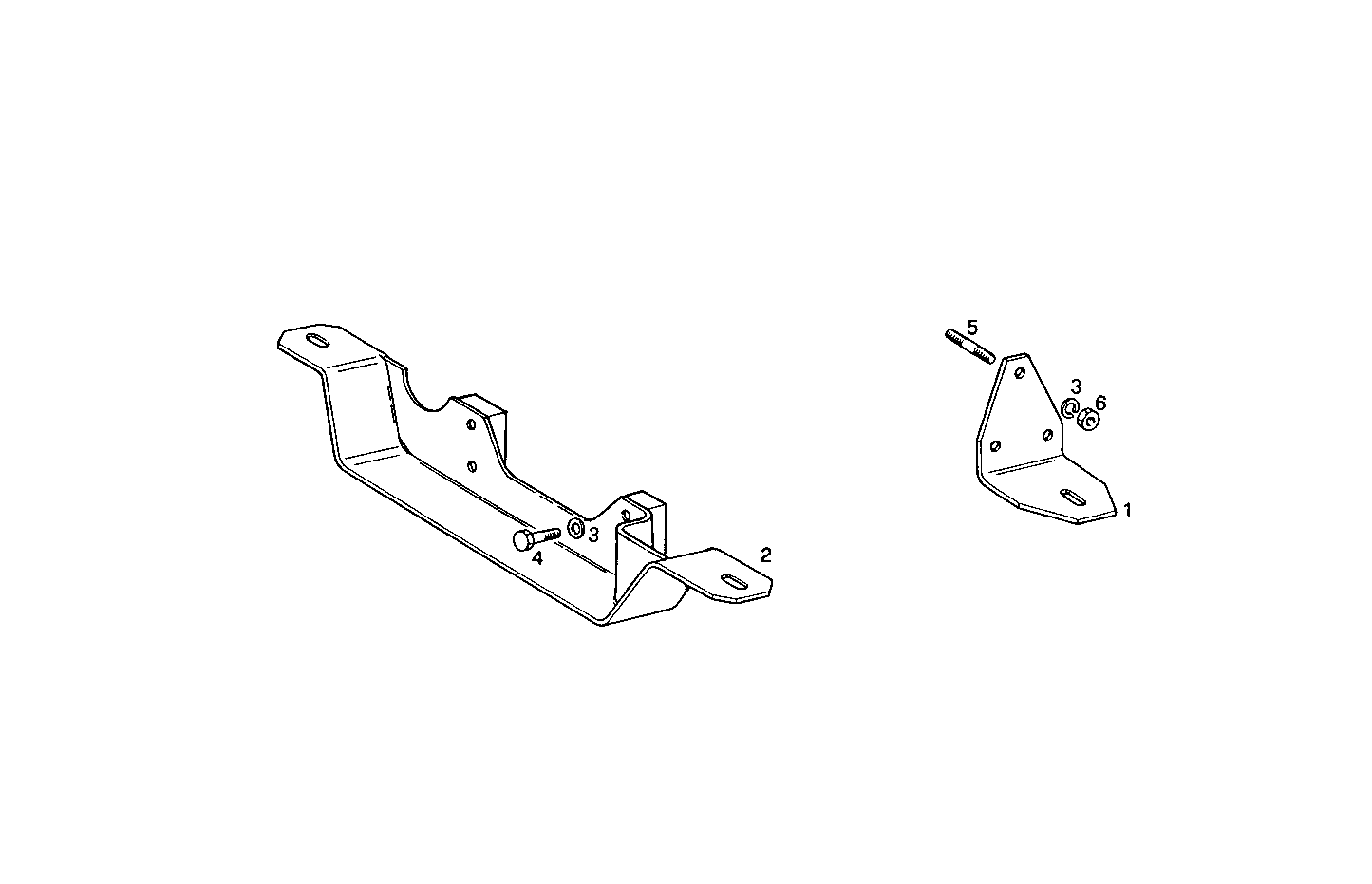

A04000004 RIGID MOUNTING

Iveco/FPT RIGID MOUNTING

Item Part number Description
1 4919262 SUPPORT REAR
2 8018348 SUPPORT FRONT
3 17090174 SPRING WASHER Ø10X20 MM
4 11288021 HEXAGON BOLT M10X1,25X60 MM
5 13546324 STUD M10X20X25
6 17038221 HEXAGON NUT M10
