8141SRC20.00

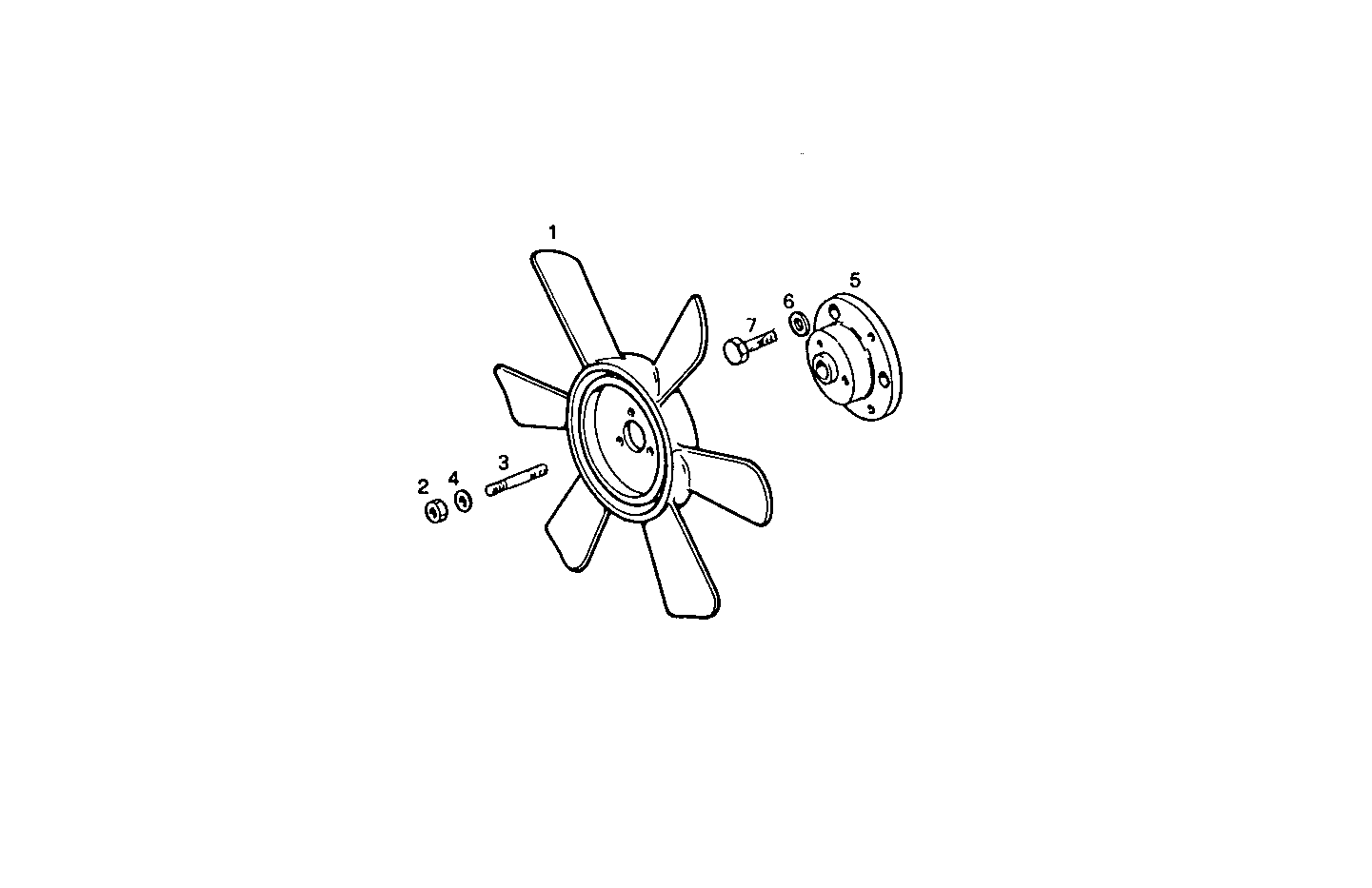

A08070004 PULLER FAN - undersize
| Item | Part number | Description |
|---|---|---|
| 1 | 8586706 | BLOWER Ø378 MM |
| 2 | 17037931 | HEXAGON NUT M8X1,25 |
| 3 | 16746824 | STUD M8X30 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8106837 | HUB |
| 7 | 16043421 | HEXAGON BOLT M8X20 MM |
