8141SRC20.00

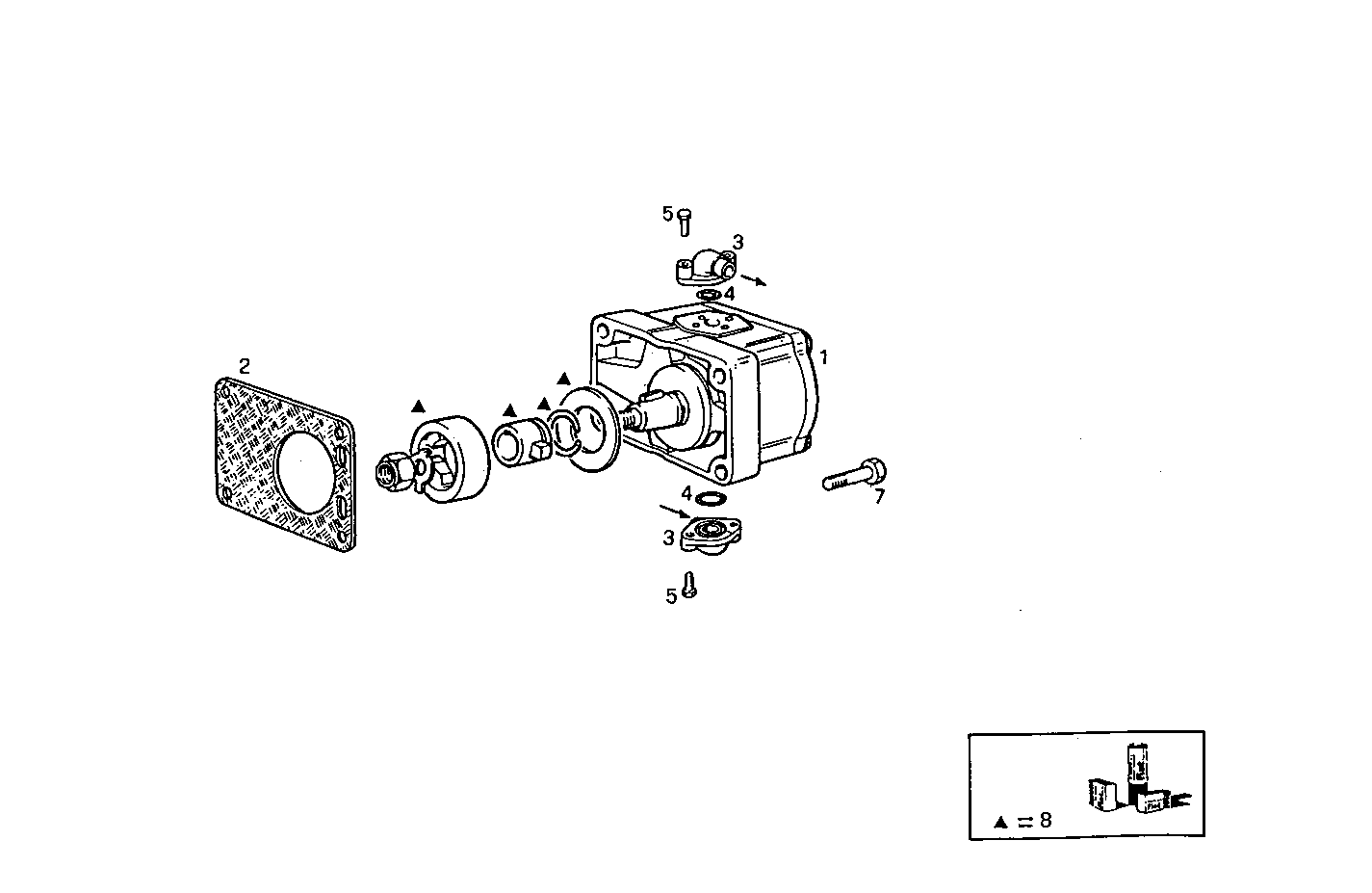

A09060004 HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8026794 | HYDRAULIC PUMP |
| 2 | 500310543 | FLAT ENGINE GASKET |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 17281781 | O-RING Ø15,5 MM SP=2,6 MM |
| 5 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 7 | 16690824 | CYLIND-HEAD SCREW M8X35 MM |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 21 | 4864080 | SCREW CONNECTOR M10X1,25 |
