8141SRC20.00

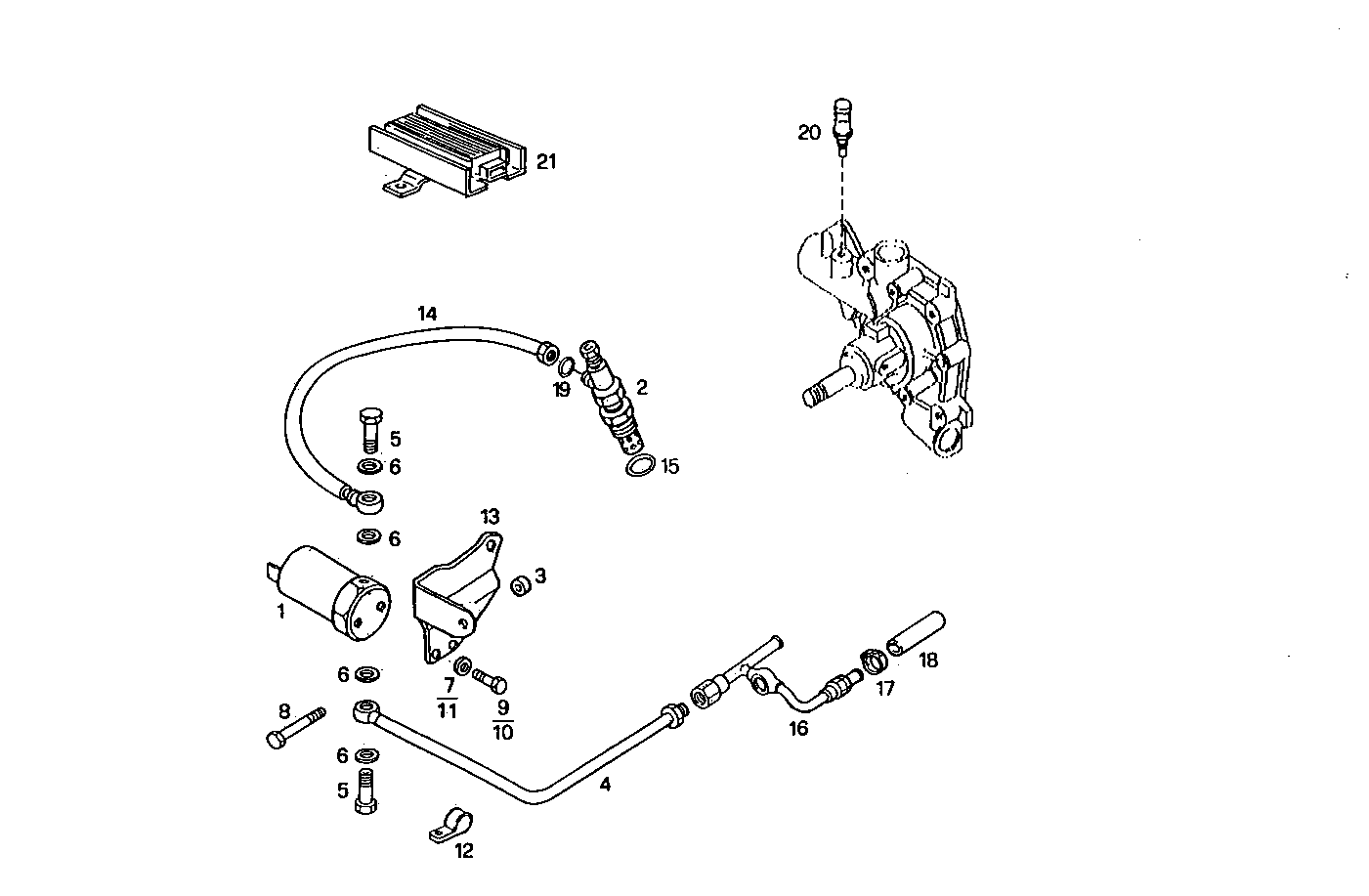

A20100008 THERMOSTARTER - 12V with electronic control unit
| Item | Part number | Description |
|---|---|---|
| 1 | 98494902 | ELECTROVALVE |
| 2 | 99473620 | ELECTROVALVE |
| 3 | 4853864 | SPACING BAR |
| 4 | 4854000 | FUEL LINE |
| 5 | 4864079 | SCREW CONNECTOR M10X1 |
| 6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 7 | 17094504 | WASHER Ø5,3X10 MM |
| 8 | 16606624 | HEXAGON BOLT M8X80 MM |
| 9 | 16602024 | SCREW M5X12 MM (8.8) |
| 10 | 16603524 | SCREW M6X12 MM (8.8) |
| 11 | 17088474 | WASHER Ø6X12 MM |
| 12 | 17314590 | RETAINER Ø6 MM |
| 13 | 4853863 | RETAINER |
| 14 | 8026910 | FUEL LINE |
| 15 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 16 | 8021668 | AIR MANIFOLD |
| 17 | 18087991 | CLIP Ø8/16 MM |
| 18 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 19 | 8024645 | O-RING Ø4 MM |
| 20 | 4857248 | TRANSMITTER |
| 21 | 99484736 | ELECTR.CONTR.UNIT 12V PREHEATER DEVICE |
