8149.03.3791

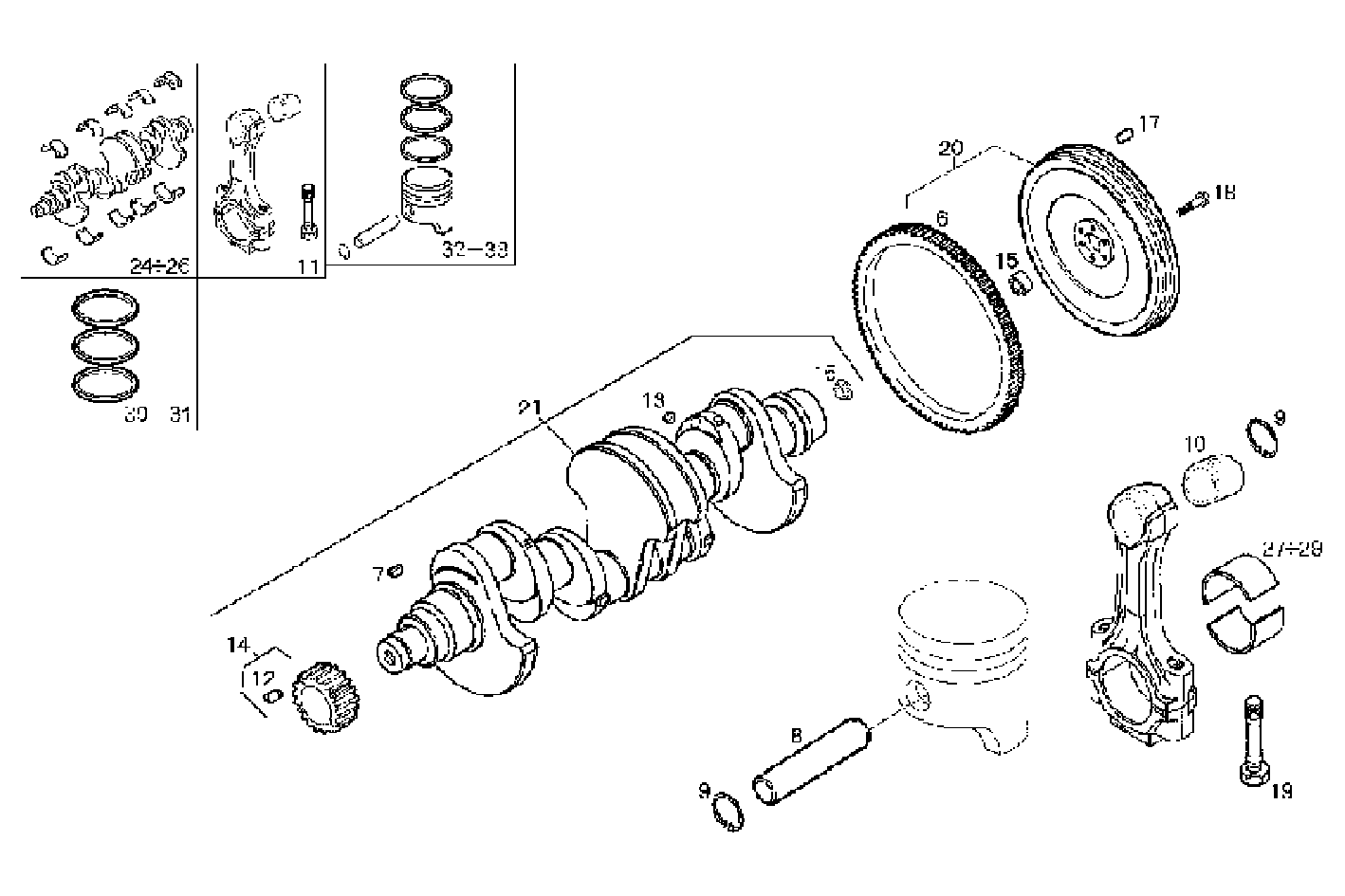

0800.158 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
6 4279804 RING GEAR
7 4655844 KEY
8 98473342 PISTON PIN
9 4758576 SPRING LOCKWASHER
10 500329617 BIG-END BUSH [FROM # 2572280]
11 500352497 CONN.ROD ASSY. ASSY [FROM # 2572280]
12 10332010 PARALLEL PIN
13 14328101 LOCK PLUG Ø8 MM
14 98419244 CAMSHAFT PINION ASSY [from 1307401]
15 98426210 ENGINE BEARINGS Ø15X35 Sp=14 MM
16 98426373 CENTERING RING [from 1307401]
17 98428114 DOWEL PIN
18 98430735 SCREW
19 98460577 BIG-END BOLT
20 500309809 FLYWHEEL
21 500314784 CRANK SHAFT ASSY
24 99473771 MAIN BEARING SET STD
25 99473772 MAIN BEAR.SET -0,254
26 99473773 MAIN BEAR.SET -0,508
27 99474279 CON.ROD BEAR STD.
28 99474280 CON.ROD BEAR-0,254
29 99474281 CON.ROD BEAR-0,508
30 2992046 PISTONRING SET STD
31 2992047 PISTONRING SET+0.4
32 2992454 PISTON ASSY
33 2992455 PISTON ASSY. +0.4
