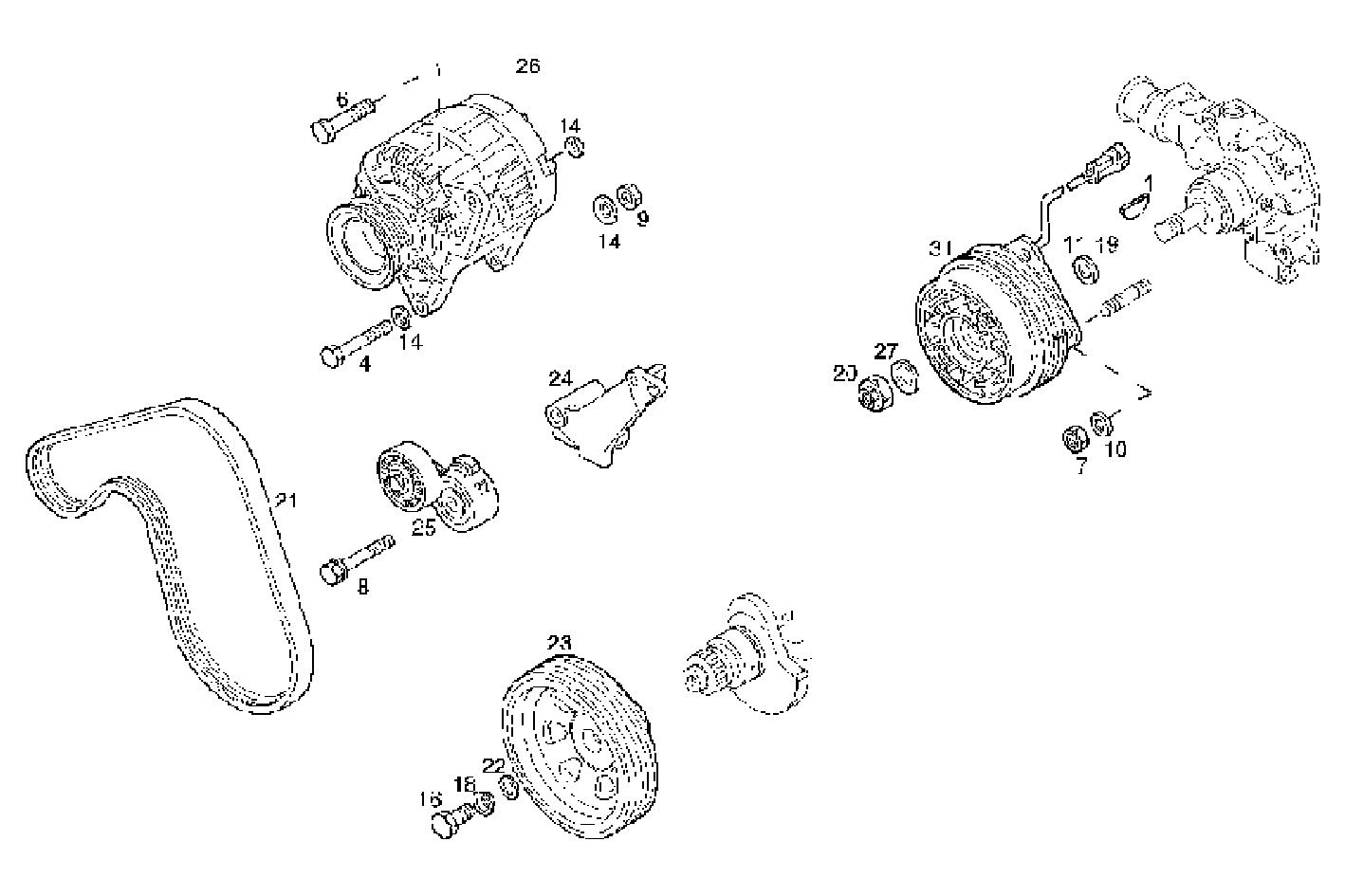

| Item |
Part number |
Description |
|
1 |
10205710 |
KEY 3X5 MM |
|
2 |
16289524 |
HEXAGON BOLT |
|
4 |
15972421 |
HEXAGON BOLT M10X1,25X130 MM |
|
5 |
16288824 |
HEXAGON BOLT M10X45 MM |
|
6 |
10923621 |
HEXAGON BOLT M10X1,25X35 MM |
|
7 |
17037821 |
HEXAGON NUT M6X1 |
|
8 |
16592224 |
HEXAGON BOLT M8X55 MM |
|
9 |
14059421 |
HEXAGON NUT M10X1,25 |
|
10 |
17088474 |
WASHER Ø6X12 MM |
|
11 |
98493779 |
WASHER Ø15X25 SP=4,45 MM |
|
14 |
17095104 |
WASHER Ø10X21X2 MM |
|
16 |
98419203 |
SCREW M20X1,5X58 MM |
|
18 |
98431967 |
WASHER |
|
19 |
98437565 |
WASHER Ø25 MM |
|
20 |
98446151 |
HEXAGON NUT |
|
21 |
500368902 |
WATER PUMP BELT |
|
22 |
98429488 |
SPACING BAR |
|
23 |
99463370 |
PULLEY |
|
24 |
99463360 |
GENERATOR SUPPORT |
|
25 |
500332622 |
BELT TENSIONER |
|
26 |
500317453 |
ALTERNATOR ASSY |
|
27 |
17092071 |
SPRING WASHER Ø14X32 MM SP=4 MM |
|
31 |
99473900 |
WATER PUMP PULLEY |
