8149.03.3795

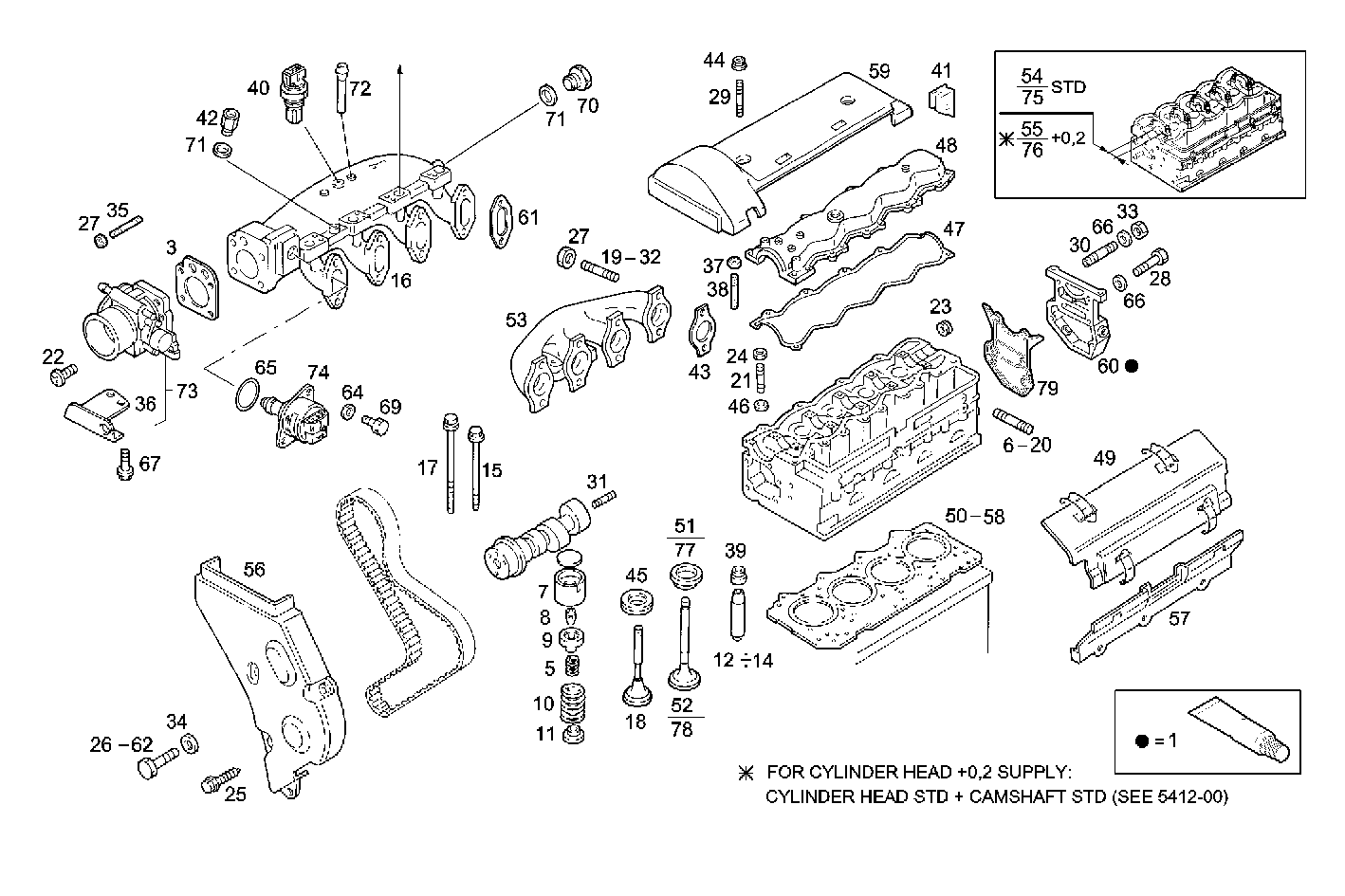

0600.208 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 2992504 ADHESIVE/STICKER LOCTITE
3 500309791 INTAKE ELBOW GASK.
5 4723186 ENGINE VALV.SPRING INNER
6 16729324 STUD M8X12X20 MM
7 4733350 VALVE TAPPET
8 4733465 VALVE CONE
9 4734531 SPRING CAP TOP
10 4734533 ENGINE VALV.SPRING OUTER
11 4749396 SPRING CAP BOTTOM
12 4749397 VALVE GUIDE
13 4749398 VALVE GUIDE +0.10
14 4749399 VALVE GUIDE +0,2
15 99442951 CYL.HEAD STUD M12X1,25X90 MM
16 504086181 INTAKE ELBOW
17 4854648 CYL.HEAD STUD M12X1,25X163 MM
18 98468338 INLET VALVE
19 16746624 STUD M8X20 MM (8.8)
20 13543224 STUD M8X16X18 MM
21 13543924 STUD M8X16X45 MM
22 500343060 HEXAGON BOLT
23 14326001 THREADED PLUG M10X1,25
24 99486342 HEXAGON NUT M8X1,25
25 16597225 HEXAGON BOLT M6X18 MM
26 16585925 HEXAGON BOLT M6X25 MM
27 99486343 HEXAGON NUT M8X1,25
28 16605624 HEXAGON BOLT M8X25 MM (8.8)
29 16727624 STUD M6X16 MM
30 16729724 STUD M8X40 MM
31 16745124 STUD M6X25 MM
32 16746734 STUD M8X25 MM
33 17037931 HEXAGON NUT M8X1,25
34 12647724 WASHER Ø6X21 MM SP=1 MM
35 4859827 STUD
36 500340518 RETAINER
37 17152725 NUT M6
38 17364724 STUD M6X15X25 MM
39 40101573 CAP
40 500309797 TRANSMITTER
41 500326627 CHOCK
42 500340467 BULKHEAD STR.COUPL
43 98434020 EXH. MANIFOLD GKT
44 98439382 NUT
45 98487340 VALVE SEAT STD. BRICO
46 98466492 DOWEL PIN [from 1671414]
47 500388381 HEAD COVER GASKET
48 99462587 CYL. HEAD COVER
49 99471006 SIDE COVER
50 99432354 CYL.HEAD GASKET SP=1,2 MM
51 500309787 VALVE SEAT STD. [UP TO # 3456314]
52 99432837 EXHAUST VALVE
53 500309750 EXHAUST MANIFOLD
54 500374383 CYLINDER HEAD ASSY
55 500330029 CYLINDER HEAD [UP TO # 3456314]
56 504010963 COVER
57 500316894 SIDE COVER
58 99460983 CYL.HEAD GASKET SP=1,4 MM
59 99471017 CYL. HEAD COVER
60 500326577 COVER
61 98425767 INTAKE ELBOW GASK. SP=0,8 MM
62 99485223 HEXAGON BOLT M6X70 MM
64 17094504 WASHER Ø5,3X10 MM
65 17281980 O-RING
66 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
67 16677735 HEXAGON BOLT M12X25 MM
69 16602024 SCREW M5X12 MM (8.8)
70 16992511 THREADED PLUG M18X1,5
71 16508360 WASHER 18x22x1,5
72 500330891 CONNECTION PIPE
73 2991664 VALVE HOUSING
74 500309796 GAS ENGINE ACTUATOR
76 500374385 CYLINDER HEAD + 0.2 MM [UP TO #]
77 500359737 VALVE SEAT STD.
78 500327442 EXHAUST VALVE
79 500376326 FLAT ENGINE GASKET
