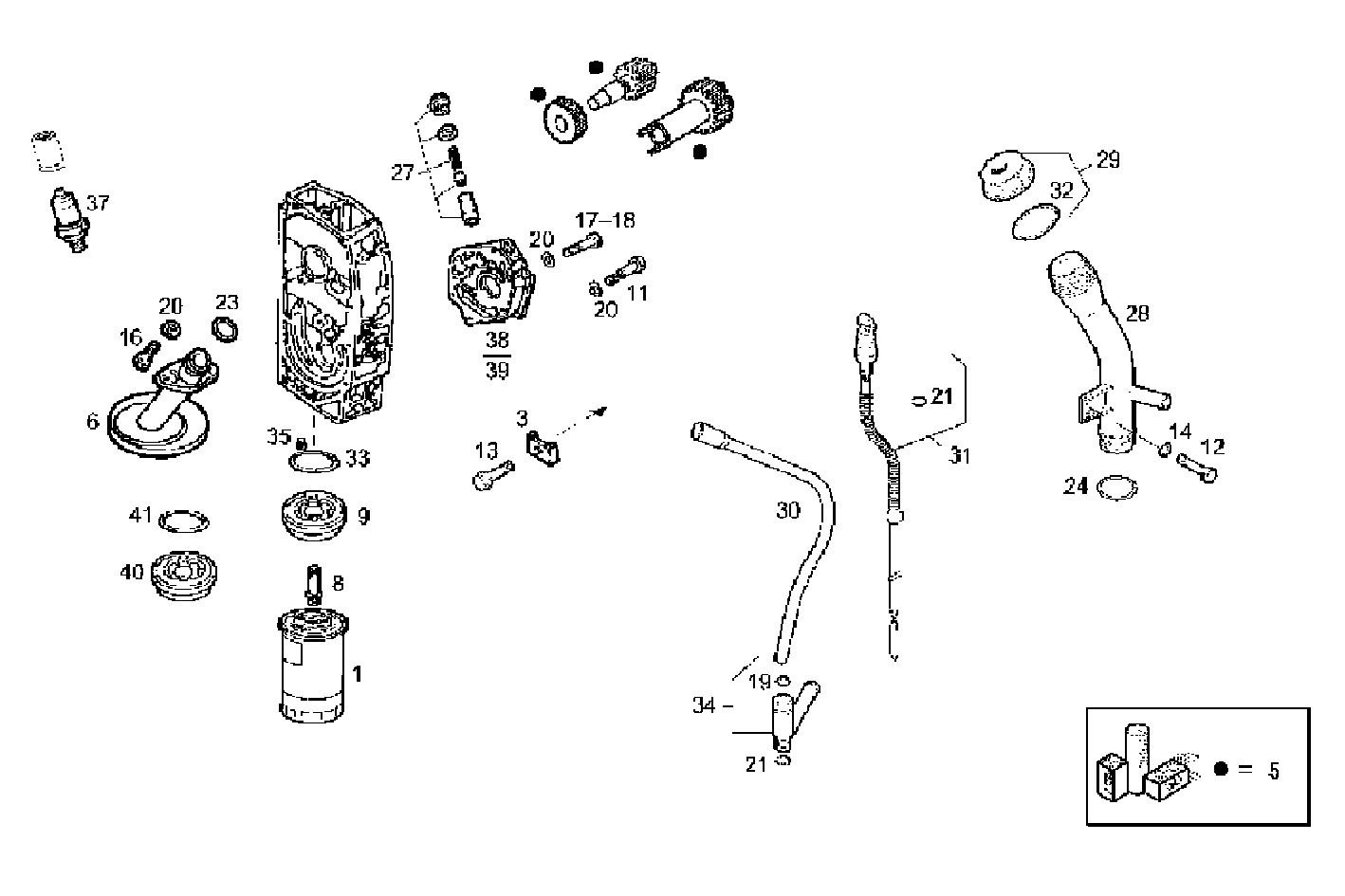

| Item |
Part number |
Description |
|
1 |
2994057 |
OIL FILTER CARTRIDGE |
|
3 |
4716870 |
RETAINER |
|
5 |
2992322 |
KIT-OIL PUMP GEARS |
|
6 |
4859872 |
SUCTION STRAINER |
|
8 |
7301914 |
THREADED UNION M20X1,5 - 3/4" |
|
9 |
500334643 |
OIL FILTER SUPPORT [UP TO # 3938541] |
|
11 |
16043724 |
HEXAGON BOLT M8X28 MM (8.8) |
|
12 |
16585624 |
HEXAGON BOLT M6X12 MM |
|
13 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
14 |
17094724 |
WASHER Ø6X12 MM |
|
16 |
16605534 |
HEXAGON BOLT M8X20 MM (10.9) |
|
17 |
16605934 |
HEXAGON BOLT M8X40 MM (10.9) |
|
18 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
19 |
17281581 |
O-RING Ø12,37X2,62 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
17277981 |
O-RING 1,78x9,25 |
|
23 |
17282281 |
O-RING 2,62x23,47 |
|
24 |
17282581 |
O-RING Ø28,24 MM SP=2,62 MM |
|
27 |
99438751 |
OIL PUMP VALVE ASSY |
|
28 |
99470999 |
OIL FILLER PIPE |
|
29 |
500301568 |
OIL FILLER PLUG ASSY |
|
30 |
500326576 |
OIL LEVEL TUBE |
|
31 |
500370236 |
OIL DIPSTICK ASSY |
|
32 |
17295480 |
O-RING 5,33x37,46 |
|
33 |
17290181 |
O-RING Ø59,92 MM SP=3,53 MM |
|
34 |
99441398 |
PIPE SOCKET ASSY |
|
35 |
4737557 |
DOWEL PIN |
|
37 |
98469129 |
PRESSURE SWITCH |
|
38 |
500334155 |
COVER [from 2689495] |
|
39 |
500376007 |
COVER [from 2860814] |
|
40 |
504084900 |
OIL FILTER SUPPORT [FROM # 3985542] |
|
41 |
504032243 |
FLAT ENGINE GASKET [FROM # 3985542] |
