8149.03.3795

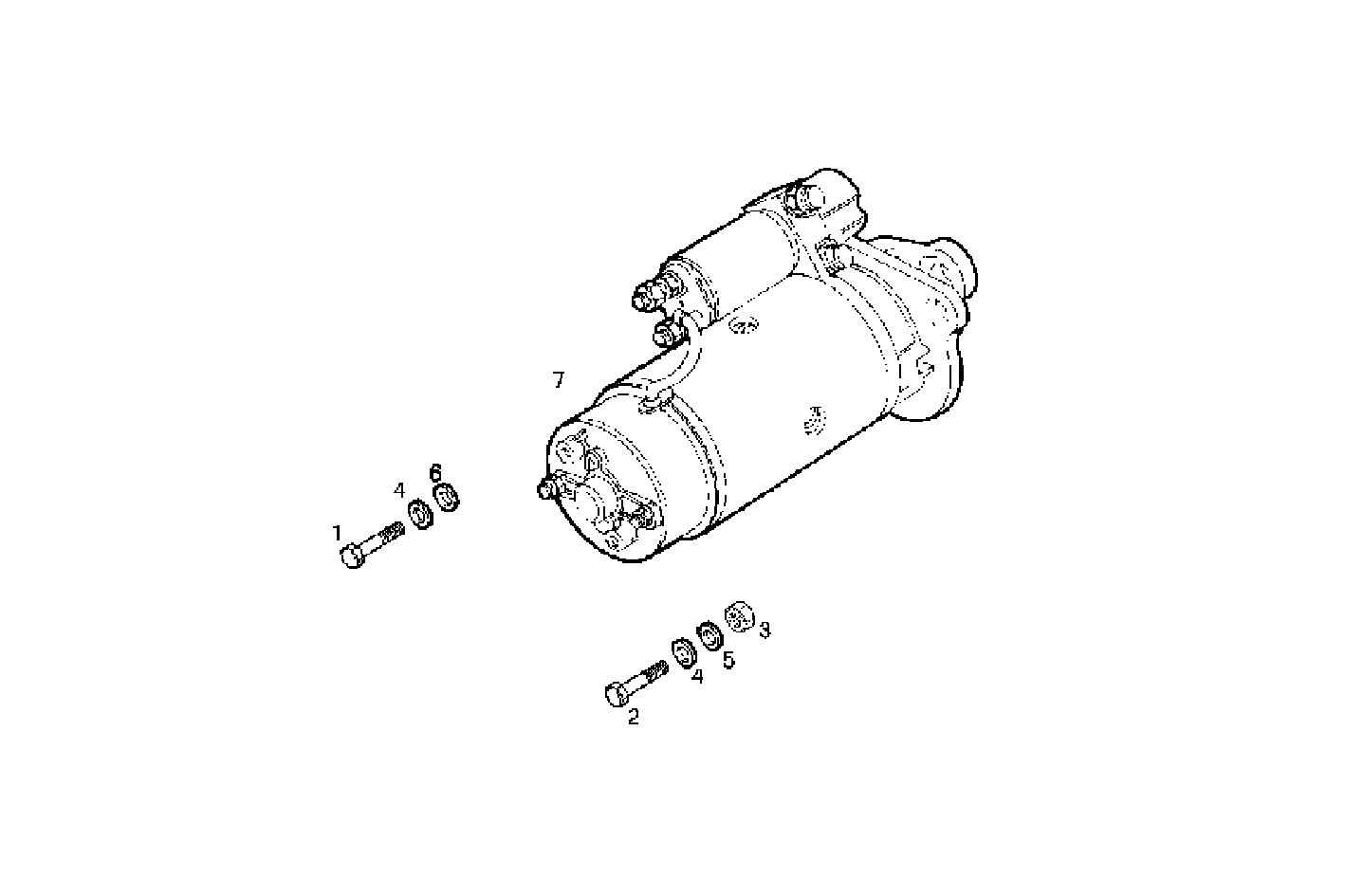

3600.140 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16608024 | HEXAGON BOLT M10X1,25X45 MM |
| 2 | 16608324 | HEXAGON BOLT M10X1,5X60 MM |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17095014 | WASHER Ø10X18 MM |
| 6 | 17095125 | WASHER |
| 7 | 99451753 | STARTER MOTOR ASSY BOSCH |
